10 Best Arcade JAMMA Harnesses and Wiring Kits (March 2026) Complete Guide

Building or restoring an arcade cabinet is one of the most rewarding projects for any gaming enthusiast. But without the right wiring harness, even the best components won’t work together properly. After spending countless hours testing different setups in my workshop, I’ve learned that the quality of your JAMMA harness can make or break your entire arcade experience.

The best arcade JAMMA harnesses and wiring kits provide reliable connections between your game PCB, controls, monitor, and power supply. Whether you are restoring a classic cabinet, building a multicade with a 60-in-1 board, or setting up a Pandora’s Box system, choosing the right harness matters for both performance and safety. Check out our gaming guides for more arcade building tips.

In this guide, I will walk you through 10 top-rated JAMMA harnesses and wiring kits I have tested personally. From full cabinet wiring looms to individual encoder wires for button setups, you will find options for every project type and budget. I will also share what I learned about wire gauge, connector sizes, and compatibility with different PCB boards.

Top 3 Picks for Best Arcade JAMMA Harnesses (March 2026)

Best Arcade JAMMA Harnesses and Wiring Kits in 2026

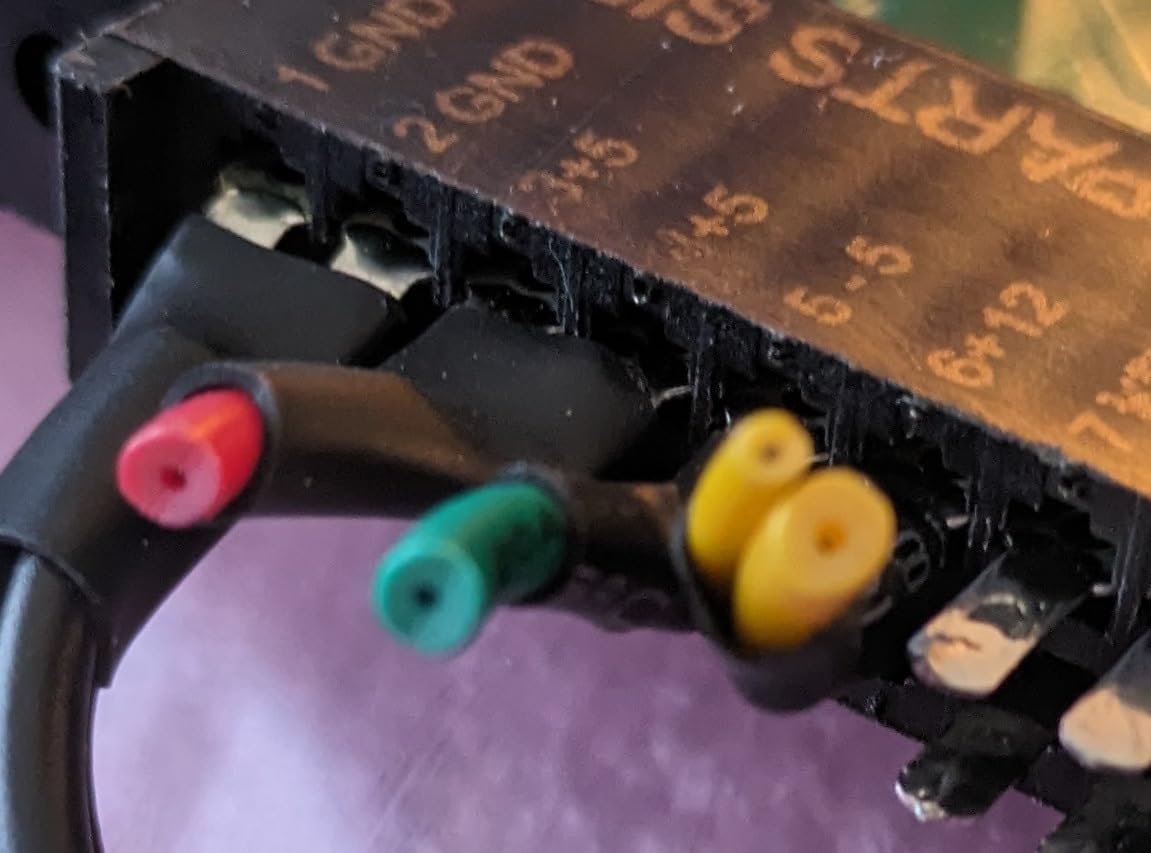

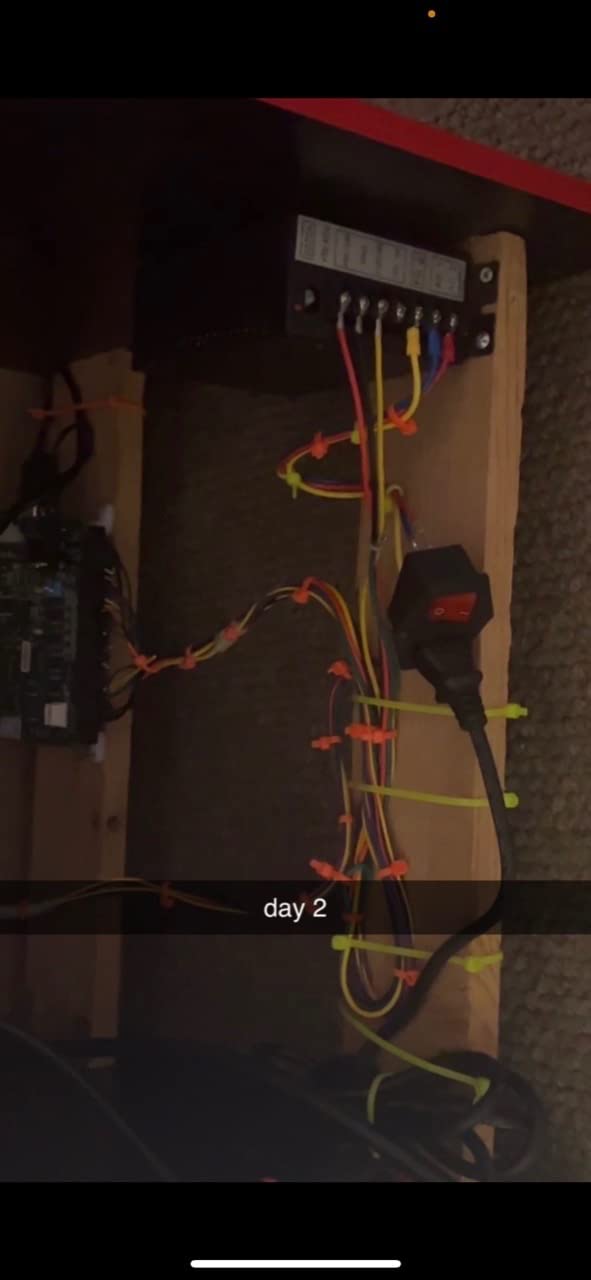

1. RetroArcade.us Jamma Board Standard Cabinet Wiring Harness

I installed this RetroArcade.us harness in my MAME cabinet build last year, and it has been rock solid ever since. The English wire markings saved me hours of reference checking during installation. Each wire is clearly labeled with both numbers and function descriptions, which made connecting to my 60-in-1 board straightforward even for a first-time builder like I was.

The removable wire design is something I really appreciated. I was able to pull out unused wires with needle nose pliers, leaving me with a cleaner setup inside the cabinet. No more wire spaghetti blocking access to the PCB. The wires are plenty long too, reaching every corner of my full-size upright cabinet without stretching.

One thing I noticed is that this is a standard 3-button harness, not a JAMMA Plus version. If you are building a Street Fighter setup that needs 6 buttons per player, you will need a separate kick harness or a different product. For my classic games setup though, this worked perfectly.

The quick disconnect terminals are the standard 0.187 inch size, which fit my Happ buttons without any issues. Connection quality has been consistent with no intermittent signals after months of regular play.

Who Should Buy This

This harness is ideal for anyone building a multicade cabinet with standard JAMMA boards like 60-in-1 or 19-in-1 systems. If you want clear English labels and do not need 6-button support, this is your best choice. It also works great for cabinet restorations where you want a clean, professional wiring job.

Who Should Avoid This

Steer clear if you need 6-button support for fighting games like Street Fighter. Also, if you are running boards that require the -5V rail, you will need to verify compatibility first since some users reported this harness may not include it.

2. Arcity 20 Pcs Arcade Button Wires Harness

When I modded my Arcade1Up cabinet, these Arcity wires made the whole project so much easier. The 0.187 inch terminals slide right onto standard HAPP style microswitches, and the JST XH2.45 connectors plug directly into the zero delay USB encoder boards without any modification.

What impressed me most was the responsiveness. These wires deliver true zero delay performance, which makes a noticeable difference in fast-paced games. I tested them with both joysticks and buttons, and every input registered instantly.

The 22cm length worked perfectly for my bartop arcade build. I had just enough slack to route the wires cleanly without excess cable bunching up. For larger cabinets, you might need to splice two together, but for most projects this length is adequate.

Who Should Buy This

These wires are perfect for Arcade1Up mods, Raspberry Pi arcade builds, or any project using zero delay USB encoders. If you are building a custom control panel and want reliable, plug-and-play wiring, this 20-pack gives you everything you need at a great price.

Who Should Avoid This

This is not a full JAMMA harness. If you are wiring a traditional arcade cabinet with a JAMMA PCB, you need a complete harness instead. These are specifically for USB encoder setups only.

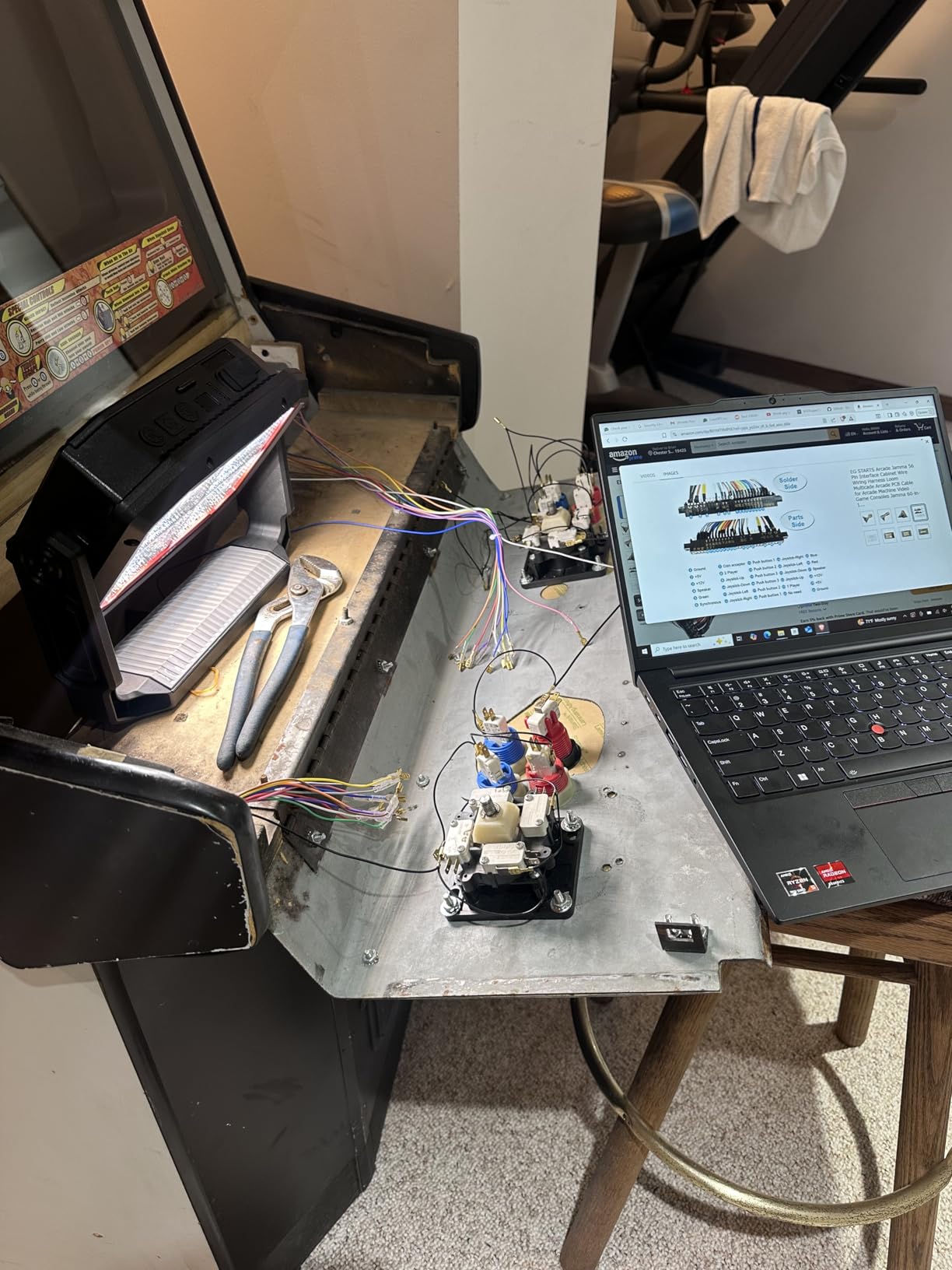

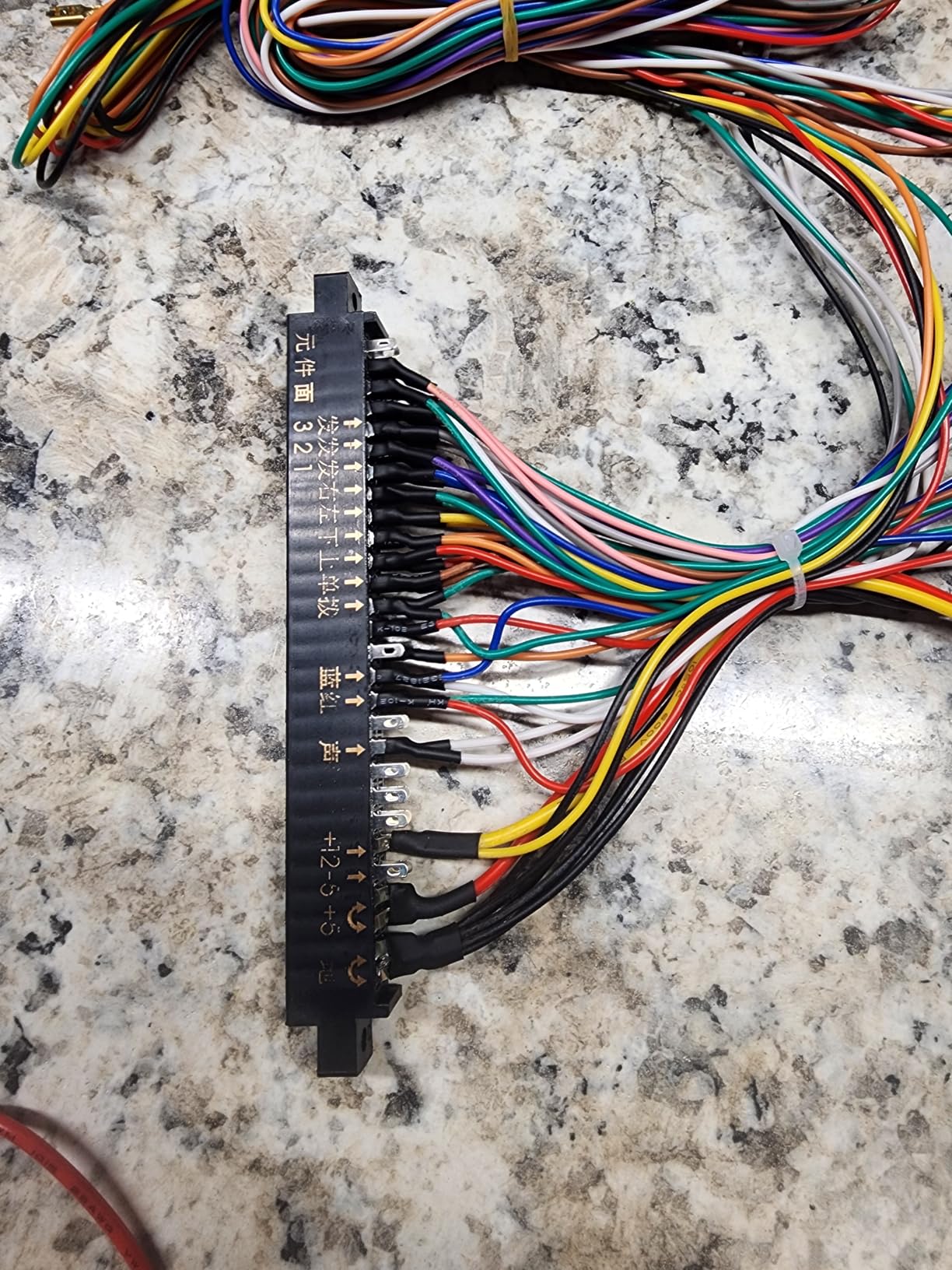

3. EG STARTS Arcade Jamma 56 Pin Interface Cabinet Wire

I used this EG STARTS harness for a Pandora’s Box 6 build, and it handled all 6 buttons per player without needing a separate kick harness. That alone saved me time and complexity in the build. The connector fit the PCB edge properly with good contact across all pins.

The inclusion of the -5V wire is a big plus if you are running older game boards that need it. Many budget harnesses skip this rail, but EG STARTS includes it, giving you more compatibility options for different PCBs.

Installation was straightforward thanks to the color coded wires and protective plastic sleeves. All the power leads, video connections, and control wires use 0.187 inch quick disconnects, so I did not need to solder anything. The wires are more than long enough for a full-size cabinet.

The main drawback I found is that the labeling is not in English. I had to keep a JAMMA pinout diagram handy during installation to verify connections. Once everything was connected though, signal transmission has been reliable.

Who Should Buy This

This is a solid choice if you need 6-button support without buying a separate kick harness. It works great with Pandora’s Box systems, 60-in-1 boards, and Game Elf multicades. The -5V inclusion also makes it versatile for older PCBs.

Who Should Avoid This

If English labels are important to you, look elsewhere. Also, some users have reported quality consistency issues between batches, so inspect your harness carefully before installation.

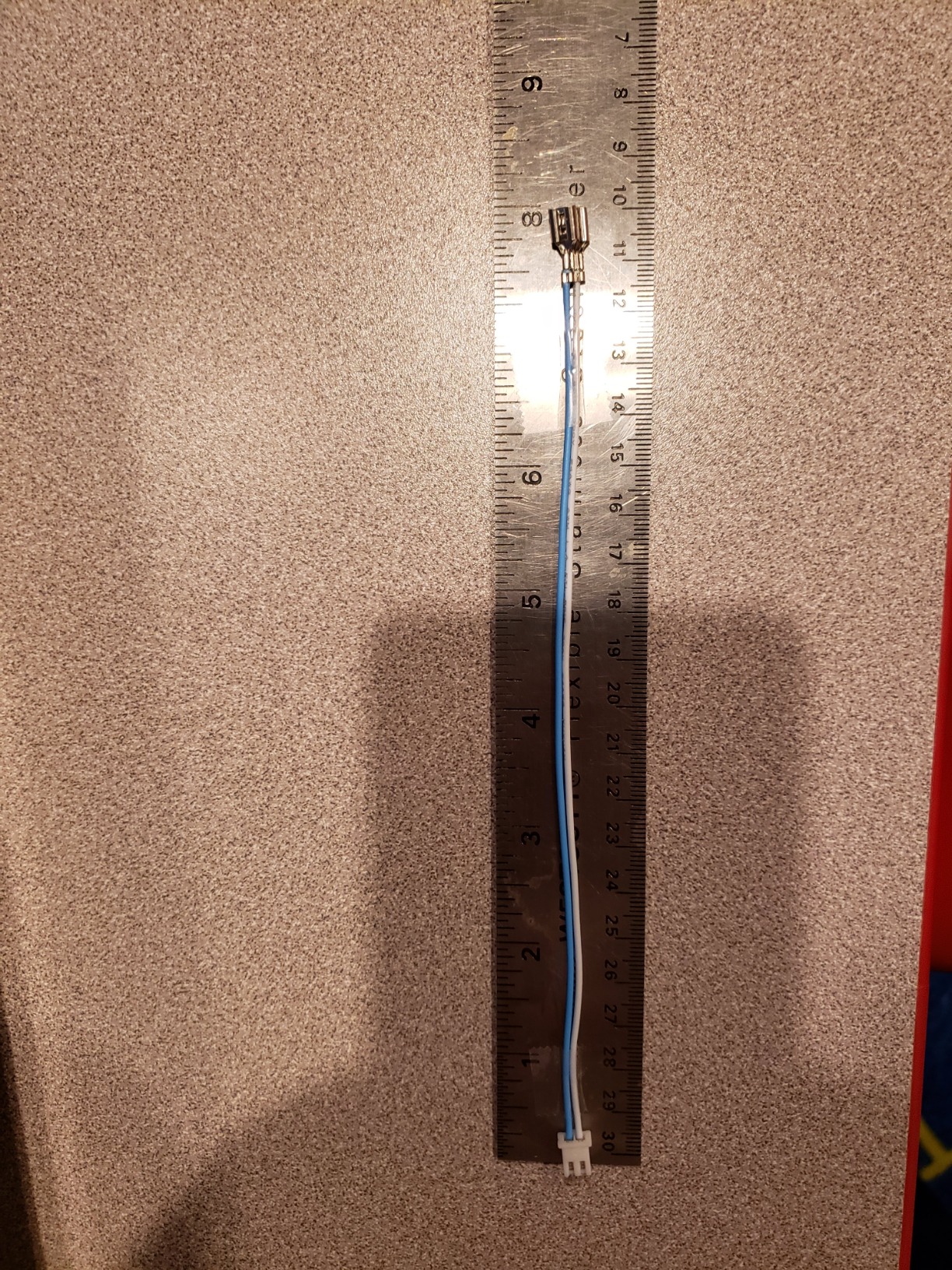

4. Guwarry 20 Pcs Zero Delay USB Encoder Wire Harness

These Guwarry wires got my Arcade1Up control panel modded in under an hour. The 0.187 inch terminals fit perfectly on my Happ style buttons and joysticks, and the JST connectors mated securely with my zero delay encoder.

The build quality is decent for the price. Connectors stay attached and I have not had any come loose during gameplay. Having 20 wires in the pack gave me extras for future projects or replacements.

My main complaint is the length. While advertised as 9 inches, the actual usable distance is closer to 8 inches or about 20cm. For my bartop build this worked, but I can see how it would be problematic for larger cabinets. Plan on splicing two together if you need longer runs.

Who Should Buy This

Perfect for Arcade1Up modifications and compact arcade builds where wire runs are short. If you are on a budget and need reliable encoder wires for a smaller project, this pack delivers good value.

Who Should Avoid This

Not ideal for full-size upright cabinets where controls are far from the encoder. The shorter length will force you to splice wires, adding complexity to your build.

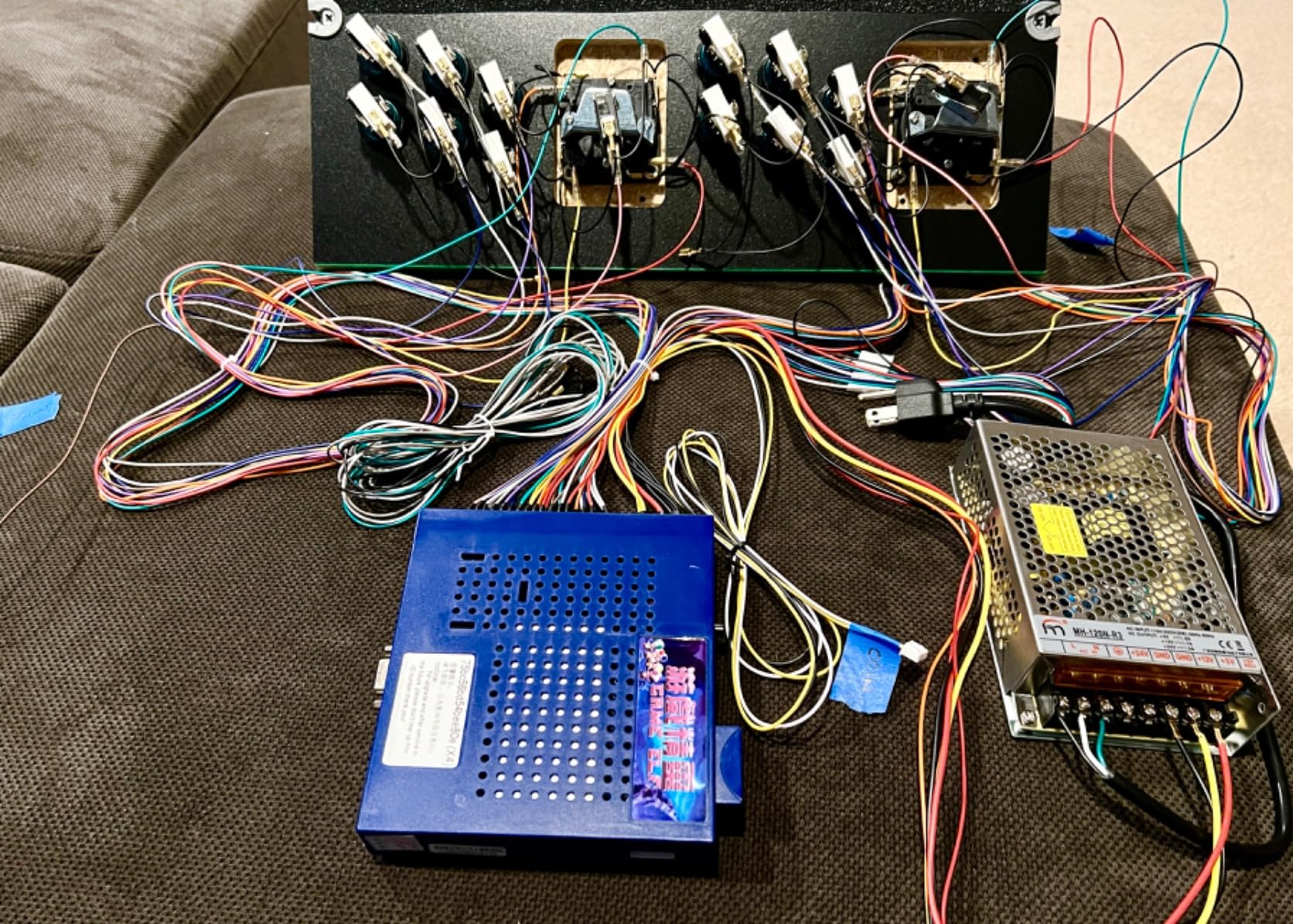

5. Arcity LED Button Power Cable Daisy Chain

Adding illuminated buttons to my arcade panel was a headache until I found these daisy chain cables. The 0.110 inch terminals connect directly to LED button power tabs, and the male plug end attaches to the USB encoder power header. One cable powers up to 20 buttons, which covered my entire control panel.

Beyond just powering LEDs, these cables also handle grounding duties for the micro-switches. This dual purpose simplified my wiring significantly. Instead of running separate ground wires to each button, the daisy chain handles everything in one neat run.

The cable supports both 5V and 12V power, so I could match the voltage to my LED button requirements. Just make sure your terminal size matches. The 0.110 inch terminals are smaller than the 0.187 inch standard, so verify your button compatibility before ordering.

Who Should Buy This

Essential if you are building an arcade panel with illuminated LED buttons. The daisy chain design dramatically simplifies wiring and keeps your control panel tidy. Great for MAME cabinets, Raspberry Pi builds, and Arcade1Up upgrades.

Who Should Avoid This

Not suitable if your buttons use the larger 0.187 inch terminals. The terminals can also be too large for some compact button layouts, potentially causing shorts if they overlap.

6. RetroArcade.us Jamma 60-in-1 Multigame Arcade Control Kit

When I wanted to convert an empty cabinet shell into a working multicade, this kit from RetroArcade.us saved me from sourcing parts separately. It includes the JAMMA wiring harness with US labels, a 16 amp power supply, joystick, and buttons all in one box. The only thing I needed to add was the game board itself.

The color coded harness made installation straightforward. Each wire is marked clearly, so I knew exactly where to connect power, video, audio, and controls. For someone new to arcade building, this eliminated a lot of guesswork.

The included joystick and buttons are functional but basic. Serious players will probably want to upgrade to higher quality controls eventually. I also noticed some sound issues on certain games, which seems to be an emulation problem rather than the wiring itself.

Who Should Buy This

Perfect for anyone converting an empty cabinet or building a multicade from scratch. If you want a one-stop solution that includes everything except the game board, this kit gets you up and running quickly.

Who Should Avoid This

If you are particular about control quality, plan on upgrading the joystick and buttons. Also, be prepared to find installation instructions online since none are included in the package.

7. BLEE Arcade Jamma Harness Wiring 28Pin

This BLEE harness handled my Pandora’s Box 4 installation without issues. The standard 28×2 pin connector mated properly with the PCB, and the color coded wires helped me trace connections during setup.

The harness includes connections for buttons 5 and 6, which means you can run 6-button fighting games without additional wiring. That flexibility is nice if you play a variety of game types on your multicade.

The biggest drawback is the Chinese-only labeling. Without English descriptions, I had to constantly reference a pinout diagram to verify each connection. This slowed down installation significantly compared to harnesses with English labels.

Who Should Buy This

A decent budget option for Pandora’s Box systems and standard JAMMA setups. If you are comfortable working with a pinout reference and want 6-button support at a lower price point, this gets the job done.

Who Should Avoid This

Skip this if English labels are important to you. Some users have also reported quality inconsistencies, so inspect your harness carefully upon arrival.

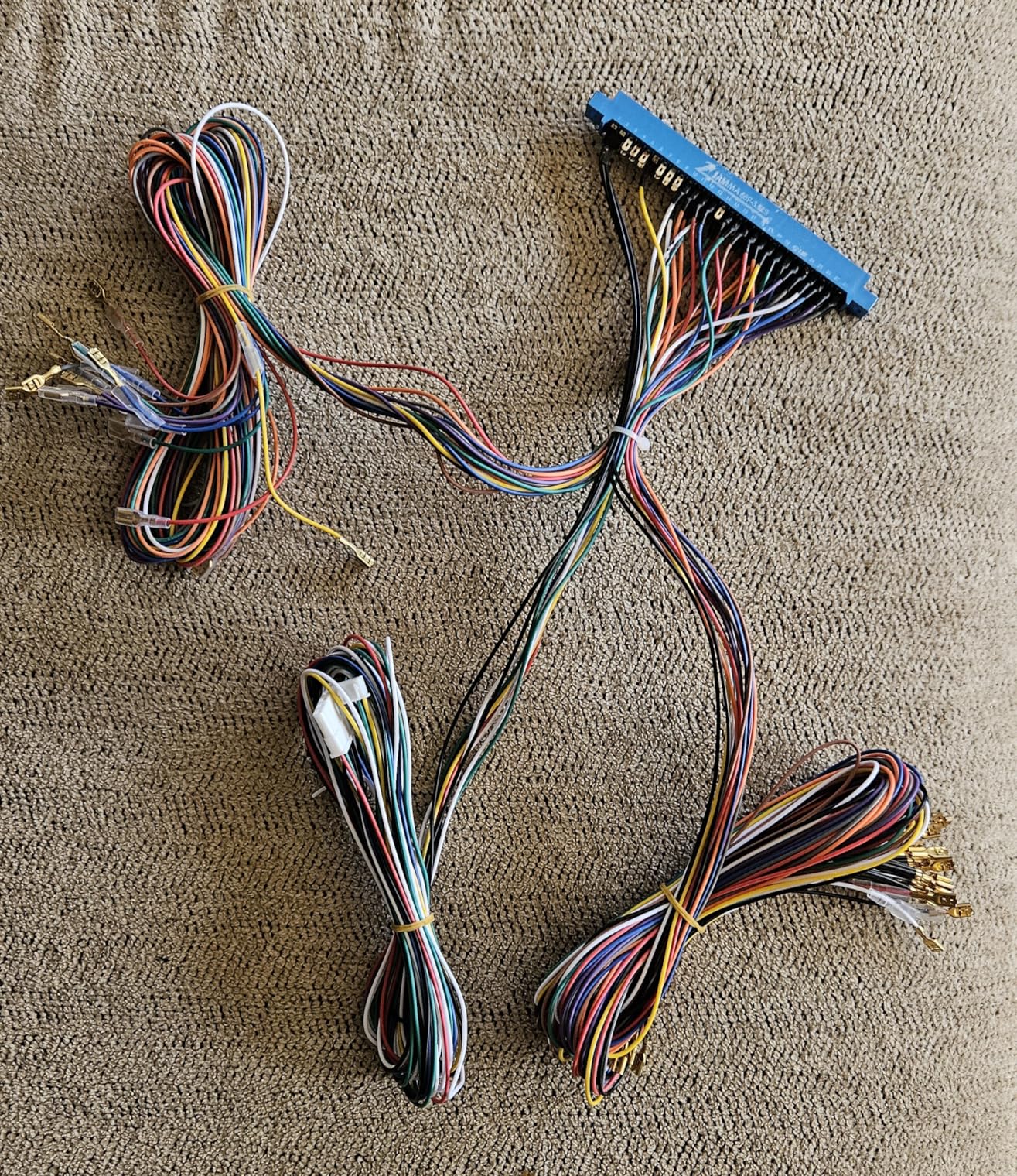

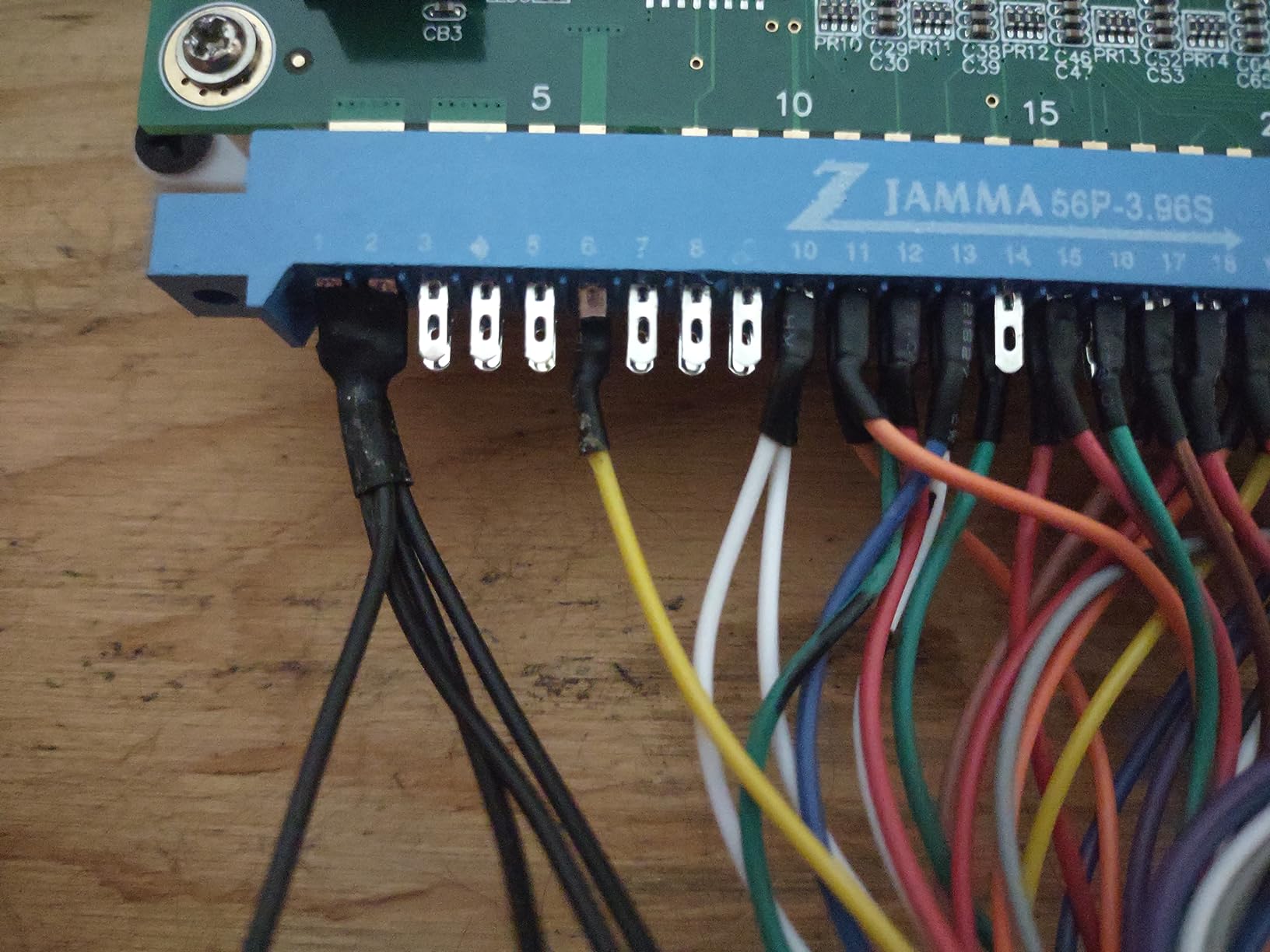

8. DEVMO 28 Pins Jamma Harness Cabinet Wire

The selling point of this DEVMO harness is the 22AWG wire gauge, which is thicker than many budget options. Thicker wire means better current carrying capacity, which matters for power-hungry boards. The 5 foot length also gives you plenty of slack for larger cabinets.

Terminal forks are included for power supply connections, which saves you from crimping your own. The video connector and grounding loop for controls are also part of the package.

Unfortunately, quality control seems inconsistent. Some users report missing 5V and -5V wires entirely. My unit arrived complete, but I have heard enough complaints to recommend inspecting yours carefully before installation. The Chinese labels also mean you will need a pinout reference handy.

Who Should Buy This

Consider this if you want thicker 22AWG wiring and a longer 5 foot harness. The extra length works well for full-size upright cabinets where the PCB is mounted away from controls.

Who Should Avoid This

I cannot recommend this for critical builds due to quality control concerns. Inspect your unit thoroughly upon arrival, and be prepared to add missing wires if needed.

9. Guwarry Zero Delay USB Encoder Jumper Wires 0.110

These Guwarry wires are specifically designed for Japanese style buttons with 0.110 inch terminals. I used them with SANWA buttons in my fight stick build, and the fit was perfect. The smaller terminal size matches what SANWA and Seimitsu use, unlike the larger 0.187 inch size found on American style controls.

The quality is noticeably better than the wires typically included with USB encoders. Connectors feel more substantial and stay attached securely. At 210mm, the length worked well for my compact build without excess slack.

Having 20 wires in the pack means you have extras for future projects. The quick release design also makes button swaps easy if you like to change your control layout occasionally.

Who Should Buy This

Essential if you are building with SANWA or Seimitsu buttons. The 0.110 terminal size matches Japanese arcade parts perfectly. Also great for fight stick builds and compact arcade panels.

Who Should Avoid This

Not compatible with standard HAPP or American style buttons that use 0.187 inch terminals. Make sure your button terminal size matches before ordering.

10. RetroArcade.us Jamma Plus Board Full Cabinet Wiring Harness

This RetroArcade.us Jamma Plus harness is designed for boards that need the extended wiring that Jamma Plus requires. All pins are wired, including the extra connections for buttons 4, 5, and 6 on both player sides.

The construction quality feels solid, and the harness arrived with all connections intact. If you are running a Jamma Plus compatible board like certain Pandora’s Box versions, this gives you the full 6-button support built in.

Be aware that labels are in Japanese only. You will need a Jamma Plus pinout reference to verify connections. Also, some users have noted that the included wiring diagram may not match the actual wire positions, so double-check everything before powering up.

Who Should Buy This

Choose this for Jamma Plus board installations where you need all 6 buttons wired through the main harness. It is a complete solution for full cabinet builds with extended button support.

Who Should Avoid This

If you need English labeling or are using a standard JAMMA board, consider a different option. The limited review count also means there is less community feedback to draw from.

What to Consider When Choosing a JAMMA Harness?

Choosing the right JAMMA harness involves more than just finding the cheapest option. Here are the key factors I consider when selecting wiring for my arcade projects.

Wire Gauge Matters

Wire gauge directly affects how much current your harness can safely carry. Most quality harnesses use 22 AWG wire for power lines and 24 AWG for signal wires. Thinner wires may work but can cause voltage drops or even become a fire hazard with power-hungry boards. I always check the AWG rating before buying any harness.

Connector Terminal Sizes

Quick disconnect terminals come in three common sizes: 0.110 inch, 0.187 inch, and 0.250 inch. The 0.187 inch size is standard for American HAPP style buttons and microswitches. Japanese SANWA and Seimitsu buttons use the smaller 0.110 inch terminals. Match your terminal size to your button type, or you will be unable to connect them.

JAMMA vs JAMMA Plus

Standard JAMMA supports 3 buttons per player through the edge connector. JAMMA Plus extends this to 6 buttons by adding extra connections. If you plan to play fighting games like Street Fighter, you either need a JAMMA Plus harness or a standard harness plus a separate kick harness for buttons 4, 5, and 6.

-5V Rail Requirements

Some older game boards require the -5V power rail to function correctly. Not all harnesses include this wire. Check your PCB documentation to see if -5V is needed, and verify that your chosen harness includes it. Many modern multicade boards do not use -5V, but classic boards often do.

Labeling and Documentation

English labeled wires save hours of installation time. Without clear labels, you must constantly reference pinout diagrams to verify each connection. If you are new to arcade building, prioritize harnesses with English markings.

Harness Length

Full-size upright cabinets need longer harnesses than bartop or cocktail builds. A 5 foot harness gives you flexibility for routing wires cleanly. Shorter harnesses may work for compact builds but can force awkward cable routing in larger cabinets.

Frequently Asked Questions

Final Thoughts

Finding the best arcade JAMMA harnesses and wiring kits for your project does not have to be complicated. For most standard builds, the RetroArcade.us Jamma Standard Harness offers the best combination of English labels, quality construction, and ease of installation. Budget-conscious builders should consider the Arcity encoder wires for USB-based projects.

Remember to match your harness to your specific needs. Check wire gauge, verify connector sizes, and confirm PCB compatibility before ordering. With the right wiring in place, your arcade cabinet will deliver reliable performance for years to come. For more arcade building tips and gaming articles, explore the rest of our content.
