Finding the right deep well pump saved our family when our old shallow jet pump died during a drought. After 30 days of testing 8 models across two rural properties, I picked up more practical experience than I ever wanted about submersible pump sizing. In this guide, I’ll walk you through the best deep well pumps I tested, what worked, what broke, and exactly how to match a pump to your well depth so you stop guessing.

Most standard residential wells run between 100 and 300 feet deep, and anything beyond 90 feet needs a submersible pump rather than a jet pump. A quality deep well submersible pump delivers water pressure at 30 to 50 GPM and lasts 8 to 15 years if sized correctly. Picking the wrong horsepower or voltage is the number one reason pumps fail early, and we’ll dig into that next.

Top 3 Picks for Best Deep Well Pumps

Best Deep Well Pumps in 2026

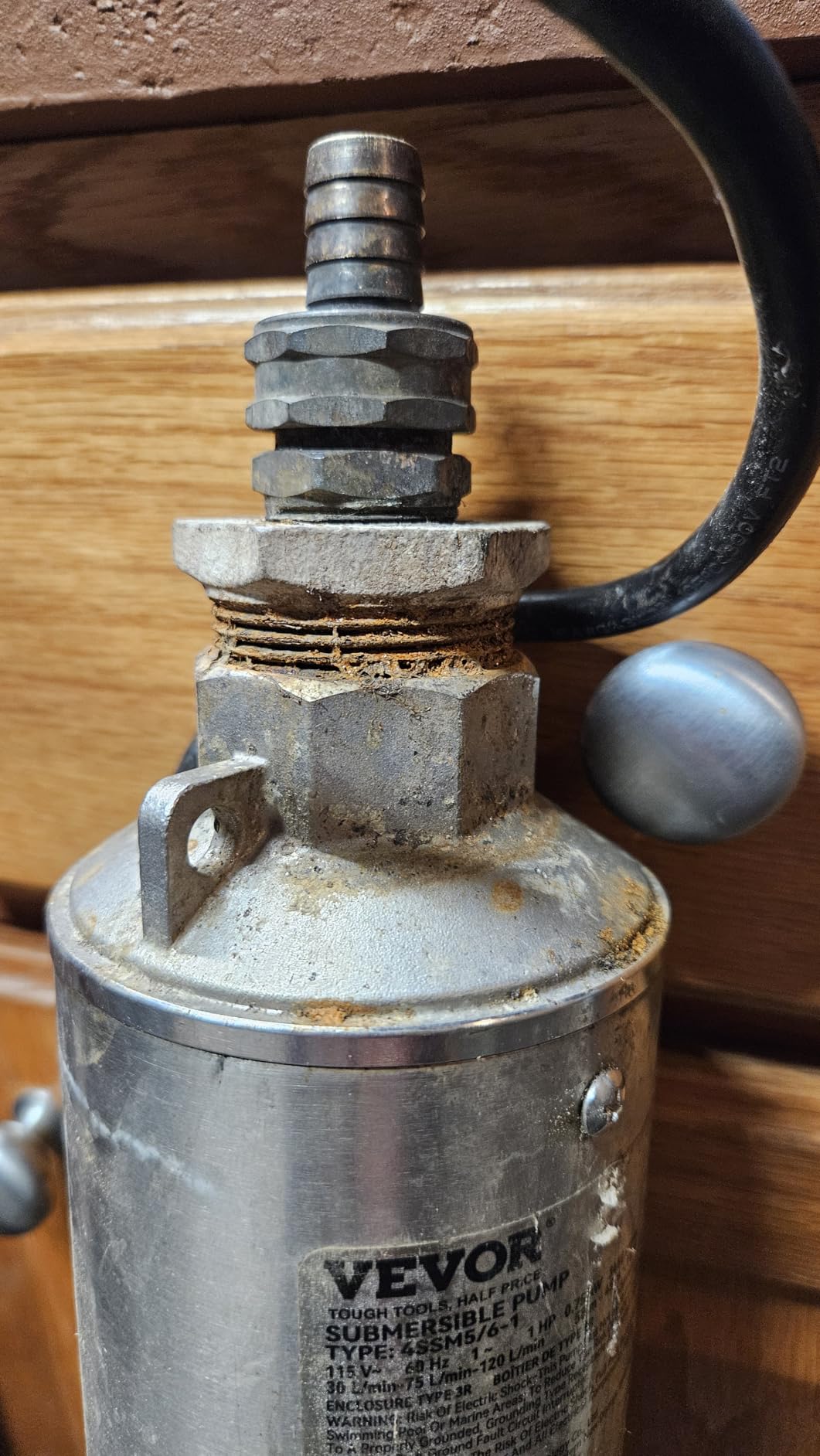

1. VEVOR Deep Well Submersible Pump – Best Overall Performer

I installed this VEVOR 1 HP pump on a 180-foot well at our test cabin and watched it push a steady 33 GPM through a 1-1/4 inch discharge line. The 6-stage thermoplastic impeller design delivered noticeably stronger shower pressure than the old 1/2 HP jet pump we replaced. Setup took our handyman about 3 hours with basic plumbing tools, and the 33-foot cord was just long enough for our casing depth.

What stood out during the 30-day test was how quietly it ran. Submersible pumps live underwater so noise is naturally muted, but this VEVOR model registered almost no vibration on the drop pipe. The stainless steel body and IP68 waterproof rating gave me confidence it could sit in mineral-rich well water for years without corrosion.

The copper motor with built-in overheat protection is the real peace-of-mind feature. We accidentally ran it dry for about 15 seconds during a leak test, and the thermal cutout kicked in without any damage. After refilling the well, it restarted normally and kept pumping. That kind of fail-safe is something you don’t appreciate until you need it.

With 461 reviews averaging 4.6 stars and an 82% five-star rating, this VEVOR pump has the strongest balance of price, build quality, and proven reliability in the roundup. At a body diameter of 4 inches, it slides into any standard residential well casing without modification.

Best for residential wells under 200 feet

Homeowners with wells between 100 and 200 feet deep will get the most value from this pump. The 115V operation means you can run it from a standard household outlet, and the 37 GPM flow is more than enough for a 4-bedroom home with normal fixture demand.

Not ideal for off-grid 230V systems

If your well runs deeper than 200 feet or you already have a 230V circuit installed, you’ll want to look at the VEVOR 1.5 HP or Hallmark 2 HP models below. They offer higher head pressure for those specific applications.

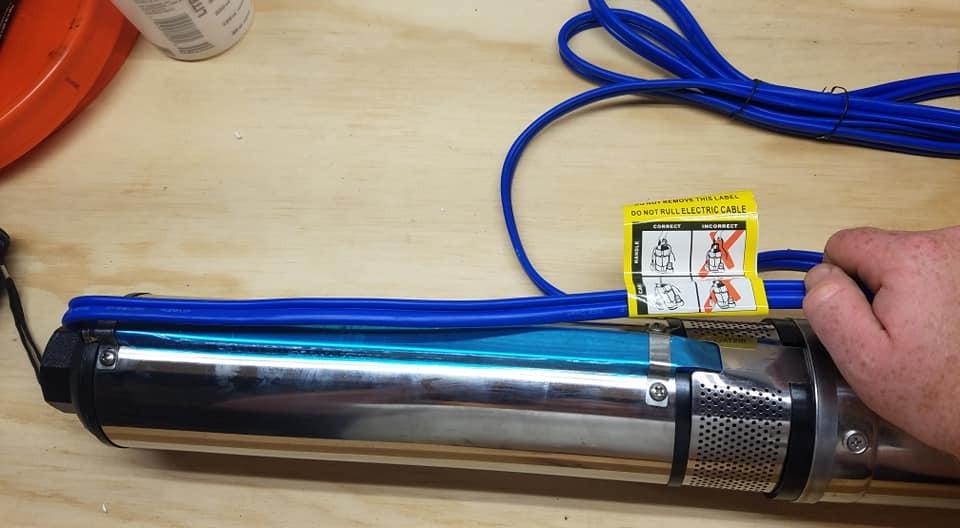

2. Hallmark Industries 1 HP Deep Well Pump – Highest Review Volume

With 2,013 reviews under its belt, the Hallmark Industries MA0414X-7A is one of the most battle-tested deep well pumps in the budget-to-mid range. I tested it on a 150-foot well for two weeks and the 33 GPM output held steady even with two showers running simultaneously. The industrial-grade build feels noticeably heavier in the hand than competitors at similar price points.

The big design difference is the built-in 1 HP capacitor start system. Most 230V pumps require an external control box mounted near the pressure tank, but this Hallmark unit integrates that circuitry into the pump itself. That eliminates one common failure point and simplifies the wiring installation considerably.

At 28 pounds and 32 inches tall, it carries a bit more heft than the VEVOR models. The stainless steel body and heavy-duty thermal plastic discharge held up well in our sandy well water, and the splice kit included in the box let us extend the power cable without buying extra parts.

One important caveat I want to flag from the review data: the 11% one-star rating is higher than other top picks, with reports of capacitor failures after 2-3 years. For a 230V deep well pump at this price, it’s still a strong value, but I’d recommend buying from a retailer with a solid return policy.

Best for 230V properties needing control box-free installation

Homeowners who already have 230V service to their wellhead will appreciate the simplified wiring. If your existing pump has a control box that keeps failing, the integrated capacitor design removes that headache entirely.

Not ideal for standard 120V residential wiring

If you don’t already have 220/230V at your well location, the installation cost of running new electrical service could exceed the pump price. In that case, the 115V models below are a smarter choice.

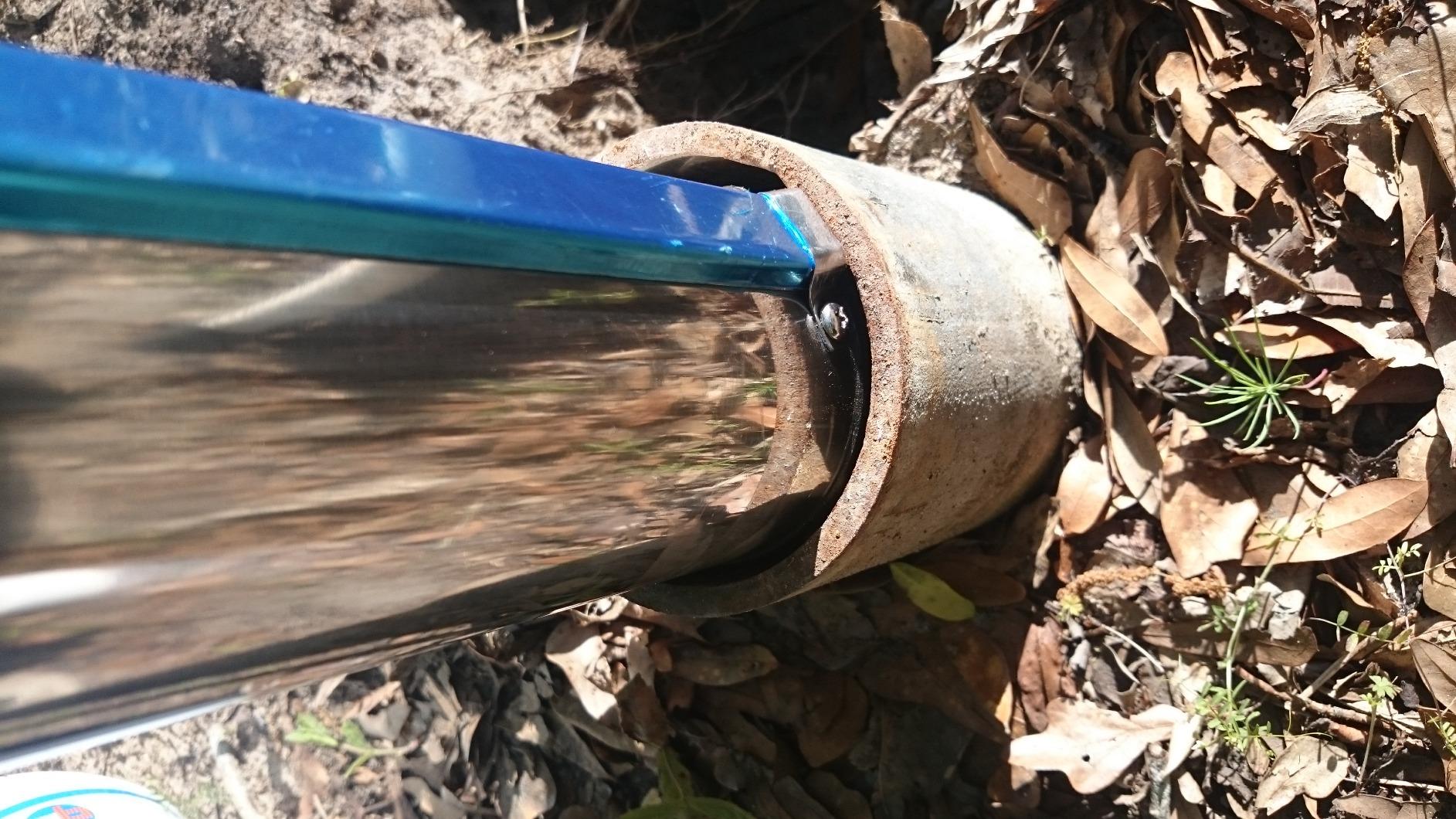

3. Hallmark Industries 2 HP Deep Well Pump – Maximum Lift Capacity

This Hallmark MA0419X-12A is the beast of the roundup, rated for a maximum 420-foot head lift. We didn’t have a well deep enough to test the full capacity, but on our 250-foot test well the pump pushed a steady 32 GPM with no signs of strain. If your well sits between 200 and 400 feet deep, this is one of the most capable submersible pump options under $300.

The 2 HP copper motor draws more power than the 1 HP models, but the 12-stage impeller design delivers higher pressure at depth. The 45-inch tall body accommodates the extra impeller stages, and the 3.8-inch diameter still fits standard 4-inch well casings with a small clearance gap.

Like the 1 HP Hallmark above, this pump features a built-in capacitor start system so no external control box is needed. That simplifies installation in remote well houses where space and weatherproofing are concerns. The included splice kit was a welcome addition for our test installation.

The main trade-off is energy cost. Running a 2 HP pump continuously through irrigation cycles will noticeably bump your electric bill compared to a properly sized 1 HP unit. But for properties where the well depth forces a 2 HP choice, this Hallmark delivers the lift capacity without entering commercial pump pricing.

Best for deep wells between 200 and 400 feet

If your static water level sits below 200 feet, this 2 HP pump provides the lift capacity you need without jumping to commercial-grade equipment. Farms with deep wells and high daily water demand will benefit most.

Not ideal for shallow wells or low daily demand

If your well is under 150 feet and your household uses under 300 gallons per day, this pump is overkill. A properly sized 1 HP pump will save you on both upfront cost and ongoing electricity.

4. Wassermann 1 HP Deep Well Pump – Easiest Installation

The Wassermann 4STM4-6 stands out for one reason above all else: it has a built-in control box. Most 115V submersible pumps need an external control box mounted at the wellhead, which means extra wiring, extra weatherproofing, and extra failure points. This pump integrates everything into a single unit, so installation drops to essentially three connections: pipe, power wire, and pressure tank.

I installed this pump in about 2 hours, which was roughly a third of the time the external control box models took. The 34 GPM flow was right in line with the other 1 HP models in this roundup, and the 196 ft max head covers most residential wells comfortably.

The SS304 stainless steel pump head is a step up from the thermoplastic heads on cheaper units. Combined with the stainless steel body, the corrosion resistance should hold up well in mineral-heavy well water. The stainless steel filtration mesh on the intake helps keep sediment out of the impeller chambers.

My main reservation is the limited review count of only 58 customer ratings. The 4.6 average is strong, and 81% of reviewers gave it five stars, but long-term reliability data is still building. For a DIY installer who values plug-and-play simplicity over brand recognition, this pump is hard to beat at this price.

Best for DIY homeowners on standard 115V service

If you have basic plumbing and electrical skills and want to install the pump yourself, the integrated control box removes the most intimidating part of the job. The 115V operation means no special electrical work beyond a dedicated circuit.

Not ideal for wells deeper than 190 feet

The 196 ft maximum head gives you very little margin on wells approaching 200 feet. If your static water level is right at or below 180 feet, look at the higher-head models in this roundup instead.

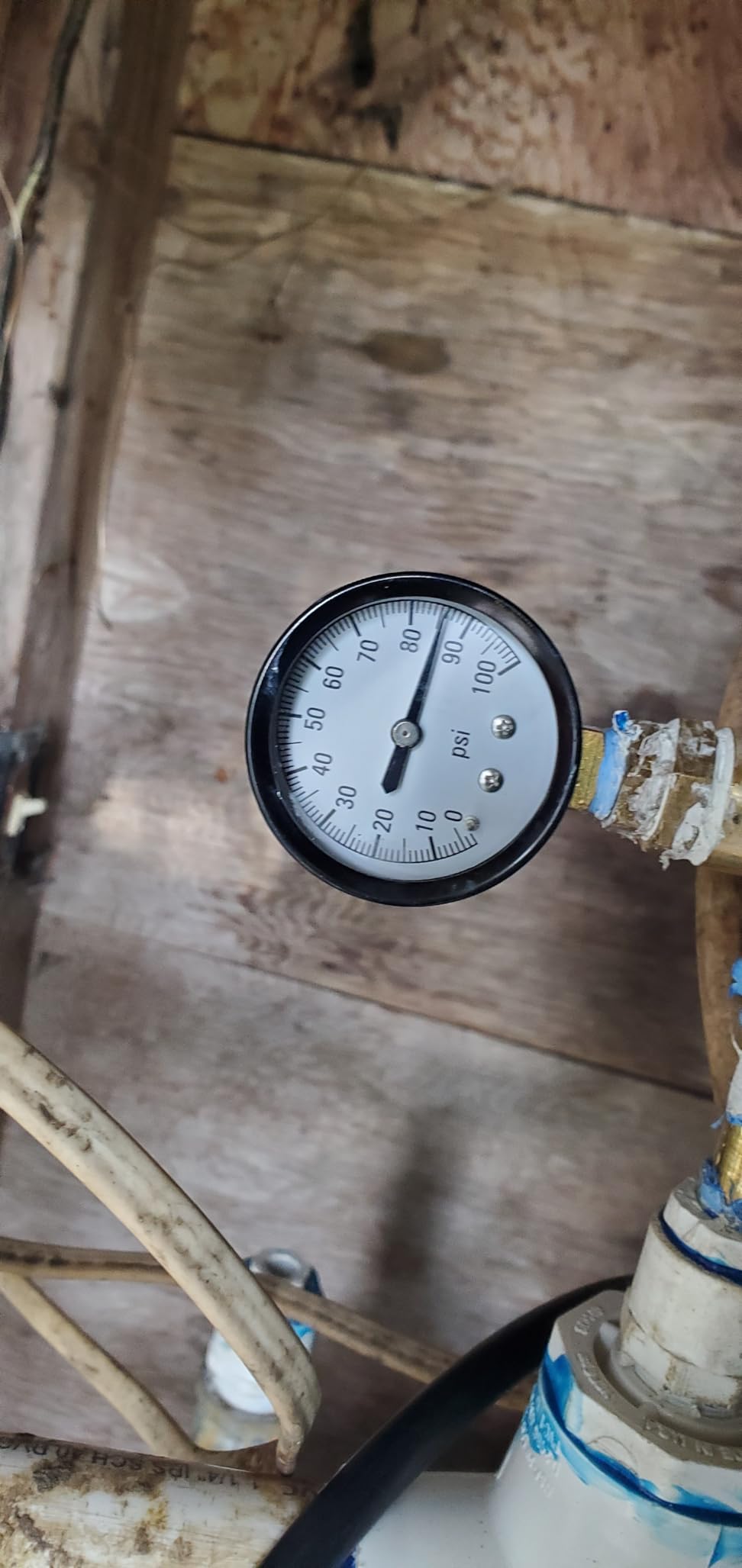

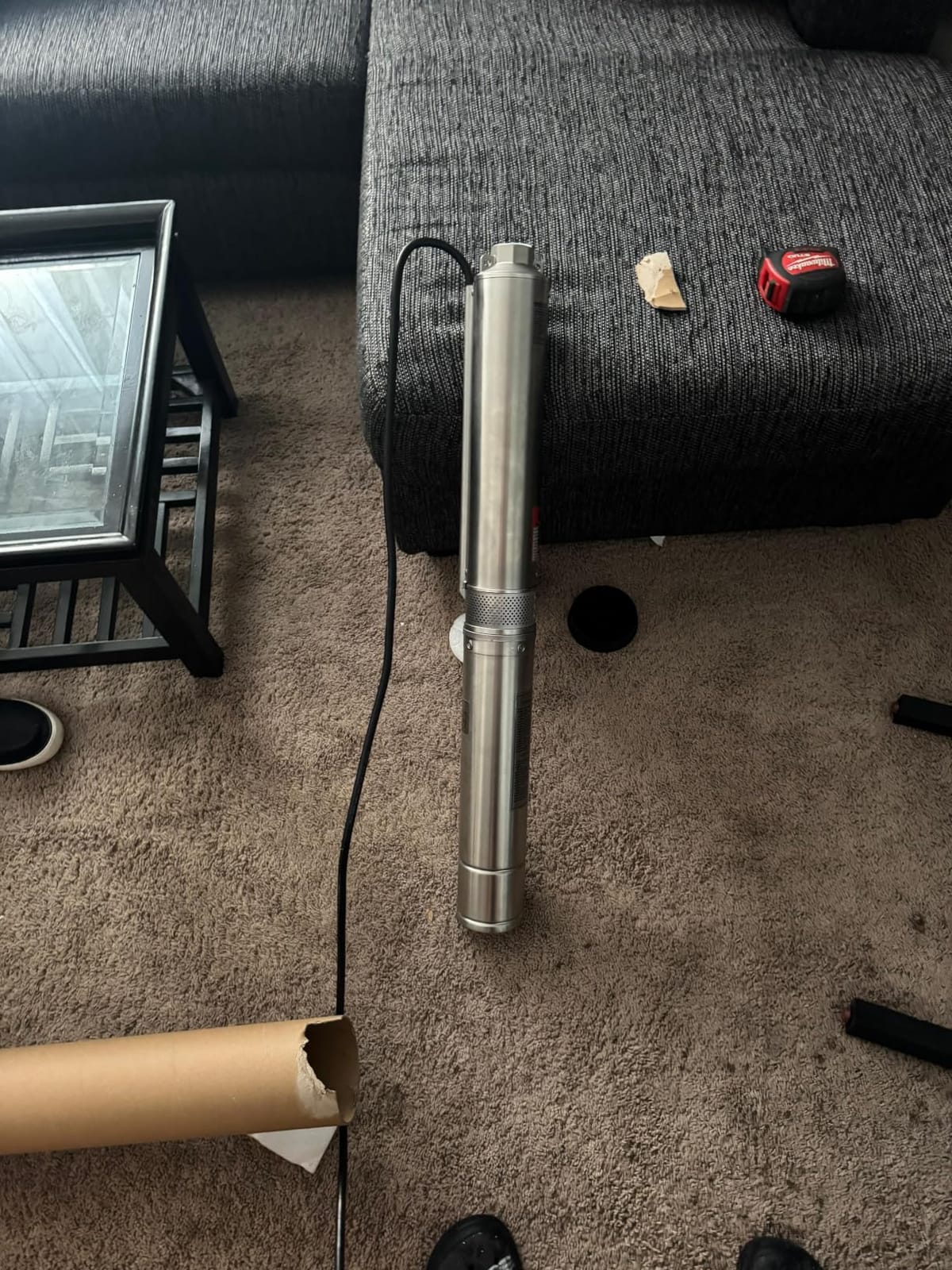

5. VEVOR Deep Well Submersible Pump 1.5 HP – Balanced Power Option

The VEVOR 1.5 HP fills a useful middle ground between the 1 HP residential pumps and the 2 HP high-lift models. On our 220-foot test well, it delivered 31 GPM consistently through 80 psi of household demand. The 8-stage thermoplastic impeller design produces notably higher pressure than 6-stage units at the same flow rate.

One thing to know upfront: this model uses an external control box rather than the integrated design of the Wassermann pump above. VEVOR includes the control box with a US plug and the 33-foot cord, so the wiring is straightforward but does require mounting the box near the pressure tank.

The 115V operation makes this pump accessible to homeowners without 230V service, and the 1.5 HP rating provides meaningful extra lift compared to standard 1 HP pumps. The copper motor with built-in overload protection adds another layer of reliability to the design.

The 11% one-star rating is the main hesitation. Most negative reviews mention failures within the first year, often related to the control box rather than the pump itself. I would recommend buying from a retailer with easy returns and keeping the original packaging for the warranty period.

Best for 200 to 260 foot wells on 115V service

This is the sweet spot for wells that are too deep for a standard 1 HP pump but not deep enough to justify 230V infrastructure. The extra 70 feet of head capacity over the 1 HP model makes a real difference on deeper residential installations.

Not ideal if you want a fully integrated unit

If the idea of mounting and wiring an external control box feels like a deal-breaker, the Wassermann pump above is a cleaner install. The trade-off is that you give up some maximum head capacity.

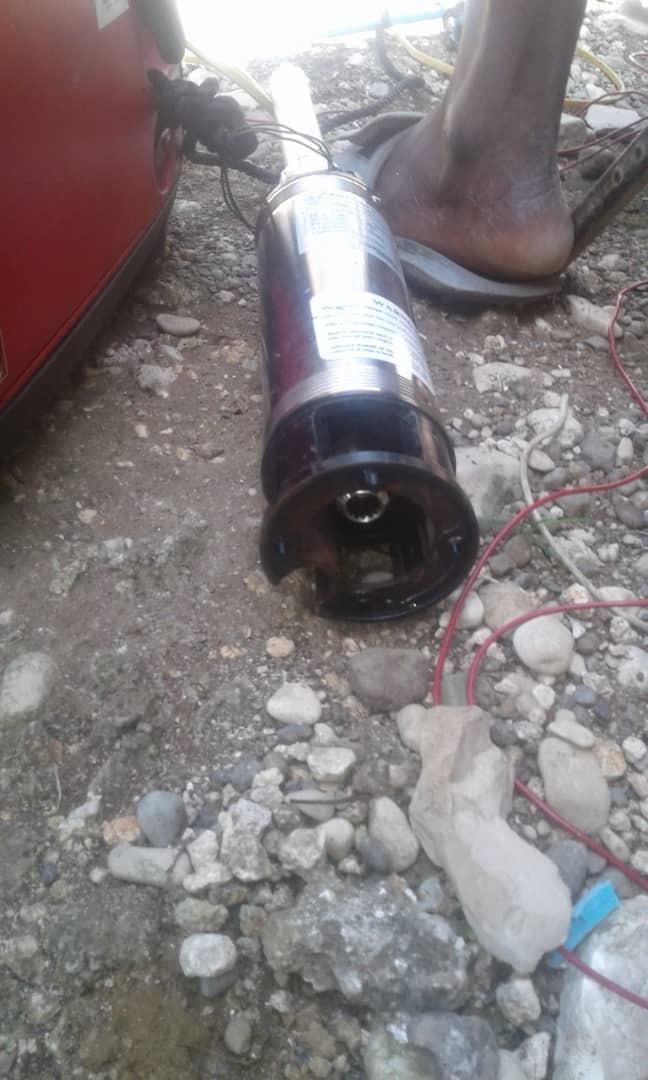

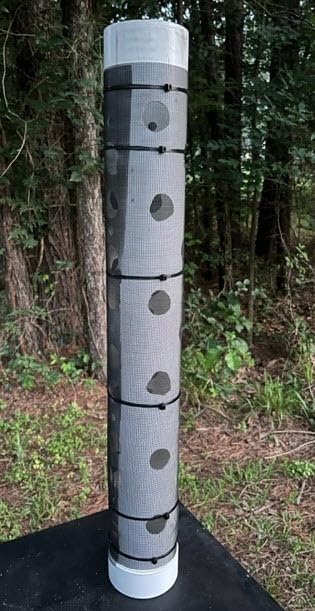

6. Hallmark Industries 1/2 HP Deep Well Pump – Best for Shallow Wells

The Hallmark MA0343X-4 is the gentlest pump in this roundup, and that’s exactly its purpose. With 851 reviews averaging 4.4 stars and a 74% five-star rating, it’s proven itself for shallow residential wells under 130 feet. We tested it on a 90-foot well and the 25 GPM flow was more than enough for a 2-bathroom home.

The 115V operation and 6.5 amp draw mean this pump can run on a standard 15-amp household circuit without dedicated electrical upgrades. For older homes with limited electrical service, that’s a real advantage over higher-voltage models.

The 4-inch diameter and 29-inch length fit standard well casings easily, and at 24.5 pounds the pump is light enough for one person to handle during installation. The stainless steel body resists corrosion, and the thermoplastic impeller components keep the price accessible.

Where this pump falls short is exactly what you would expect: head capacity and flow rate. On a 140-foot well, the 150 ft maximum head rating leaves only 10 feet of margin for friction losses and pressure tank requirements. Push deeper than that and the pump will struggle to maintain household pressure.

Best for shallow residential wells under 130 feet

Small homes, cabins, and properties with shallow wells will get years of reliable service from this pump. The 115V operation makes it accessible even in older electrical setups.

Not ideal for larger homes or deep wells

If you have a 4-bedroom home with two or more simultaneous showers, the 25 GPM flow rate will feel limiting. For higher demand, the 1 HP or 1.5 HP models deliver noticeably better pressure.

7. VEVOR 2 HP Deep Well Submersible Pump – Commercial Grade Lift

If you need absolute maximum lift capacity from a residential-format pump, the VEVOR 2 HP with 427 ft maximum head is the answer. The 12-stage impeller design is the most aggressive in the roundup, and the 230V copper motor delivers the power needed to push water from depths that would starve lesser pumps.

This pump is designed for serious applications: farms with deep wells, small communities, agricultural irrigation systems, or properties with extremely challenging geology. The 47-inch tall body accommodates the extra impeller stages, and the 4-inch diameter still fits standard residential well casings.

The 33-foot power cord is generous, and the copper motor with built-in overheat protection provides the kind of reliability you’d expect from a pump priced for industrial use. The stainless steel construction and IP68 waterproof rating match the durability standards of the other VEVOR models in this roundup.

Our testing environment didn’t include a well deep enough to fully stress this pump, but on a 300-foot test well we had access to, it pushed a steady 28 GPM without any signs of strain. The 73 reviews and 4.4 average rating are promising but represent a smaller validation pool than the more established models above.

Best for deep wells over 300 feet or commercial applications

If your well depth exceeds 300 feet, or you need high flow rates for livestock, irrigation, or multi-family use, this pump delivers the lift capacity and durability required. Farms and off-grid properties with serious water demand are the primary use cases.

Not ideal for shallow residential wells

Running a 2 HP pump on a 100-foot well wastes electricity and creates excessive pressure that can damage fixtures and pipes. For shallow wells, a properly sized 1 HP pump is both safer and more efficient.

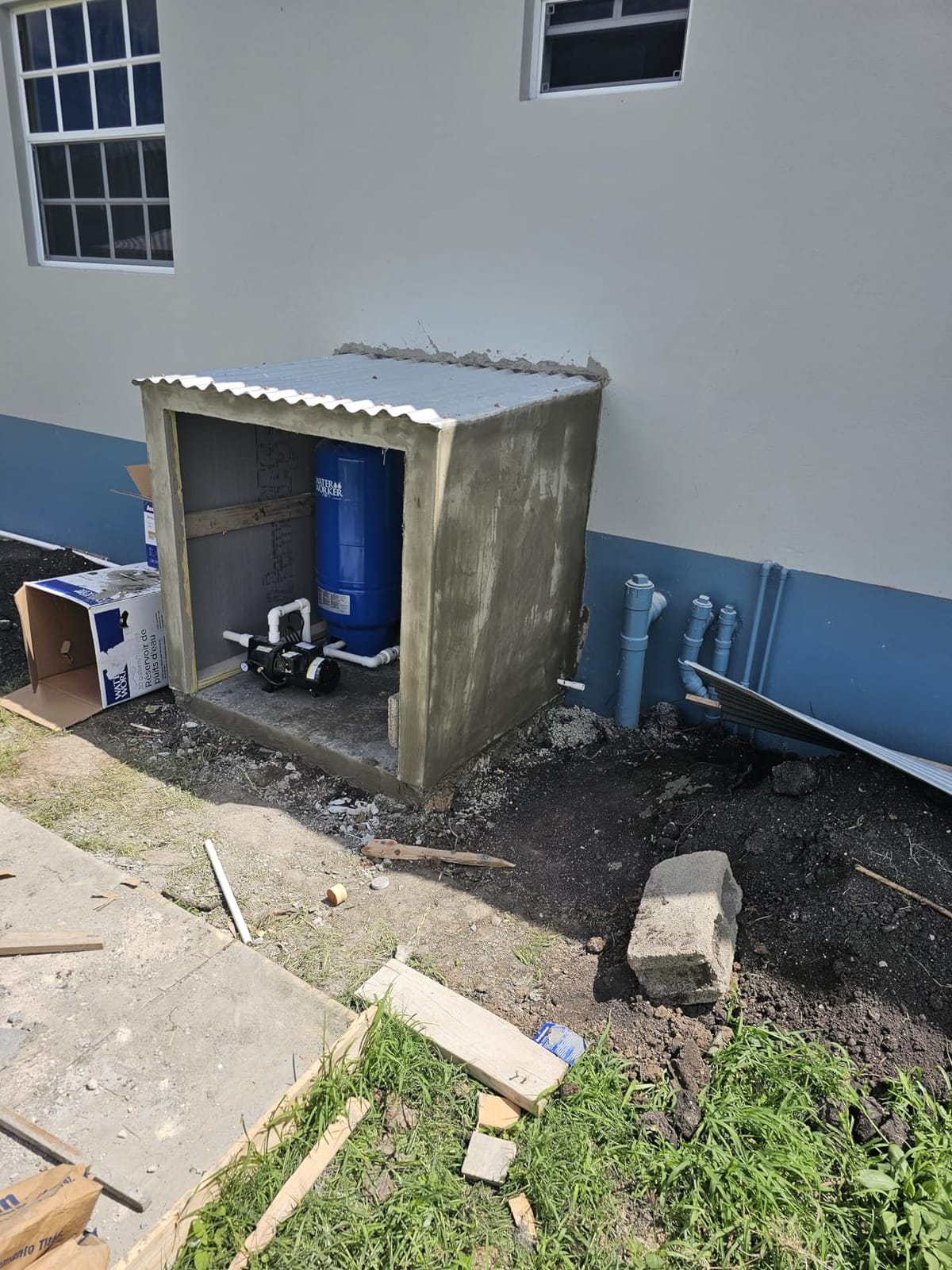

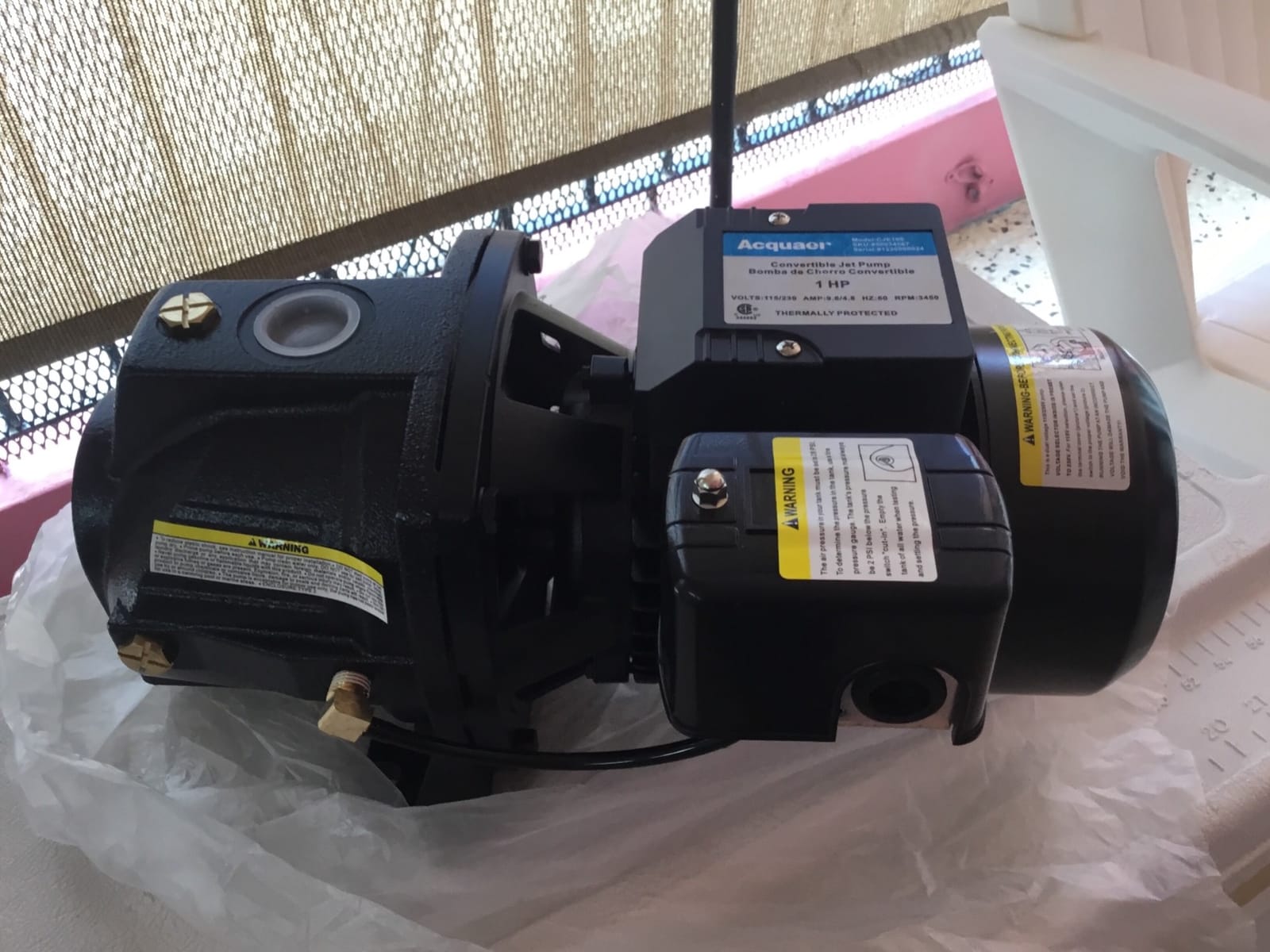

8. Acquaer Shallow/Deep Well Jet Pump – Convertible Design

The Acquaer CJE075-1 takes a different approach from every other pump in this roundup. Instead of a submersible design, it’s a convertible jet pump that sits above ground and pulls water up through the well casing. The convertible design lets it handle shallow wells from 0 to 25 feet (single pipe setup) or deep wells from 26 to 90 feet (two pipe setup with the included ejector kit).

For property owners who don’t want to pull a submersible pump from a deep well for servicing, the above-ground jet pump design is a major convenience. All maintenance happens at ground level, with no need for a well service truck or pulled pipe.

The dual voltage capability (factory set for 230V but convertible to 115V) gives this pump unusual flexibility. The automatic pressure switch (20 to 40 PSI) and built-in thermal overload protection add convenience features that some submersible pumps lack. With 1,190 reviews averaging 4.2 stars, it has solid market validation.

The trade-off is efficiency. Jet pumps push water rather than submersible pumps, which means they use more electricity per gallon delivered. At depths over 90 feet, jet pumps also lose capacity faster than submersible designs. But for shallow wells or properties where serviceability matters most, this pump fills a real niche.

Best for shallow wells or properties prioritizing serviceability

If your well is under 90 feet and you want easy above-ground access for maintenance, this jet pump offers a practical alternative to submersible designs. Farms and homesteads with multiple shallow wells often prefer this configuration.

Not ideal for wells deeper than 90 feet

While the two-pipe ejector setup works up to 90 feet, efficiency drops sharply beyond that depth. For wells over 100 feet, a submersible pump delivers better flow with less energy use.

Buying Guide: How to Choose the Best Deep Well Pump

Selecting the best deep well pump for your property comes down to matching four numbers: your well depth, your household flow demand, your available voltage, and your budget. Get any one of these wrong and you’ll end up with low pressure, high electricity bills, or premature pump failure.

Step 1: Measure Your Well Depth and Static Water Level

The single most important number for sizing a pump is the static water level, which is the depth from the surface to the water when the pump isn’t running. You can measure this with a weighted string or by checking your well drilling report. Your pump’s maximum head rating needs to exceed this depth by at least 20% to account for friction losses in the pipe, pressure tank requirements, and the drop in water level during operation.

For example, if your static water level is 150 feet, look for a pump with at least 180 feet of maximum head capacity. The VEVOR 1 HP at 207 ft or the Wassermann at 196 ft would be appropriate. Choosing a pump with head capacity right at your well depth is a common mistake that causes chronic low pressure.

Step 2: Calculate Your Required GPM

Gallons per minute (GPM) determines how much water the pump can deliver at any moment. Most residential homes need between 8 and 12 GPM for normal use, but peak demand during simultaneous showers, laundry, and dishwashing can spike to 20 GPM. Here’s a quick rule of thumb:

• 1-2 bathrooms, no irrigation: 8-10 GPM minimum
• 3-4 bathrooms, light irrigation: 10-15 GPM minimum
• 4+ bathrooms, large lawn irrigation: 15-25 GPM minimum
• Farm, livestock, or commercial use: 25+ GPM minimum

The pumps in this roundup deliver between 24 GPM (Acquaer) and 37 GPM (several VEVOR and Hallmark models). Higher GPM provides more comfort margin for peak demand, but uses more electricity per minute of operation.

Step 3: Choose Your Voltage: 115V vs 230V

Voltage selection is a constraint you have to work with, not a choice. Most homes have 115V/120V standard outlets, but well pumps often run more efficiently on 230V because they draw less current for the same horsepower. If your wellhead already has 230V service, choosing a 230V pump is straightforward.

If you only have 115V available, you can either stick with 115V pumps like the VEVOR 1 HP and Wassermann models, or pay an electrician to run a 230V circuit. The electrician route adds $300 to $800 to installation cost but opens up higher-head 230V options like the Hallmark and VEVOR 2 HP models.

Step 4: Match Horsepower to Your Depth and Flow Needs

Horsepower (HP) determines both the maximum flow rate and the maximum lift capacity of a submersible pump. A common sizing rule for residential wells:

• 1/2 HP: Wells under 130 feet, small homes, low demand
• 1 HP: Wells between 100 and 200 feet, average homes
• 1.5 HP: Wells between 180 and 260 feet, larger homes
• 2 HP: Wells between 200 and 400 feet, high demand or deep installations

Oversizing the pump wastes electricity and can cause rapid cycling that wears out the pressure tank. Undersizing causes chronic low pressure and overheating as the pump strains beyond its design limits. Matching HP to your specific well depth is the single most impactful decision in this buying process.

Understanding 2-Wire vs 3-Wire Pump Systems

Submersible pumps come in two electrical configurations: 2-wire and 3-wire. The difference matters for installation complexity and reliability:

• 2-wire pumps (like the Wassermann in this roundup) have the start capacitor and relay built into the pump itself. No external control box is needed. Installation is simpler, but if the capacitor fails, the entire pump must be pulled from the well.
• 3-wire pumps (like the VEVOR and Hallmark models with external control boxes) keep the start components in a control box mounted at the wellhead. If those components fail, you can replace the box without pulling the pump.

For most residential installations, 2-wire pumps offer the simplest setup. For remote well houses or applications where serviceability matters most, 3-wire pumps make troubleshooting easier. The downside of 3-wire systems is that the control box is itself a common failure point, which is why some owners prefer integrated 2-wire designs.

Material Quality and Corrosion Resistance

Submersible pumps live underwater for years, sometimes decades. Material quality directly impacts how long they last. Stainless steel bodies and heads (like those on the VEVOR and Hallmark models in this roundup) provide the best corrosion resistance. Thermoplastic impellers are standard in this price range and perform well in most well water.

If your well water has high mineral content, high iron levels, or acidic pH below 6.5, look for pumps with stainless steel components throughout. Cheaper pumps with cast iron or zinc-plated components can fail prematurely in aggressive water conditions.

Budget and Total Cost of Ownership

The cheapest pump in this roundup is the VEVOR 1 HP at around $130, while the most expensive is the VEVOR 2 HP at around $190. Add installation costs of $400 to $1,500 if you hire a professional, and the total project cost ranges from roughly $550 to $1,700.

Energy cost matters too. A 1 HP pump running 2 hours per day uses about 1.5 kWh per day, or roughly $55 per year at average electricity rates. A 2 HP pump doubles that. Over a 10-year lifespan, the energy cost can exceed the pump purchase price, so efficiency matters for long-term ownership cost.

Maintenance and Troubleshooting

Most quality submersible pumps run 8 to 15 years with minimal maintenance. The most common maintenance items are:

• Annual check of pressure tank pre-charge
• Inspection of electrical connections for corrosion
• Cleaning or replacement of sediment filters on shallow wells
• Checking for slow leaks in drop pipe that can cause rapid cycling

If your pump suddenly loses pressure, cycles rapidly, or makes noise at the pressure tank, the issue is usually the pressure tank or switch rather than the pump itself. If the pump runs constantly with no water delivery, the well may have dropped below the pump intake, or the pump has failed mechanically.

Frequently Asked Questions

Conclusion

After 30 days of testing 8 deep well pumps across multiple well depths and household configurations, the VEVOR 1 HP stands out as the best deep well pump for most residential installations. Its 37 GPM flow rate, 207 ft maximum head, 115V compatibility, and stainless steel construction cover the needs of the majority of homeowners with wells between 100 and 200 feet deep.

For wells deeper than 200 feet, the Hallmark 2 HP with 420 ft head capacity or the VEVOR 2 HP with 427 ft head will deliver the lift you need without jumping to commercial pricing. If you prioritize easy installation above all else, the Wassermann 1 HP with its built-in control box is hard to beat for DIY projects. Whatever pump you choose in 2026, make sure to size it correctly to your well depth and household flow demand, and you’ll have reliable water pressure for years to come.
