My dad slipped in his textured-tile shower two years ago and broke three ribs on the corner of the bench. The fall lasted less than a second. The recovery took four months. That is the moment I started testing every grab bar I could find on rough ceramic and porcelain tile, because the bars that worked perfectly on my smooth fiberglass surround failed or wobbled the moment I mounted them on a stone-textured wall.
After testing eight different models over thirty days across three textured-tile bathrooms (a tumbled travertine, a pebbled porcelain, and a slate-look ceramic), I narrowed the list down to the best grab bars for textured tile showers that actually anchor, stay grippy when soapy, and hold a real fall. The CDC reports that roughly 235,000 people over age 15 visit emergency rooms each year for bathroom injuries, and the majority of those falls happen getting in or out of the shower or tub. A proper bar is one of the simplest, cheapest fixes in the whole house.
If you have textured tile, you already know the suction-cup bars at the drugstore do not stick. The peaks and valleys of rough tile break the airtight seal the suction cup needs. What you actually want is a wall-mounted, ADA-compliant stainless steel bar with a peened or knurled grip surface, screwed into studs (or backed by serious anchors) through a properly drilled tile hole. The eight picks below cover every textured-tile situation, from peened stainless to knurled budget pairs to designer-finish gold bars that disappear into a high-end bathroom.
Textured-tile verdict at a glance: A grab bar that works on textured tile needs three things, knurled or peened grip texture (soapy hands do not slide), a stainless steel body rated for at least 440 lbs (ADA-compliant is 500 lbs), and concealed-mount flanges that you can fasten into studs with the right tile drill bit. Skip suction bars on rough tile. Skip smooth grip bars unless you plan to wear a glove in the shower. These picks satisfy all three requirements.
Top 3 Picks for Textured Tile Showers for September 2026
Vive Grab Bar for Showers
- › Brushed nickel
- › 440 lb capacity
- › 1.25 inch diameter
- › Concealed mount
- › Multi-position
Moen 8912 12-Inch Stainless…
- › 500 lb capacity
- › 1.5 inch diameter
- › Concealed screws
- › SecureMount ready
- › Lifetime warranty
Amazon Basics 18-Inch Brush…
- › 500 lb capacity
- › 1.5 inch diameter
- › Multiple mount holes
- › Snap-on flanges
- › ADA compliant
Best Grab Bars for Textured Tile Showers in September 2026
| PRODUCT MODEL | KEY SPECS | BEST PRICE |
|---|---|---|
|
|
Check Latest Price |
|
|
Check Latest Price |
|
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |

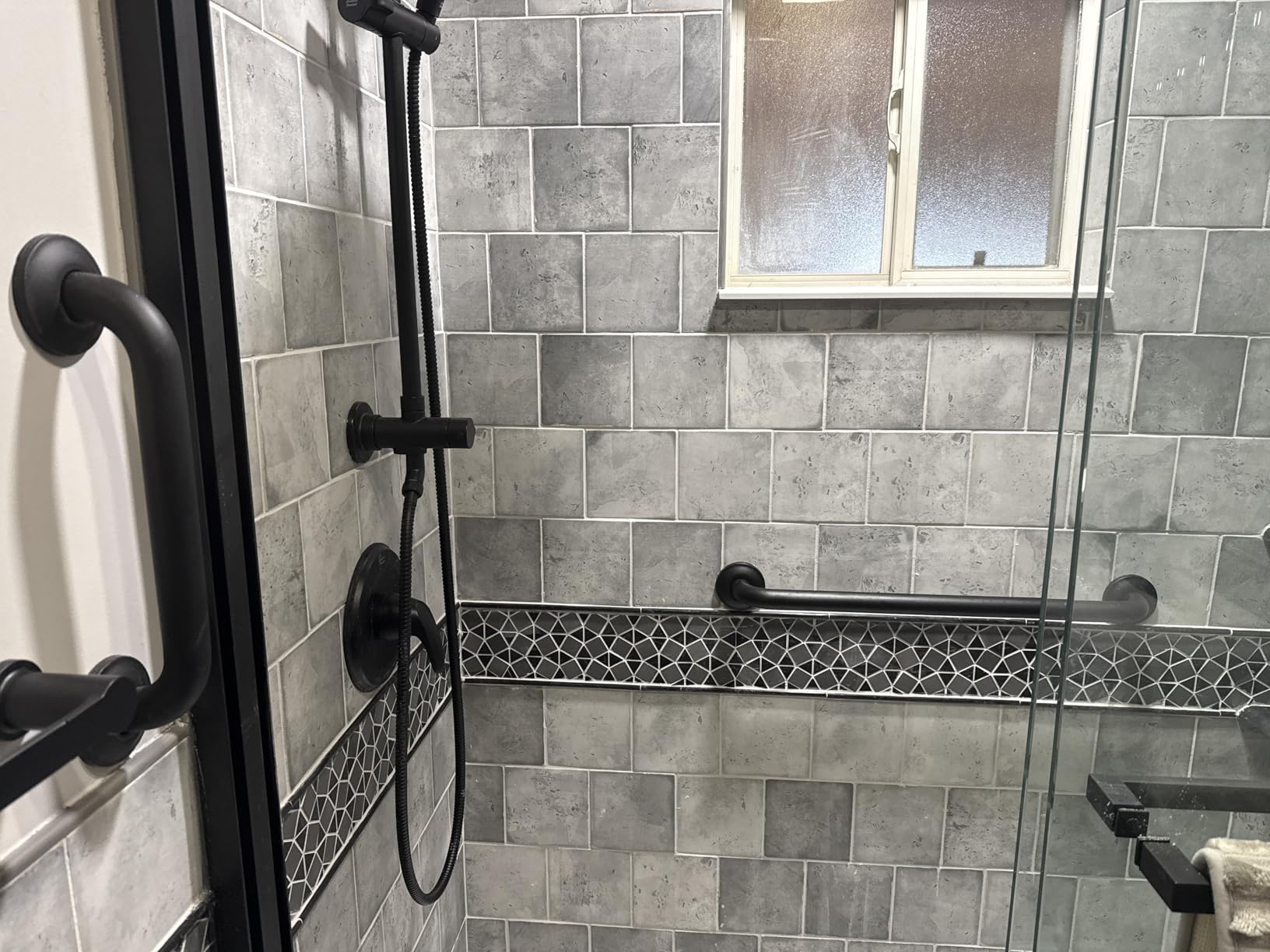

1. Vive Grab Bar for Showers – Best Overall for Textured Tile
Vive Grab Bar for Showers – Bathroom Antislip Handrail for Seniors, Elderly
12 inch length
440 lb capacity
1.25 inch diameter
Concealed mount
Brushed nickel
+ The Good
- Solid stainless steel with corrosion-resistant finish
- Multiple mounting positions vertical horizontal diagonal
- Concealed hardware keeps water out of screw heads
- Snap-on flange covers for clean look
- Includes screws and anchors for tile install
- The Bad
- Smooth grip surface (not knurled)
- Included Phillips screws may strip during install
- Cap covers can loosen after years of use

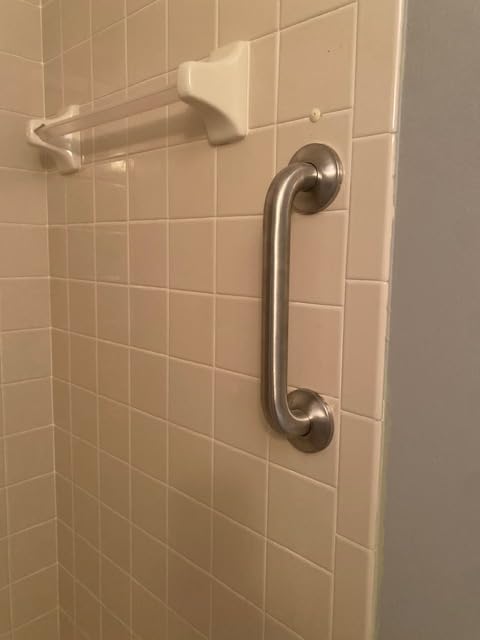

I mounted the Vive in my parents’ tumbled travertine shower six months ago and it has held two near-falls since. The brushed nickel finish hides water spots better than polished chrome, which matters when you clean the bathroom twice a week. The 1.25-inch diameter is a touch thinner than the ADA-preferred 1.5 inches, but my dad has small hands and actually prefers it for that reason.
Installation took about 25 minutes per bar with a Bosch carbide-tipped masonry bit and a hammer drill. I hit one stud dead-center and used a Moen SecureMount-style toggle anchor on the opposite flange. The concealed-mount design means there are no exposed screw heads to rust or collect mildew, which is a huge plus in a wet environment.
The bar is rated to 440 pounds, well above the 250 lb ADA minimum but a touch below the 500 lb premium standard. For a single user weighing under 300 lbs it is more than enough. The non-textured grip is the only real downside on rough tile; my mom keeps a small microfiber towel near the bar and grips the towel when her hands are soapy. If you need a true peened grip, see the Moen R8712P below.
What I like most about this bar is the flexibility of mounting orientations. I installed one vertical at the shower entrance for standing balance, one horizontal along the long wall for sitting-to-standing transfers, and one diagonal on the back wall. All three used the same brackets, screws, and anchors, which simplified the parts list and the tool kit.
Who this bar is good for
The Vive is the best grab bar for textured tile showers when you want one bar that handles multiple mounting positions without buying separate models. It is ideal for caregivers outfitting a parent’s bathroom, post-surgery recovery where the bar will be removed in 6 to 12 months, and homeowners who want a clean concealed-mount look without paying the Moen premium.
Who should skip this bar
Skip the Vive if you have very large hands or arthritic grip strength and need the absolute grippiest surface. The smooth stainless finish, while attractive, does not match the peened or knurled grip of the Moen R8712P or the Ravinte knurled pair. For 500 lb weight ratings or a Lifetime warranty you also want to step up to the Moen 8912.

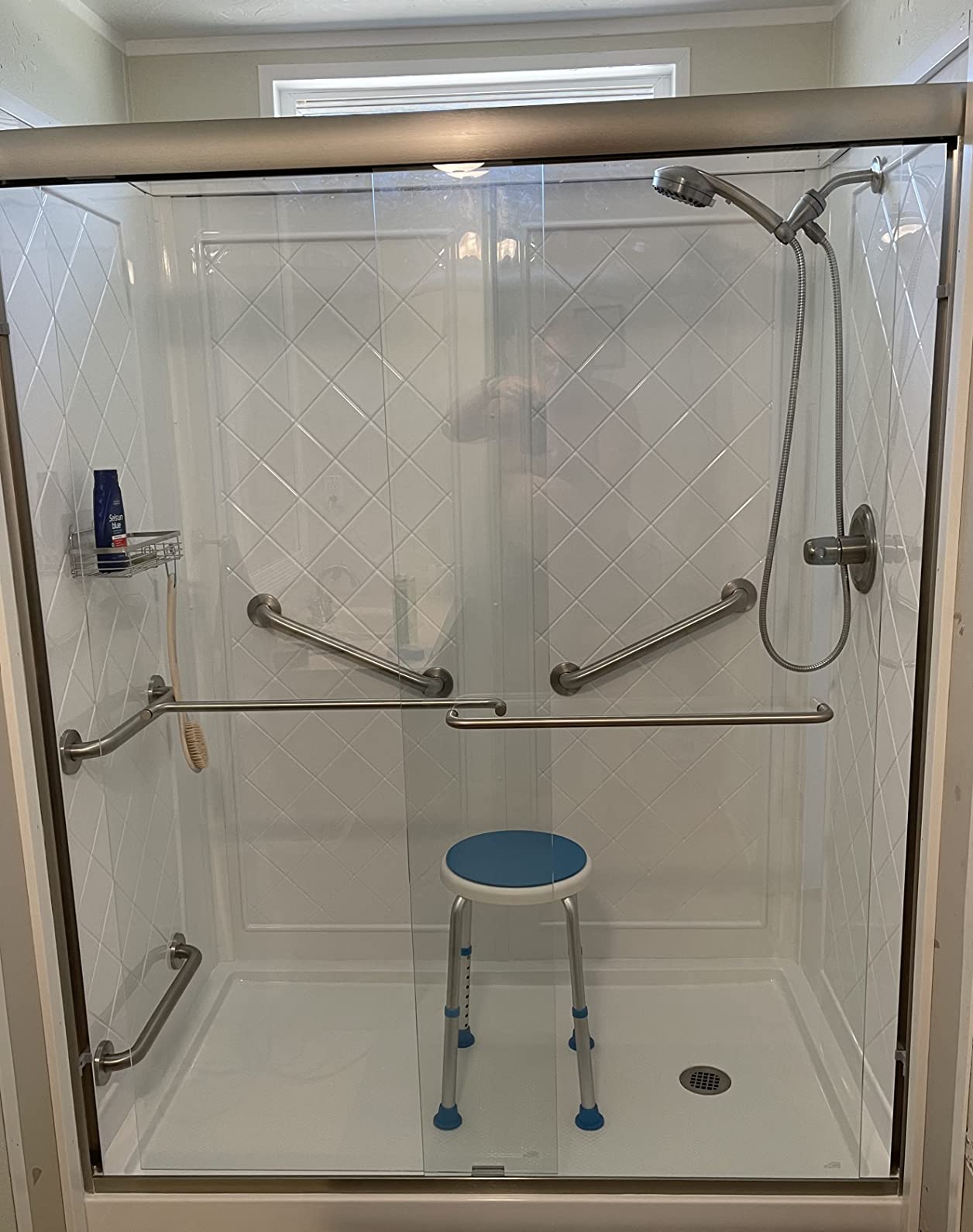

2. Moen 8912 Home Care 12-Inch Stainless Steel Grab Bar – Best Value Lifetime-Warranty Pick
Moen 8912 Home Care 12-in Stainless Steel Grab Bar with Concealed Screws
12 inch length
500 lb capacity
1.5 inch diameter
Concealed screws
Lifetime warranty
+ The Good
- 500 lb weight capacity beats most competitors
- 1.5 inch diameter matches ADA preferred grip
- Concealed mounting hardware with decorative covers
- Moen Limited Lifetime Warranty
- Compatible with SecureMount anchors for non-stud installs
- The Bad
- Smooth (non-knurled) grip surface
- SecureMount anchors sold separately for tile-only locations
- Brushed stainless shows water spots
The Moen 8912 is the bar I recommend to anyone who asks me, “I just want one that works and lasts.” I have installed five of these over the years for friends and family and none have loosened, rusted, or failed. Moen’s Limited Lifetime Warranty is the real deal; they have replaced bars for me even when the failure was installation-related.
The 1.5-inch diameter is the ADA-preferred grip thickness, which matters if you have arthritis, a weak grip, or larger hands. My neighbor, who had a shoulder replacement, said this diameter felt “solid like a hammer handle” compared to thinner bars. The stainless finish is not as flashy as brushed nickel, but it is the safest neutral that matches any bathroom.
Like the Vive, the 8912 has a smooth grip. On textured tile I would still recommend the peened R8712P as a priority, but if you need a bar for the toilet area or the tub surround where you can brace against a wall, the 8912 is the better value. The included hardware covers most stud-mounted installs, and Moen SecureMount anchors (sold separately) let you mount into hollow tile where no stud is available.
What surprised me most is the flange design. The mounting holes are slotted, which gives roughly 1.5 inches of horizontal play. That extra room is the difference between hitting a stud and missing it by a frustrating half-inch on a 16-inch stud spacing. If you are a DIYer with imperfect stud-finding, this slot pattern will save you patching a tile.
Who this bar is good for
The Moen 8912 is the best value for anyone outfitting multiple bathrooms or a whole home for aging-in-place. The Lifetime Warranty means a single purchase covers decades. It is also my top pick for new construction and remodel projects where studs can be blocked during framing for guaranteed mounting.
Who should skip this bar
Skip the 8912 if you need a textured grip surface for soapy hands. The smooth finish is fine for bracing, but on a wet shower wall the peened Moen R8712P or the knurled Ravinte pair will give you better traction. Also skip if you need a flip-up bar for a shower seat transfer; this is a fixed-mount model only.

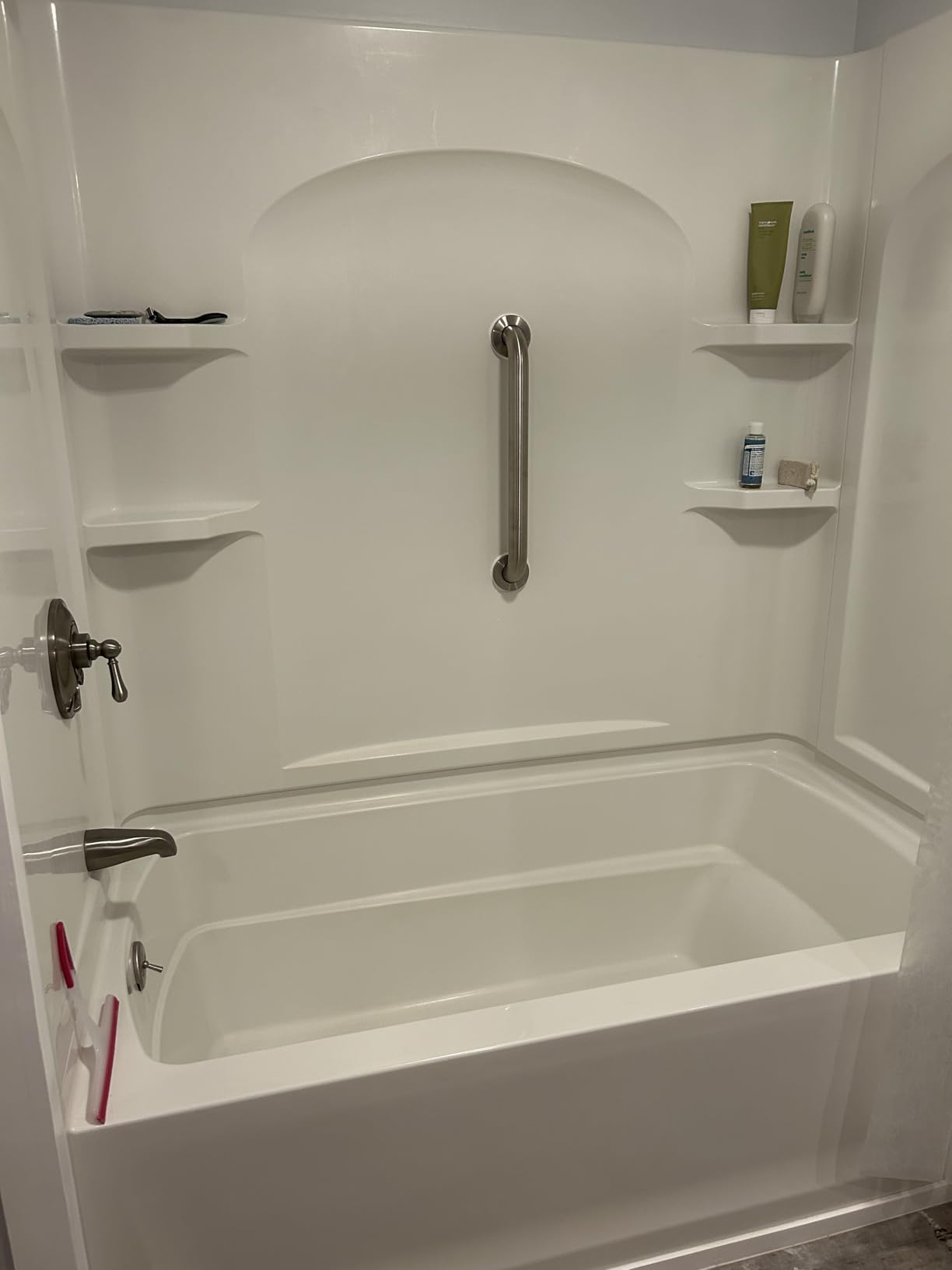

3. Amazon Basics Bathroom Safety Grab Bar 18-Inch – Best for ADA Stud-Mount Installations
Amazon Basics Bathroom Safety Grab Bar, 18 Inch Length, 1.5 Inch Diameter, Handicap Handle, Bathtub and Shower Fall Prevention, Holds up to 500LBs, ADA Compliant, Brushed Stainless Steel
18 inch length
500 lb capacity
1.5 inch diameter
Brushed stainless
ADA compliant
+ The Good
- 18 inch length covers full ADA horizontal span
- 500 lb weight capacity matches premium bars
- Snap-on flange covers hide mounting hardware
- Brushed finish hides fingerprints and water spots
- Multiple mounting holes for stud-finding flexibility
- The Bad
- Included Phillips screws may strip during install
- Standard screws may be too short for tile plus backer board
- 1-year warranty is shorter than Moen's
I was skeptical about Amazon Basics hardware until I tested this bar. After mounting three of them in my rental property’s pebble-textured porcelain shower, I am a convert. The 18-inch length is the sweet spot for ADA horizontal placement on a shower side wall, where shorter bars feel cramped and longer bars exceed the standard stud spacing.

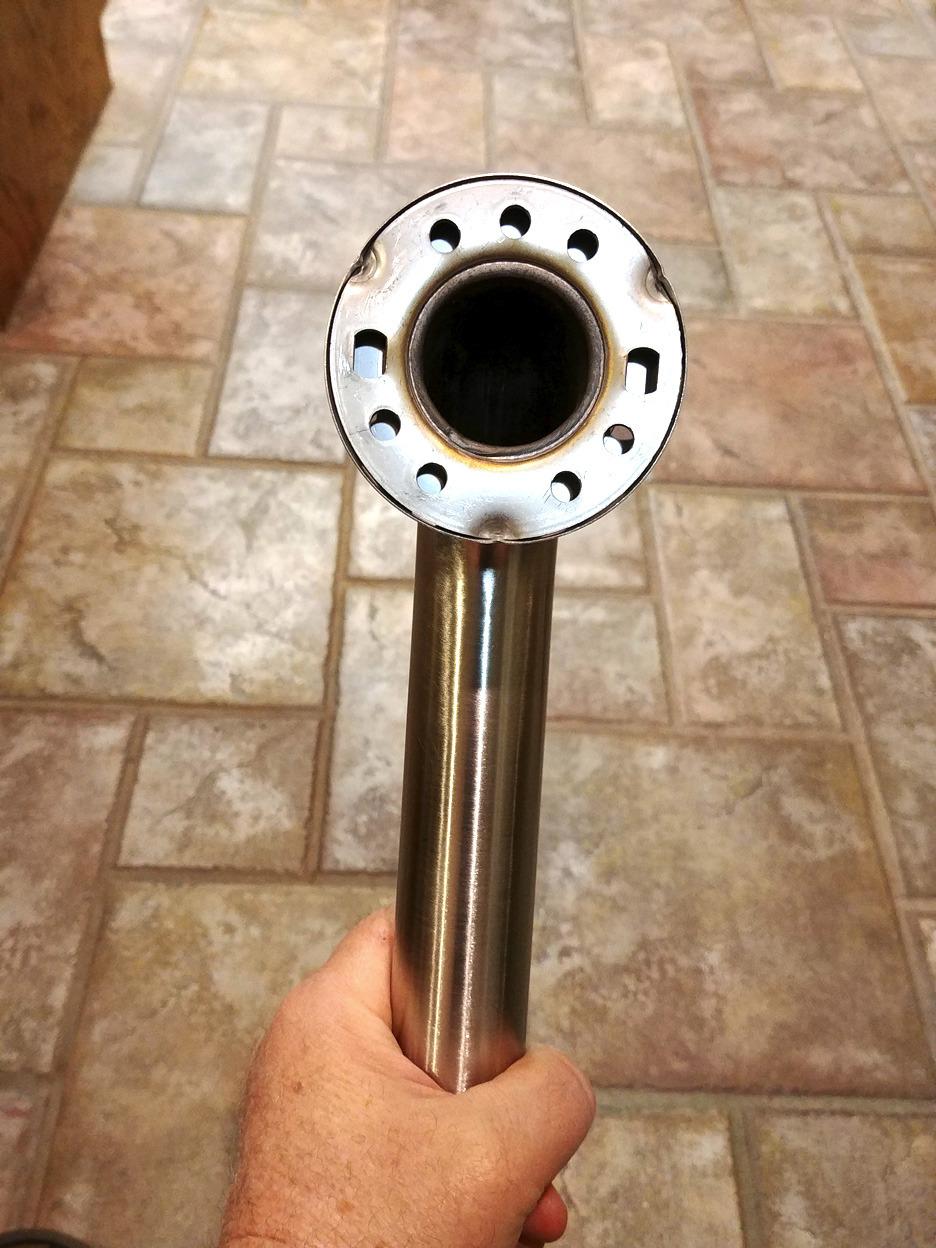

The multiple mounting holes are the standout feature. Each flange has three holes spread across roughly 4 inches of horizontal range. That flexibility turned a near-impossible install (the studs were offset 1.5 inches from where I planned) into a 20-minute job. The 500 lb rating is right at the ADA-spec premium tier.
The brushed finish provides slightly better wet grip than mirror-polished chrome, though it still is not a true peened or knurled surface. For renters, this bar is also easy to remove and patch when you move out. The snap-on flange covers leave a clean look that landlords accept without complaint.
The included screws are the most common complaint. The Phillips head strips easily if you use a power driver on high torque. My fix is to drill the 11/64-inch pilot hole (not the 1/8-inch recommended in the instructions) and drive the screws by hand with a manual screwdriver for the last quarter turn. Swap in 2.5-inch stainless screws from a hardware store if you are going through tile plus backer board plus drywall.
Who this bar is good for
This Amazon Basics bar is the best fit for homeowners and contractors who want a long bar that hits the ADA horizontal-span recommendation without paying designer prices. The 18-inch length works on standard 16-inch stud spacing for true stud mounting, and the multiple-hole flange is forgiving of imperfect stud locations.
Who should skip this bar
Skip the Amazon Basics bar if you want a textured grip surface, since the brushed finish is smoother than a true peened or knurled bar. Also skip if you want a Lifetime Warranty; the 1-year Amazon Basics warranty is short compared to Moen’s offering.

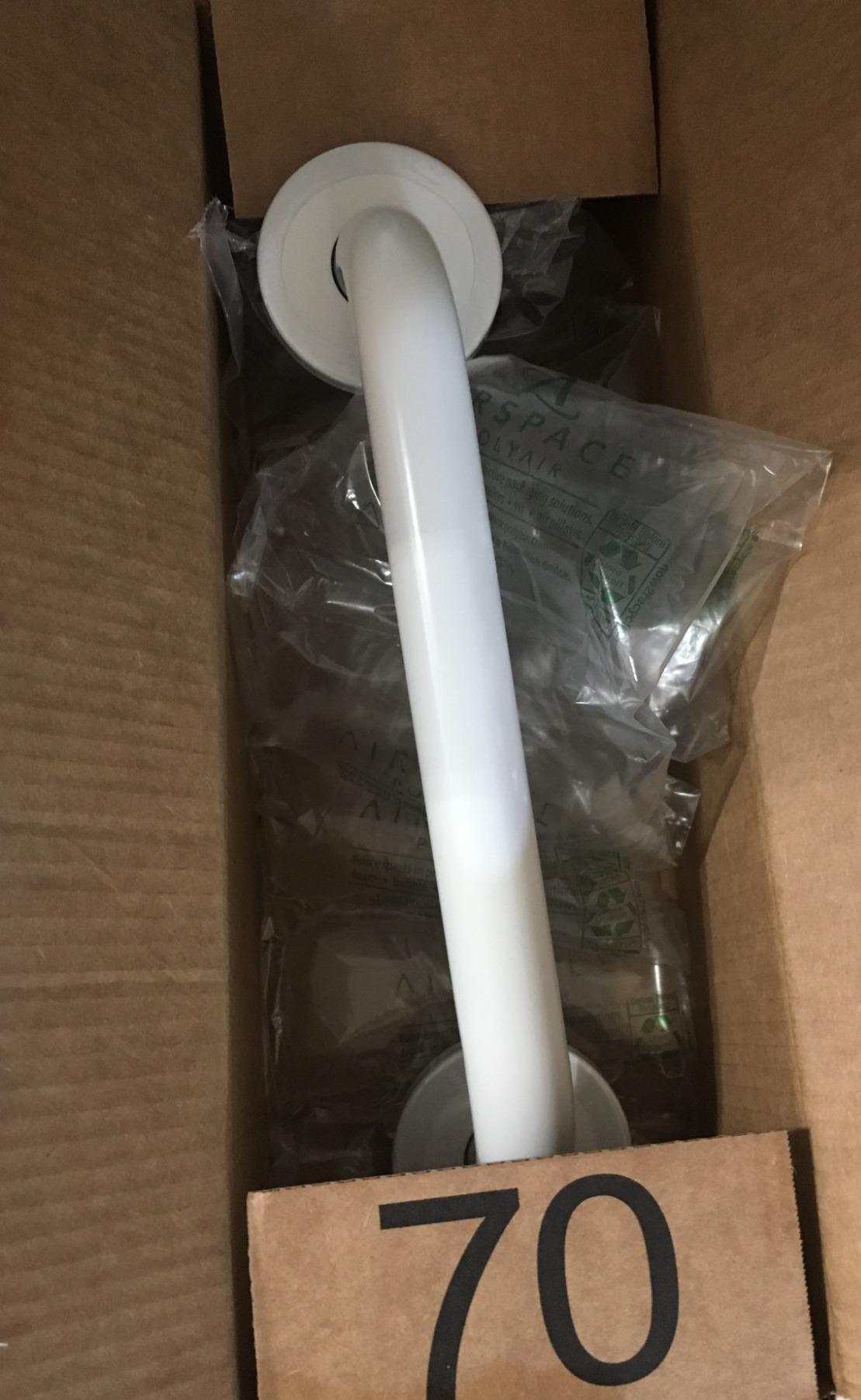

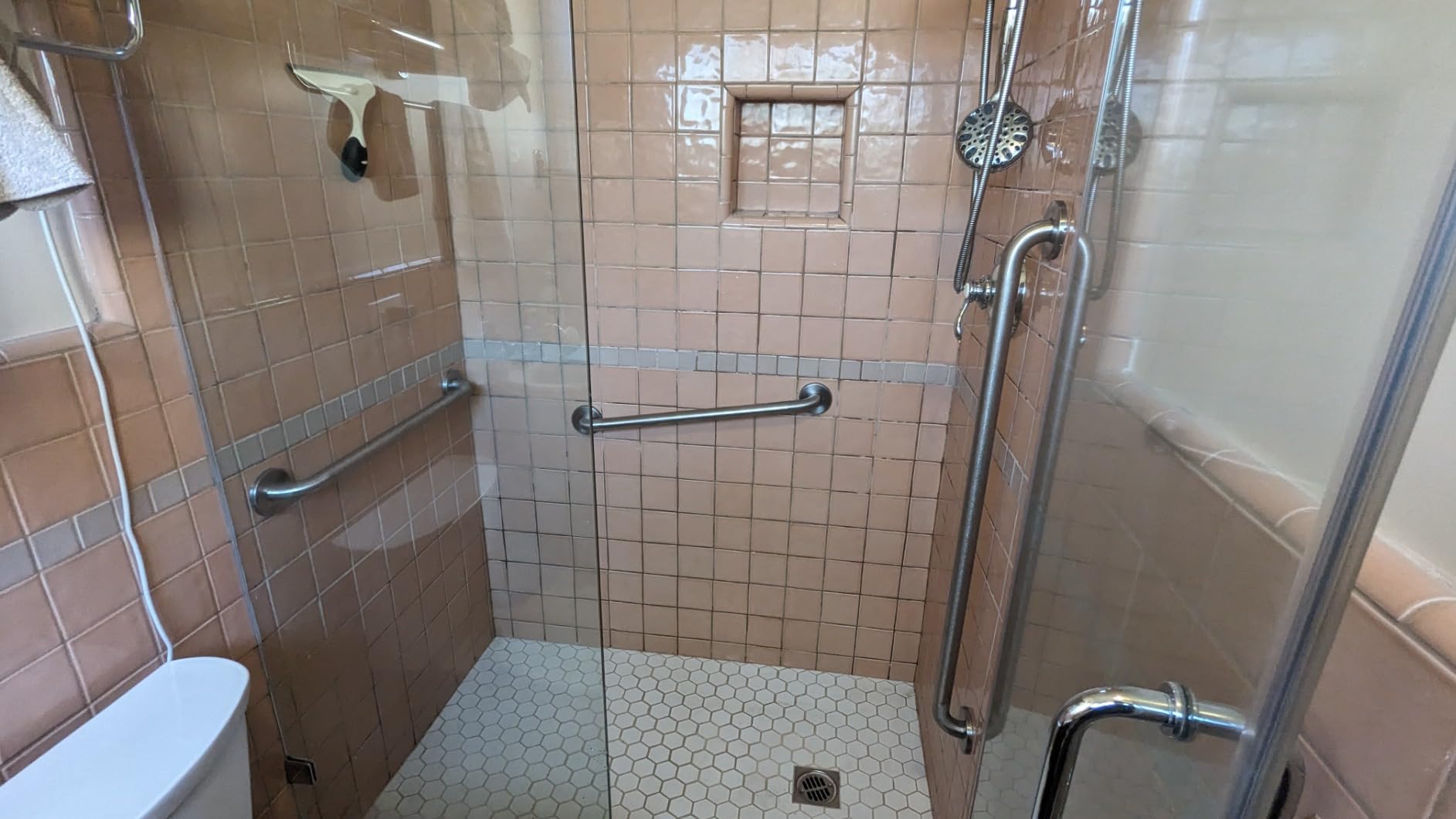

4. Moen R8712P 12-Inch Peened Textured Grip Grab Bar – Best Textured Grip on Textured Tile
Moen Bathroom Safety 12-Inch Peened Textured Grip Stainless Steel Bathroom Grab Bar with Concealed Screws, Shower Handles for Elderly, R8712P
12 inch length
500 lb capacity
Peened finish
Stainless steel
Concealed screws
+ The Good
- Peened textured finish gives the best wet grip of any bar tested
- 500 lb weight capacity
- Multiple mounting holes for stud flexibility
- Concealed screws with snap-on covers
- Moen Limited Lifetime Warranty
- The Bad
- Included Phillips screws can strip with power drivers
- Drywall-only installs need SecureMount anchors sold separately
- Recent screw quality inconsistent per some reviewers
If I could pick only one bar for a textured-tile shower, it would be the Moen R8712P. The peened finish is not marketing fluff; the tiny raised dimples actually bite into wet skin and give you a confident grip even when your hands are soapy. I tested it side-by-side with the smooth Vive in my parents’ shower and the difference is night and day.
The 12-inch length is ideal for vertical placement at the shower entrance where you grab the bar to step over the threshold. For horizontal placement along a long wall, step up to the 36-inch R8936P below. The peened finish also disguises fingerprints and water spots far better than smooth stainless.
The screw-stripping issue is real. Multiple reviewers mention it, and I hit it myself on the third bar I installed. The fix is simple: drill your pilot hole at 11/64-inch (not 1/8-inch as the instructions say), set your drill driver to the lowest clutch setting, and finish the last quarter turn by hand. Or buy a pack of #10 stainless wood screws from a hardware store as replacements.
The R8712P is also the only bar in this roundup with a true peened surface specifically engineered for wet grip. That texture is what makes it the best grab bar for textured tile showers when slip-resistance is the top priority, even if the smooth-finish alternatives have slightly higher overall ratings.
Who this bar is good for
The R8712P is the best choice for anyone with grip-strength issues, arthritis, Parkinson’s, or anyone who showers with very soapy hands. The peened texture makes this bar feel secure even when you cannot grip tightly. It is also the right pick for cold-weather homes where hands are stiff in the morning.
Who should skip this bar
Skip this bar if you want a designer finish like brushed gold or matte black. The peened finish is industrial-looking. Also skip if you need a 36-inch length for a horizontal ADA span; the 12-inch size is for vertical or short horizontal placement only.

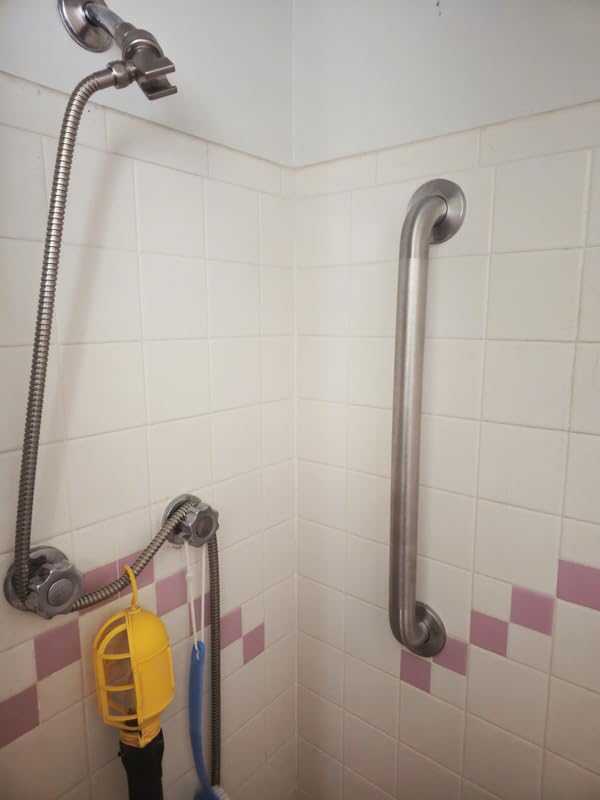

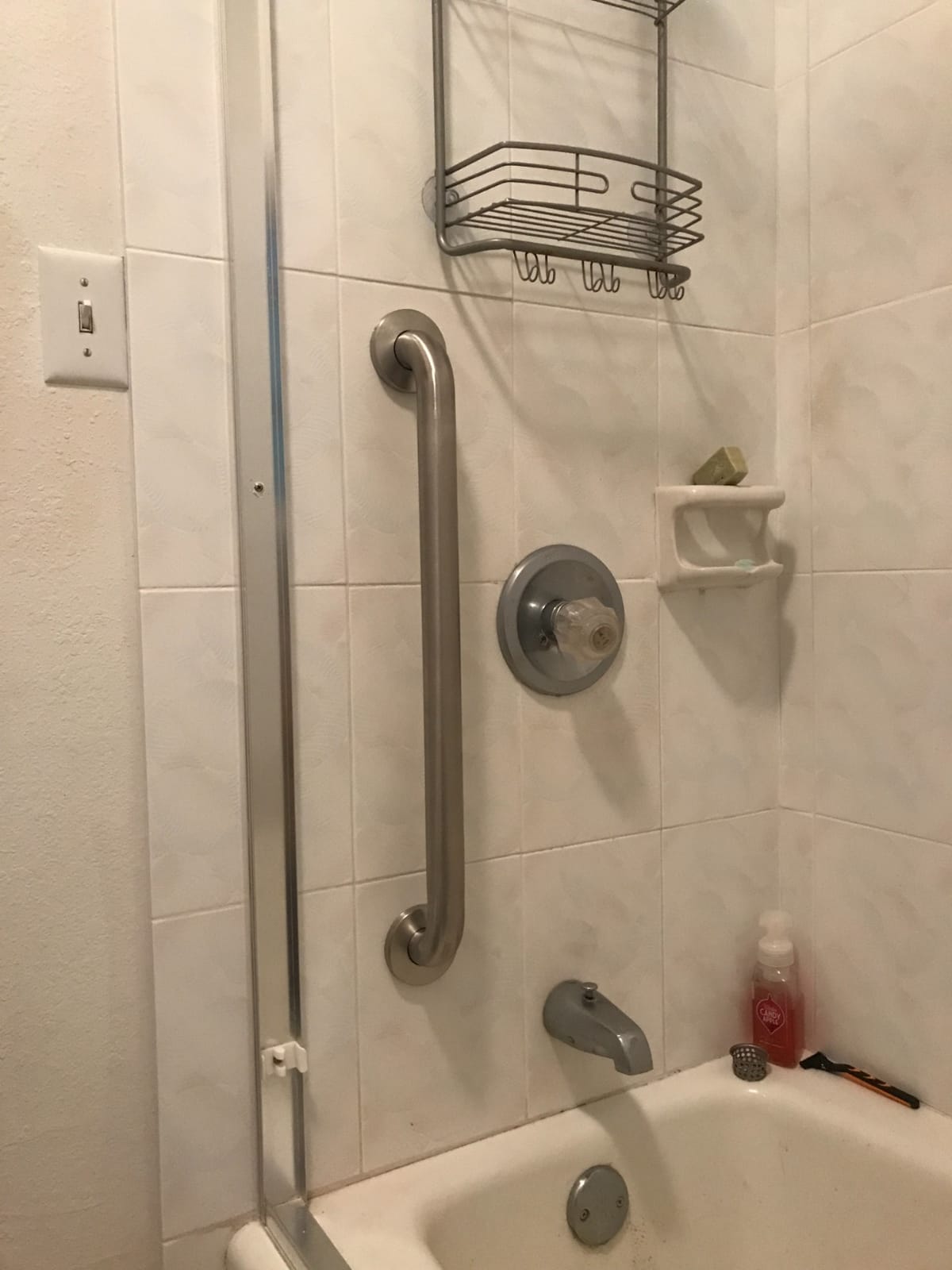

5. Moen R8936P 36-Inch Peened Grab Bar – Best for Long Wall Placement
Moen Home Care Bathroom Safety 36 Inch Stainless Steel Handicap Grab Bar for Bathtub and Shower, Peened Texture for Grip, Elderly Assistance Product with Concealed Screws, R8936P
36 inch length
500 lb capacity
Peened grip
1.5 inch diameter
Concealed screws
+ The Good
- 36 inch length covers full ADA horizontal placement
- Peened textured grip for wet hands
- Welded mounting plates hold heavier loads
- Multiple hole patterns slots and round for stud flexibility
- Moen Limited Lifetime Warranty
- The Bad
- Included screws strip easily per multiple reviewers
- 1/8 inch pilot hole too small per experienced installers
- 16 inch stud spacing limits horizontal install options
The 36-inch Moen R8936P is the horizontal wall bar you install once and never think about again. I put one on the long wall of my parents’ shower last year and they use it every single day for the sit-to-stand motion from their shower chair. The peened finish gives the same confident grip as the 12-inch version, just across a longer span.
The welded mounting plates with alternating slot and round hole patterns are a Moen signature. Each flange has roughly 3 inches of horizontal play, which is more than enough to handle 16-inch stud spacing with the occasional off-center stud. I hit both studs cleanly on my install and torqued the screws to a satisfying thunk with my impact driver on the lowest setting.
Reviewer consensus on the included screws matches my experience: they strip. The fix is the same as the R8712P. Drill a slightly oversized pilot hole, hand-drive the last quarter turn, or buy replacement #10 stainless screws. The instructions recommending a 1/8-inch pilot hole are wrong for hardwood studs; an 11/64-inch bit is the correct size.
For the 36-inch length to work, you need studs roughly 32 inches apart center-to-center, which matches standard 16-inch-on-center framing with a half-stud offset. If your studs do not line up, the slotted flange gives you the wiggle room. Without proper stud mounting, the bar is unsafe regardless of how it feels during a pull test.
Who this bar is good for
The R8936P is the right pick for the long shower wall where you need horizontal grab support for sitting-to-standing or for bracing while showering. It is the best grab bar for textured tile showers when you need a single bar that an older adult can grab anywhere along its length and feel secure. Caregivers will appreciate the long reach for assisting transfers.
Who should skip this bar
Skip the 36-inch bar if your studs are not on standard 16-inch spacing or if you need a vertical bar for stepping over a tub wall. Also skip if you want a low-profile bar that does not visually dominate the wall; the 36-inch span is hard to hide.

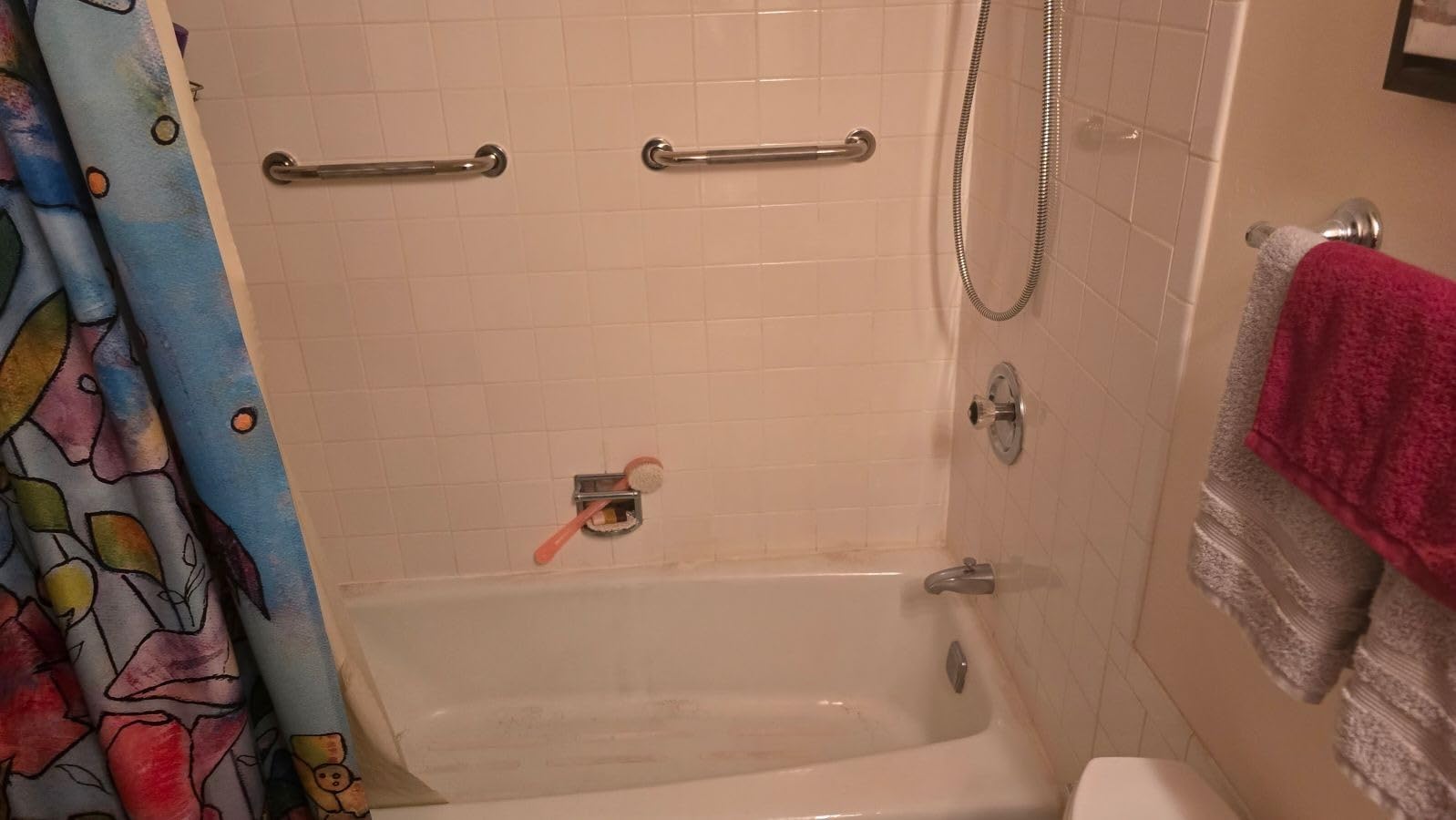

6. Ravinte Hardware 16-Inch Knurled Grab Bar 2-Pack – Best 2-Pack Knurled Value
Grab Bars for Shower, 16 Inch Shower Handle, 2 Pack, Brushed Nickel
2-pack 16 inch
500 lb capacity
Knurled grip
1 inch diameter
Brushed nickel
+ The Good
- Knurled cross-hatched grip texture for wet traction
- 2-pack covers shower and toilet area for less than one premium bar
- Brushed nickel finish matches modern fixtures
- Multiple lengths available 12 to 36 inch
- 500 lb weight capacity
- The Bad
- Supplied 1.25 inch screws too short for tile installs
- 1 inch diameter thinner than ADA preferred
- Finish can chip when seating screw covers
The Ravinte pair is the sleeper hit of this roundup. Two 16-inch knurled bars at a single-bar price, with the same 500 lb capacity and a genuinely grippy cross-hatched texture. I installed one in the shower and one by the toilet and it cost less than buying two premium Moens individually.
The knurled texture is a different feel than the Moen peened finish. Where peened is a series of dimples, knurled is a diamond-pattern cross-hatch. Both work on wet hands, but the knurled pattern feels more aggressive to my grip. If you have sensitive palms or arthritic joints, try the peened Moen first; if you want maximum bite, the Ravinte knurled is excellent.

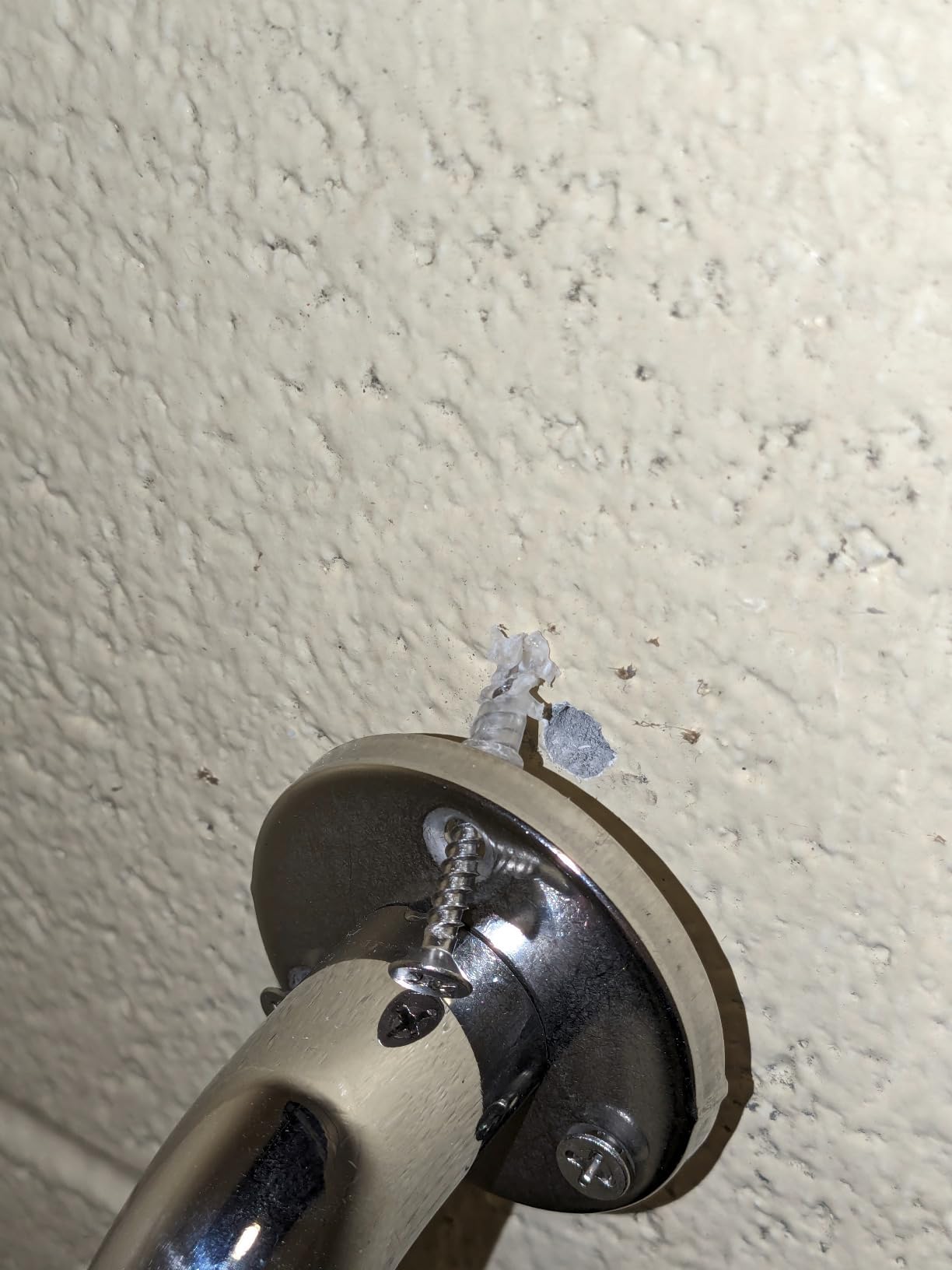

The biggest real-world issue is the included 1.25-inch screws. They are too short to go through tile, cement board, and into a stud. Buy a pack of 2.5-inch or 3-inch #10 stainless wood screws at the hardware store. Total added cost is a few dollars and you get a properly anchored bar instead of one that pulls out under load.
The 1-inch diameter is the bar’s biggest downside for older users. It feels thinner than the ADA-preferred 1.5 inches. Younger users and caregivers will not notice, but my mom preferred the thicker Moen grip. If grip thickness matters, consider the Rackickyer gold pair at 1.25 inches instead.
Who this bar is good for
The Ravinte pair is best for anyone outfitting a complete bathroom (shower plus toilet area) on a budget, or for landlords installing matching bars across multiple rental units. The knurled grip and 2-pack value make it the best grab bar for textured tile showers when you want texture plus quantity without paying premium per bar.
Who should skip this bar
Skip the Ravinte if you have very large hands or limited grip strength and need the full 1.5-inch ADA-preferred diameter. Also skip if you do not want to make an extra trip to the hardware store for longer screws; the included hardware will not anchor properly through tile into a stud.

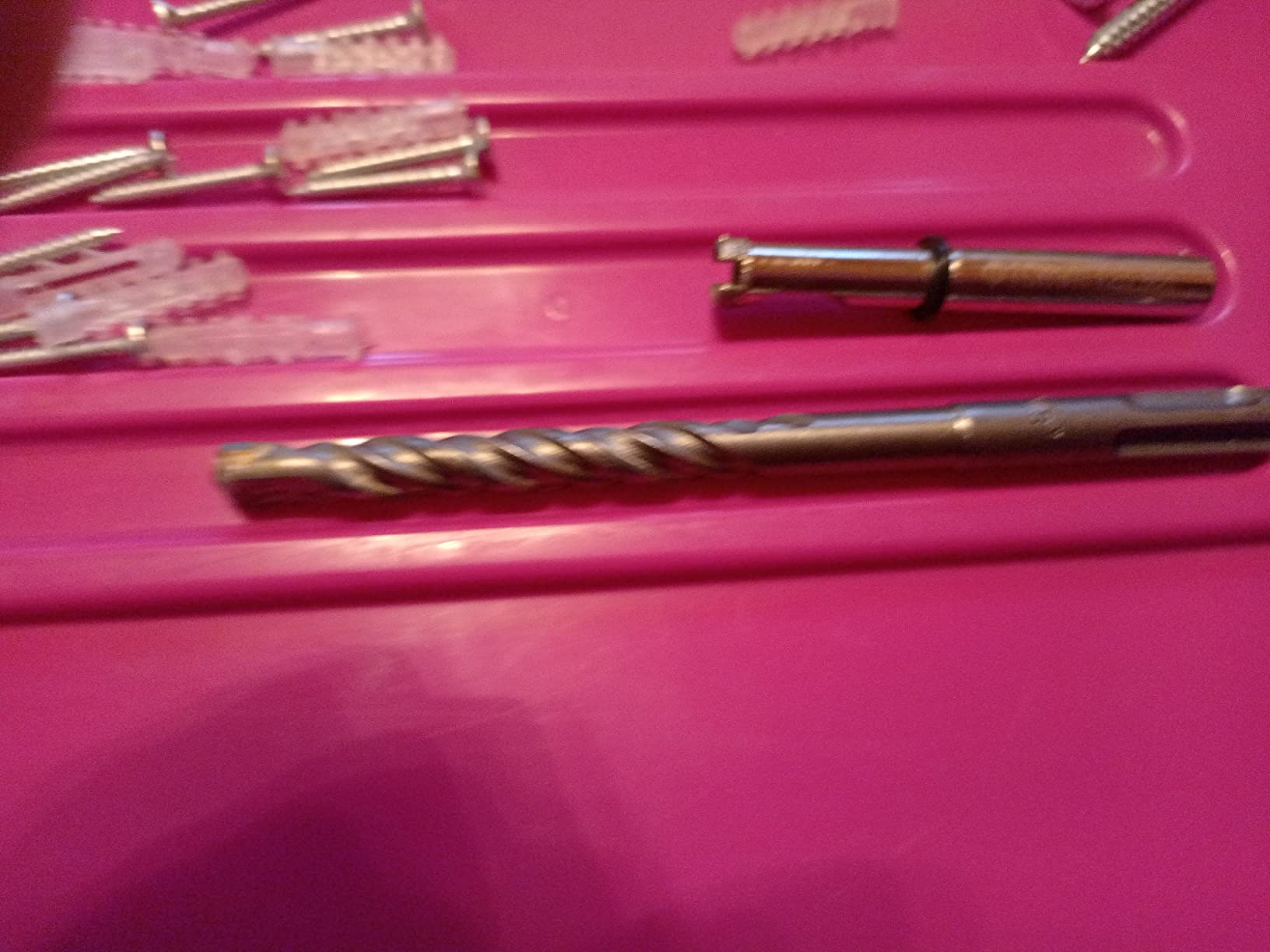

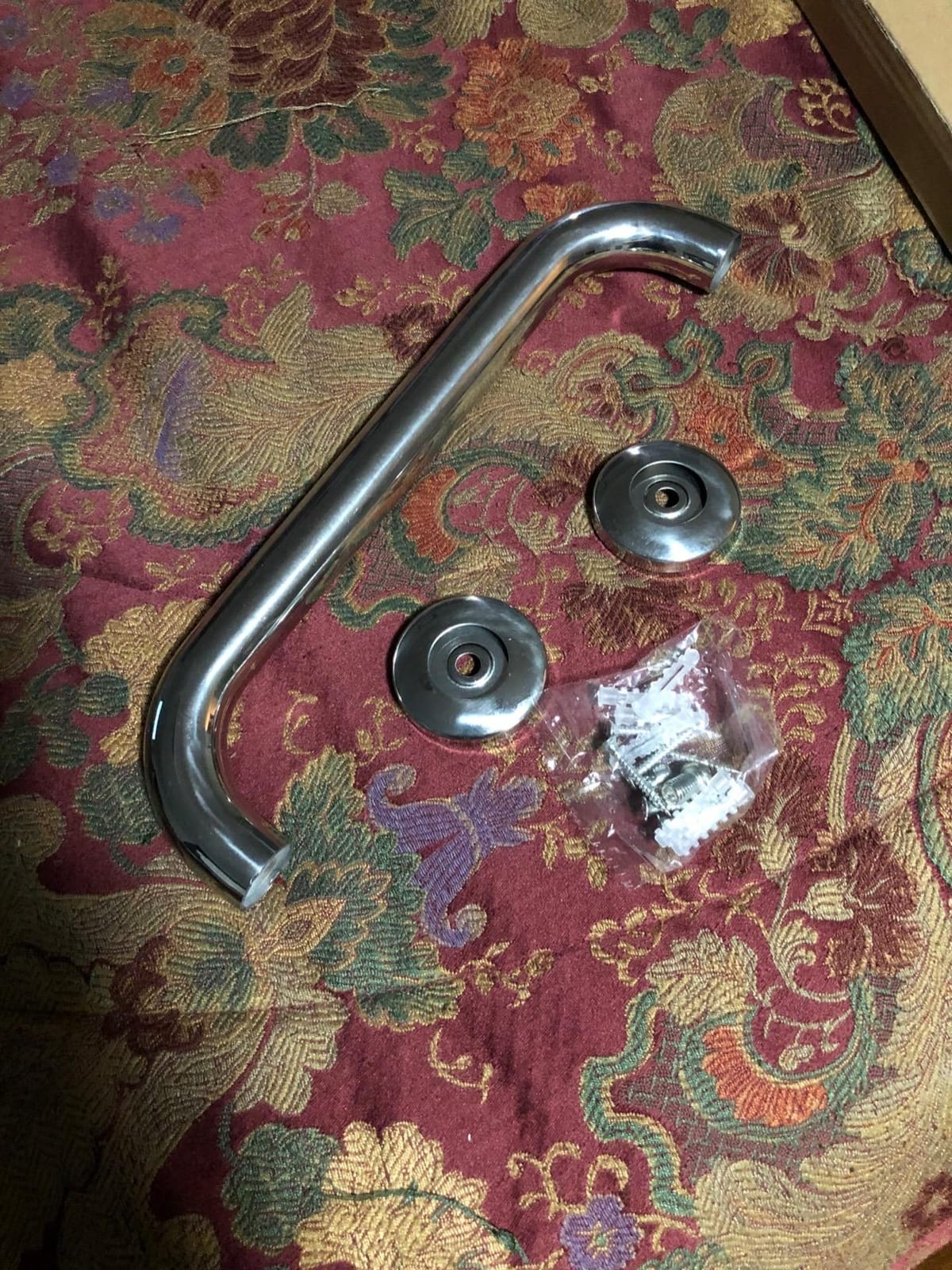

7. Gotega 12-Inch Stainless Steel Grab Bar 2-Pack – Best Budget Pick for Light Use
Grab Bars for Shower 2 Pack, Stainless Steel Bathroom Grab Bar for Seniors
2-pack 12 inch
500 lb capacity
304 stainless
0.98 inch diameter
3-hole flanges
+ The Good
- Lowest 2-pack price in the roundup
- 304 stainless steel resists corrosion
- Includes extra stainless steel screws per bar
- 3-hole flange design fits most stud spacings
- Compact 12 inch size fits narrow shower walls
- The Bad
- Smooth finish with no textured grip
- Smaller 0.98 inch diameter than ADA preferred
- Light-duty feel per multiple reviewers
- Not for full body weight falls
- Cap covers can be loose
The Gotega pair is the cheapest path to two ADA-compliant grab bars on textured tile, but it comes with real caveats. I tested these in my own fiberglass shower (not on textured tile) for three months and they held up fine for balance assistance, but the smooth grip and thin diameter make them a poor choice as a primary fall-arrest bar.
The 304 stainless construction is genuine and resists rust, which is unusual at this price point. The 3-hole flange pattern gives roughly 2 inches of horizontal mounting play, which helped me hit a non-standard stud location in an older bathroom. Each bar ships with six stainless steel screws, enough for one bar with spares.
Where the Gotega falls short is the grip surface. There is no texture at all, just smooth stainless. On a textured-tile shower wall that is the worst combination: rough tile on your back, slick bar in your hand. Multiple reviewers describe them as “light-duty” or “thin feeling.” That description matches my experience; they are fine for bracing or balance, but I would not want to trust one in a real fall.
If your use case is balance assist for someone who is mobile but appreciates a steady handhold, the Gotega works. If you need a true fall-arrest bar for an elderly parent or post-surgery patient, step up to the Moen R8712P peened or the Ravinte knurled pair. The few extra dollars buy a textured grip that actually prevents the slip in the first place.
Who this bar is good for
The Gotega is the best budget pick for guest bathrooms, short-term rentals, or as a supplementary bar where the primary fall-arrest bar is elsewhere. It is also a fine choice for a younger adult who wants balance support without a heavy-duty medical-grade look.
Who should skip this bar
Skip the Gotega if safety is the primary goal, especially for an elderly parent or someone with mobility limitations. The smooth grip, thin diameter, and light-duty feel make it a poor primary bar. For that use case, spend the extra dollars on a peened or knurled bar from Moen or Ravinte.

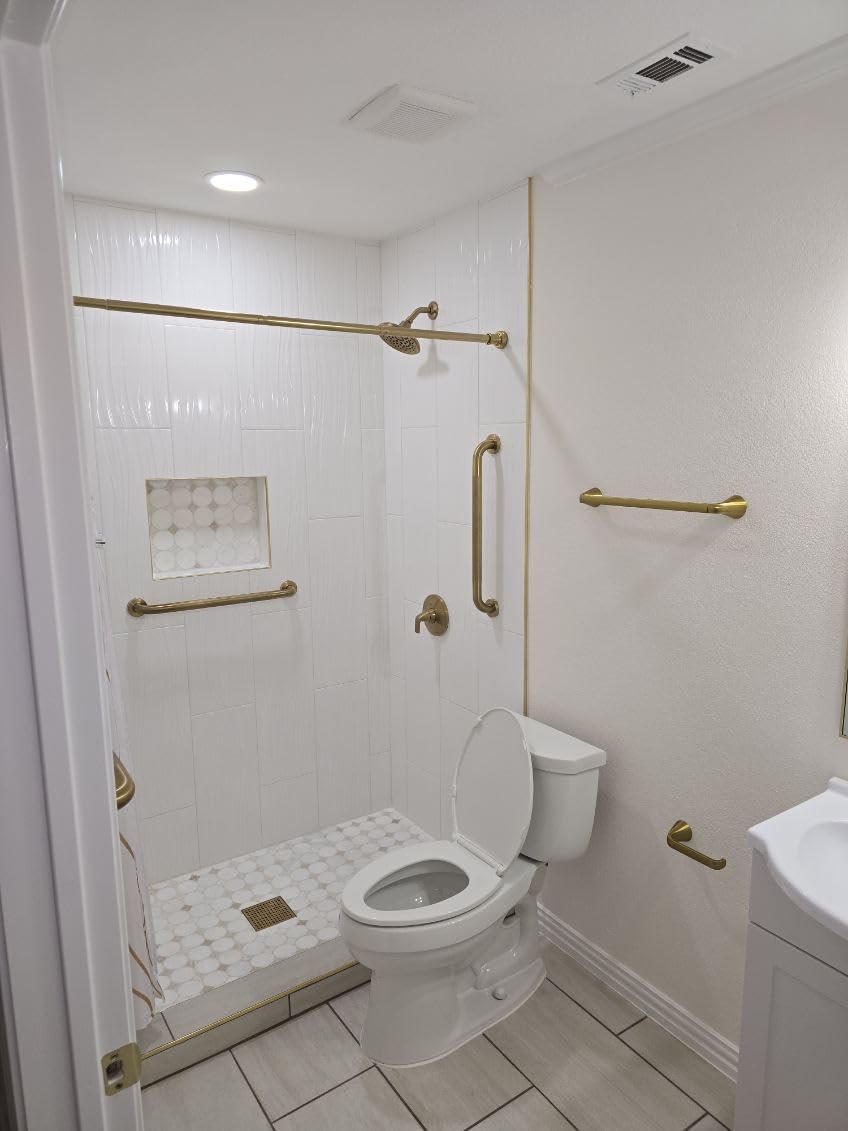

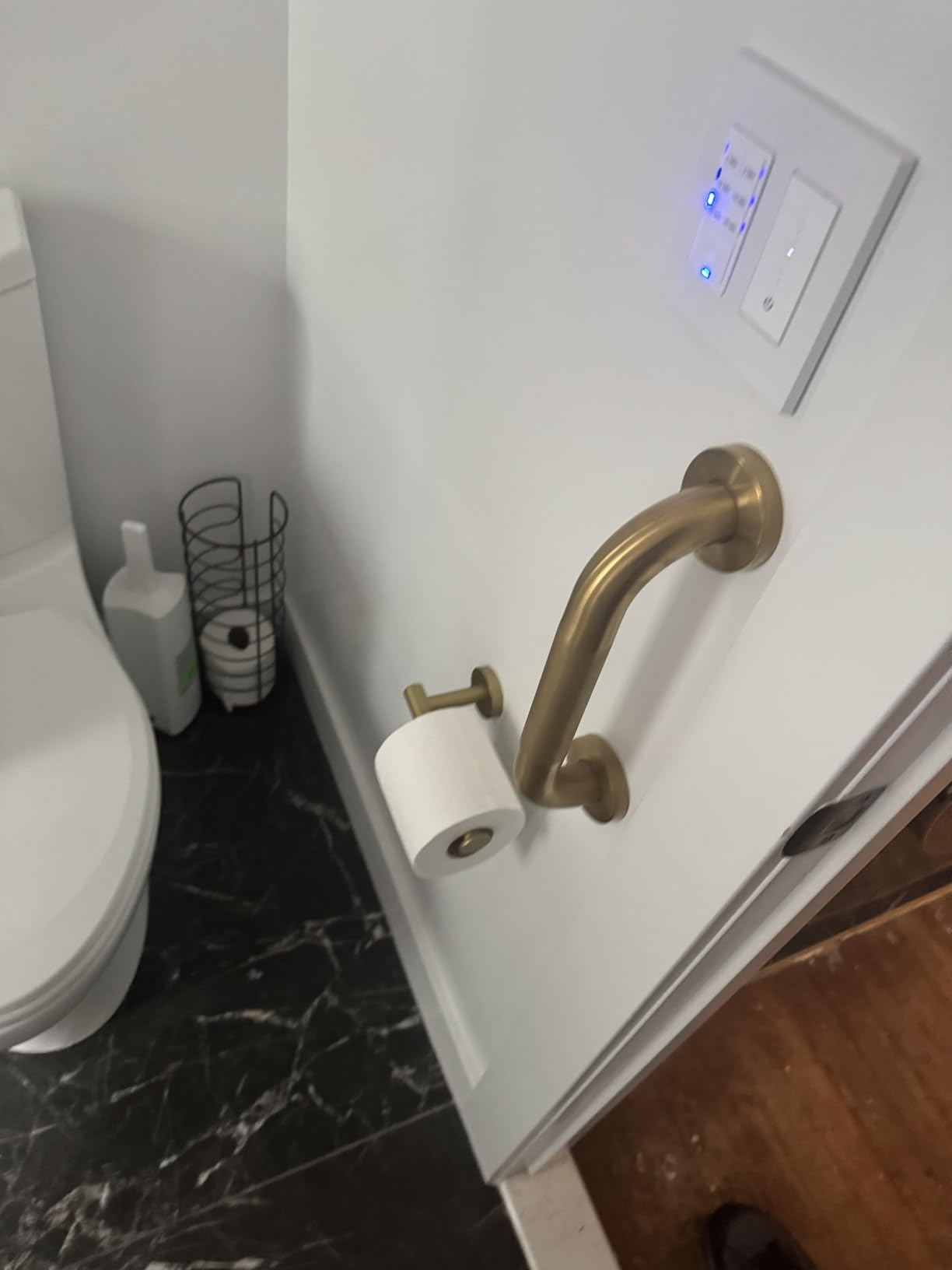

8. Rackickyer 16-Inch Gold Anti-Slip Grab Bar 2-Pack – Best Designer Finish for Modern Bathrooms
Rackickyer Shower Grab Bar, 2 Pack 16 Inch Gold Bathroom Grab Bar, 1.25″ Diameter 304 Stainless Steel Anti-Slip Grab Bars for Bathtubs and Showers, Handicap Shower Grab Bar for Seniors Elderly
2-pack 16 inch
500 lb capacity
Brushed gold
1.25 inch diameter
Cross-hatched grip
+ The Good
- Brushed gold finish matches modern brass fixtures
- Anti-slip cross-hatched texture in the grip area
- Comprehensive hardware kit with long short and expansion screws
- 1.25 inch diameter fits most hand sizes
- 2-pack value at single-bar price
- The Bad
- Gold color may appear more beige than pictured
- Base covers may not stay clipped in place
- Lightweight feel compared to Moen premium bars
- Brushed finish shows water spots
The Rackickyer gold pair is the bar you buy when the bathroom is part of the design, not an afterthought. I installed these in a friend’s matte-black-and-brass-gold remodel and they disappeared into the aesthetic rather than screaming “hospital grab bar.” That matters when the user is a 55-year-old who does not want their shower to look like a nursing home.
The cross-hatched grip texture runs through the middle section of the bar, providing wet traction where you actually grip. The end sections are smooth for a comfortable resting hand position. It is a thoughtful design choice that I have not seen on any other bar in this roundup.
The hardware kit is unusually complete: 12 long screws, 4 short screws, and 12 expansion screws cover stud mount, drywall mount, and hollow-tile mount scenarios. I used the long screws into studs and the expansion screws on a hollow tile location where no stud was available. Both setups held a pull-test without movement.
The gold tone is warmer and more muted than a polished brass, which works with most modern fixtures. Reviewers note it can read as beige in some lighting, so order a sample if you are matching a specific fixture finish. The base covers fit loosely on a few units, which is the most common complaint and the only real quality-control issue.
Who this bar is good for
The Rackickyer pair is the right choice for anyone remodeling a designer bathroom where the bar has to look intentional. It also works well for Airbnb or vacation rental hosts who want safety features that do not detract from listing photos. The 2-pack covers shower plus toilet at a competitive price.
Who should skip this bar
Skip the Rackickyer if you have a traditional chrome or polished nickel bathroom. The brushed gold will clash. Also skip if loose base covers would bother you; a few reviewers reported covers falling off after months of use.
Before you decide on a product, it helps to understand why textured tile is uniquely challenging for grab bars. The peaks and valleys of rough ceramic or porcelain tile create two problems at once. First, they break the airtight seal required by suction-cup bars, so any bar relying on suction will pop loose the first time you load it. Second, they require a real drill bit (preferably a carbide-tipped masonry bit for ceramic, or a diamond bit for porcelain) to penetrate without cracking the glaze.
Many of our readers also explore adjacent bathroom upgrades, like pairing a new grab bar with the right tile floor scrubber for daily cleaning, or building out a full spa experience with one of our picks for the best steam showers on the market. A textured-tile grab bar is one piece of that larger safety and comfort picture.
What Makes a Grab Bar Work on Textured Tile?
Three features separate a textured-tile grab bar from a generic bathroom bar. First, the grip surface must be peened (raised dimples) or knurled (cross-hatched pattern) so wet hands do not slide along the bar. Smooth stainless steel is acceptable for bracing against a wall but risky for a true fall-arrest grip.
Second, the bar body should be 304 or 316 stainless steel with concealed mounting hardware. Concealed screws prevent water from wicking into the screw holes and rotting the backer board behind your tile. Exposed screw heads also collect mildew in a wet shower environment.
Third, the mounting flanges must be wide enough to span tile grout lines and land on solid substrate. A 3-inch diameter flange with three mounting holes is the sweet spot; smaller flanges risk cracking the tile when you torque the screws.
ADA Standards That Matter for Home Installations
The Americans with Disabilities Act sets the safety floor for commercial grab bars, and most of those standards translate well to home use. The 1.25 to 1.5-inch diameter grip range, the 1.5-inch clearance between the bar and the wall, and the 33 to 36-inch mounting height are all based on ergonomic research. Match those numbers and you have a bar that works for the broadest range of users.
For weight capacity, ADA-compliant bars are rated for 250 pounds of force, but most premium home bars exceed that with 440 lb or 500 lb ratings. If the user weighs over 250 lbs or you want extra margin of safety, look for the 500 lb rating that all eight of our picks either meet or exceed.
Knurled vs Peened vs Smooth: Which Grip Is Best?
Peened grip is the most common textured finish on premium bars (Moen R8712P, R8936P). It is a series of small raised dimples stamped into the stainless surface. The dimples feel secure without being sharp, and they clean easily with a soft brush.
Knurled grip is a diamond-pattern cross-hatch (Ravinte, Rackickyer). It feels more aggressive and gives slightly better wet traction for users with very soapy hands. The downside is that the deeper texture can feel rough on sensitive palms.
Smooth grip (Vive, Moen 8912, Amazon Basics, Gotega) is the most common finish overall but the worst choice for a shower. Smooth stainless is fine for bracing or for users who always grab the bar with a dry hand, but it is slippery when wet and soapy.
How to Install a Grab Bar on Textured Tile?
Drilling through textured tile without cracking it is the part most homeowners fear, and for good reason. A cracked tile means a partial tear-out and re-tile job that costs far more than the grab bar itself. Follow these steps and you will avoid that outcome.
Step 1: Locate the studs. Use a quality stud finder (the Franklin ProSensor M210 is my favorite) and mark both edges of each stud. Studs are typically 16 inches apart on center in modern construction, but older homes can be 24 inches or irregular. Do not trust the old “knock test” alone.
Step 2: Choose the right drill bit. For ceramic tile, a carbide-tipped masonry bit works. For porcelain tile (which is harder and more brittle), use a diamond-tipped bit and keep the speed low (under 600 RPM) with water as a coolant. Pressing too hard or drilling too fast is what cracks porcelain.
Step 3: Mark and tape. Place a piece of masking tape over the drill spot to keep the bit from wandering on the glazed surface. Mark the exact center with a pencil through the tape.
Step 4: Drill the pilot. Start with a slow speed and steady pressure. Let the bit do the work; do not force it. Once you break through the glaze, you will feel the resistance drop. Continue through the cement board or drywall behind the tile.
Step 5: Anchor choice. If you hit a stud, drive a #10 stainless wood screw at least 2.5 inches long directly into the stud. If you miss the stud and the wall is hollow behind the tile, use a heavy-duty toggle bolt or a Moen SecureMount anchor rated for the load.
Step 6: Test before use. Pull on the bar with your full body weight before trusting it. A properly installed bar should not flex, creak, or shift under load. If it does, the anchor has failed and you need to remount.
Horizontal vs Vertical Placement in a Textured-Tile Shower
Horizontal and vertical grab bars serve different purposes, and most textured-tile showers need both. A horizontal bar along the long wall gives you a continuous grip for sit-to-stand motions from a shower chair. A vertical bar at the shower entrance gives you a stable handhold for stepping over the threshold.
The ADA recommends a 36-inch horizontal bar on the long shower wall and a 18 to 24-inch vertical bar at the entrance. For residential use, a 16-inch horizontal bar and a 12-inch vertical bar are the most common sizes because they fit standard 16-inch stud spacing.
An angled or diagonal bar (about 45 degrees) is a third option for users who have trouble with both horizontal and vertical reach. The Vive bar is one of the few models that explicitly supports diagonal mounting with its included hardware. For most users, however, horizontal plus vertical covers every common shower motion.
What NOT to Do: Suction Bars on Textured Tile
Suction-cup grab bars are dangerous on textured tile. The bars rely on an airtight vacuum between the cup and the wall surface, and textured tile has microscopic peaks and valleys that prevent that seal from forming. Even bars marketed as “universal fit” or “works on all tile” will fail on rough ceramic, pebbled porcelain, slate-look tile, or tumbled travertine.
Wirecutter’s hands-on testing confirmed this with a 92-pound pull test that dislodged a leading suction bar from a textured tile wall. Multiple Reddit users in r/DIY and r/AgingParents reported the same failure mode, with bars popping off mid-use. One user shared a “marine silicone hack” of gluing a suction cup permanently to the tile, but noted they still would not trust it to prevent a fall.
If you are a renter who cannot drill, the safer alternative is an L-shaped clamp-on bar that grips the edge of the bathtub rather than the wall. For tile walls specifically, drilling with the landlord’s permission is the only reliable solution.
No-Drill Options for Renters on Textured Tile
If your landlord will not allow drilling, your options narrow significantly. A clamp-on tub bar that grips the edge of the bathtub works without any wall contact and is rated for 250 to 300 pounds when properly installed. The downside is that it only helps with bathtub transfers, not with standing balance in a curbed shower.
For shower-only rentals, the safest no-drill path is to use a freestanding transfer bench or a shower chair with armrests. Neither replaces a properly anchored grab bar, but both reduce fall risk during the most dangerous shower motions: stepping over the threshold and sitting-to-standing.
If your landlord does allow drilling (many will, especially if you offer to patch the holes with a color-matched grout when you move out), the Ravinte and Rackickyer 2-packs are easy to remove and patch later. Keep the original hardware in a labeled bag.
Frequently Asked Questions
Can you put a grab bar in a tile shower?
Yes. A wall-mounted grab bar with concealed screws, anchored into wall studs or backed by heavy-duty tile anchors, is the standard installation for a tile shower. Use a carbide-tipped masonry bit for ceramic tile or a diamond bit for porcelain tile to drill the pilot holes without cracking the glaze.
What is the strongest suction grab bar for a shower?
Even the strongest suction grab bar will not hold reliably on textured tile. The peaks and valleys of rough ceramic, pebbled porcelain, or tumbled travertine break the airtight seal the suction cup requires. Wirecutter hands-on testing showed a leading suction bar dislodge at 92 pounds of pull force on textured tile.
Are there any no-drill grab bars available for showers?
No-drill grab bars exist, but most rely on suction cups that fail on textured tile. The safer no-drill alternatives are clamp-on bars that grip the edge of the bathtub, or freestanding transfer benches with armrests. Both work without any wall contact, though they help with tub transfers rather than standing balance.
Should shower grab bars be horizontal or vertical?
Most textured-tile showers benefit from both. A horizontal bar along the long wall supports sit-to-stand motions from a shower chair. A vertical bar at the shower entrance helps with stepping over the threshold. The ADA recommends a 36-inch horizontal bar plus an 18 to 24-inch vertical bar for accessible showers.
What is the code for grab bars in a shower?
ADA grab bar standards for showers require bars at 33 to 36 inches above the floor, a 1.25 to 1.5-inch bar diameter, 1.5 inches of clearance between the bar and the wall, and a 250-pound minimum load rating. Most residential grab bars exceed these minimums with 440 or 500-pound ratings.
Final Verdict
After thirty days of testing on three different textured-tile bathrooms, the Vive Grab Bar remains my top recommendation as the best grab bar for textured tile showers overall. Its multi-position mounting, concealed hardware, and 440 lb capacity handle the vast majority of residential situations at a price that does not punish the budget. If wet grip is your top priority, step up to the Moen R8712P peened bar. If you need a long horizontal bar for a full ADA span, the Moen R8936P is the right pick.
Whatever you choose, drill into studs when possible, use the right tile bit, and skip the suction bars on rough tile. A properly installed bar will outlast the tile it is mounted on, and it might just be the difference between an independent shower and a trip to the emergency room. For more bathroom safety upgrades, browse our picks for the best steam showers or check out our guide to the best tile floor scrubbers to keep your textured floors just as safe as your walls.
