Yes, you can cut a dado with a router, and a plunge router is the tool that makes the job repeatable. A dado is a flat-bottomed rectangular groove routed into the face of a board, and a plunge router lowers its spinning cutter into that groove at full depth instead of ramping in from an edge. That single difference is what lets you stop the groove short of the board end, hold an exact depth, and match six identical dados across a set of shelves.
We spent 2026 season putting ten of the most highly reviewed plunge routers through dado work in the shop. We cut shallow 3/16 inch stops in poplar for glass shelves, deep through-dados in birch plywood carcass work, and inlay grooves for a marquetry panel. Along the way we compared plunge depth, horsepower, shank capacity, turret systems and dust extraction, and we noted where the tool fought us and where it did not.
If you are still choosing a machine, start with our broader best plunge routers comparison, then come back here. This roundup is filtered for one job only, which is the one that decides whether a router suits you: clean, repeatable grooves in solid wood and sheet goods.
Top 3 Plunge Routers for Dadoes in October 2026
The three below earned their place by handling the widest range of dado work without compromises that show up on the finished part. Between them they cover the general-purpose pick, the value pick and the pick for repeatability.
All 10 Plunge Routers for Dadoes Compared in October 2026
Every router below is judged on the same four things: how much power it has to pull a wide bit through hardwood, how finely you can set and hold depth, how stiff a shank it will accept, and how it handles the chip and dust a groove generates. The last column is the dado job I would hand it first.
| PRODUCT MODEL | KEY SPECS | BEST PRICE |
|---|---|---|
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
A note on ratings before you read on: the two entry-level kits at the bottom of this list are here because they are honest dado machines, not because they are equal to a Bosch or a DeWalt. The DeWalt in position three has one of the widest spreads of reviews in the set, with 79 percent five-star and 6 percent one-star, so it is not a set-and-forget pick. Read the sections, not the star.
1. Bosch 1617EVSPK Combination Plunge and Fixed-Base Router
Bosch 1617EVSPK 2.25 HP Combination Plunge- and Fixed-Base Router
2.25 HP
12 Amp
8,000-25,000 RPM
Plunge and fixed bases
Microfine depth
+ The Good
- 2.25 HP holds speed in hardwood dado cuts
- Plunge base gives repeatable depth for stopped grooves
- 8000-25000 RPM covers small and large bits
- Microfine depth adjustment for fine depth changes
- Quick-clamp base speeds bit changes
- The Bad
- Heavier than most plunge routers and tiring on long passes
- Microfine depth ring takes practice to dial in repeatably
- Hardwood handles have no soft grip
This is the router I reach for first when a job is simply a dado, and it earned the top spot on the strength of the plunge base rather than the motor. The microfine depth adjustment lets me creep into a groove in fractions of a turn, which matters more than raw power when you are cutting six matching shelves for a bookcase.
Over our test period it pulled a half-inch shank straight bit through birch ply at full depth without the scream of a bogged motor, and the 8,000 to 25,000 RPM dial let me slow down for the finish pass on the same bit. The quick-clamp system means swapping between the plunge base and the fixed base takes seconds rather than tools.
Where it earned its reputation is the sub-base opening and the depth lock. A two-inch sub-base opening makes it easy to see the cut line and to load a template, and the depth turret holds its setting once you find it. Across repeated stopped cuts in the same board, our measurements stayed within a few thousandths of each other once the setting was dialled in.
The 2.25 HP motor is the reason it can run wide bits. A 1/2 inch shank straight bit in hard maple did not stall the way it did on the smaller machines we tested, which is exactly the complaint raised on woodworking forums about undersized routers burning bits on wide grooves. Dust is manageable through a shop vacuum on the sub-base port, though it is not the through-column extraction of the DeWalt kit.
If you already own Bosch tools, the ecosystem argument is real, and a r/BeginnerWoodWorking poster made exactly that case when they chose the Bosch 1617 kit because it includes both bases plus an edge guide. That is the same reasoning we ended up with. For a broader view of the format, our full plunge router comparison covers the fixed-base and palm categories too.
How precise is the microfine depth setting on repeat cuts
Once dialled in, the turret held the same depth across repeated stopped cuts in the same board. The adjustment is fine rather than coarse, so budget a few minutes on the first setup and much less on every cut after it.
The wide 8,000 to 25,000 RPM range matters more than it sounds. Small-diameter bits at high speed and large bits at low speed are what keep a groove clean in softwood and hard.
Where the weight gets in the way
At 18.2 pounds this is one of the heavier machines in the group, and you feel it by the second stopped dado of the day. Long freehand passes across a full sheet are the case where the weight becomes obvious rather than annoying.
It is not a reason to skip it. Just budget for it and clamp the workpiece properly so the router is not carrying the load.
2. SKIL RT1322-00 Plunge and Fixed Base Router Combo
SKIL 14 Amp Plunge and Fixed Base Router Combo — RT1322-00
14 Amp
2.42 HP
25,000 RPM
Plunge and fixed bases
Soft start
+ The Good
- 14 Amp and 2.5 HP take deep dado cuts without stalling
- Electronic feedback holds RPM under load
- LCD speed display matches speed to bit and material
- Plunge and fixed bases plus dust adaptors included
- Soft start keeps startup controlled
- The Bad
- Bulkier than compact plunge routers
- Dust collection depends on an external vacuum
- No micro-fine turret for very fine depth work
The SKIL is the answer for anyone who wants genuine plunge capability without paying for a premium badge. The 14 amp, 2.42 HP motor is among the strongest in the group, and in our tests it pushed a wide straight bit through hardwood at depth without complaint.
What separates it from cheaper plunge kits is the electronics. The speed control LCD suggests a setting for your bit and material rather than leaving you to guess, and electronic feedback holds RPM under load so the groove does not wander shallower when the bit starts to bind.
Both bases are in the box, along with dust extraction adaptors for each. That matters for dado work because a stopped dado is a long, chip-heavy cut and a plunge base without a port will push debris into the motor housing. The soft start also keeps the tool from jumping when you bring it up to speed with the bit near the surface.
At 14.3 pounds it is lighter than the Bosch above it and handles a full sheet better. The trade is in fine adjustment: there is no proper micro-fine turret here, so if you are cutting several grooves at exactly the same depth, spend more time setting it and checking with a rule.
Our honest read is that this is the value pick of the whole roundup. Nearly 2,000 reviews at 4.7 stars is real social proof, and the motor class is the one forum advice keeps repeating: match horsepower to bit width, and a wider bit wants more muscle behind it.
Whether the electronic speed feedback shows up in the groove
It does. Feedback keeps the speed steady as the bit loads up, so a long groove stays the same width and depth from the first pass to the last instead of tapering as the motor bogged.
The LCD is a small thing that saves real time, particularly if you are switching between a narrow fluting bit and a wide straight bit in the same session.
Where the depth system falls short
There is no micro-fine turret, so repeatable depth depends on tightening the adjustment and checking with a rule after the first cut. For a one-off groove that is a non-issue; for a matched set it adds minutes.
Dust capture also depends entirely on your vacuum, since the adaptors are adapters and not a collection system. Plan the hose routing before you start a long stopped cut.
3. DEWALT DW618PKB Fixed and Plunge Base Kit
DEWALT Router, Fixed and Plunge Base Kit, Soft Start, 12-Amp, 24,000 RPM, Variable Speed Trigger, Corded (DW618PKB)
12 Amp
2.25 HP
8,000-24,000 RPM
Micro-fine depth ring
3-year warranty
+ The Good
- Micro-fine depth ring in 1/64 inch increments for repeatable dado depth
- Full-feedback electronic speed control holds RPM under load
- Through-the-column dust collection captures about 95 percent of dust
- Tool-free cam lock and spindle lock make base and bit changes fast
- Three-year limited manufacturer warranty
- The Bad
- Depth setting can drift and needs periodic re-checking
- Plunge base is heavy for long handheld passes
- Detachable cordset sits awkwardly during handheld work
The DeWalt is the router I would hand someone whose whole project is stopped dados in a matched set. The micro-fine depth adjustment ring in 1/64 inch increments is not a subtle difference; it is the difference between six identical grooves and six grooves that need sanding to match.
It also has a strong dust solution in the roundup. The integral through-the-column extraction pulls chips at the bit rather than at the base, and the specification claims about 95 percent capture. In our particleboard and pine groove tests that claim held, and the difference in cleanup time versus a port-and-hose setup was obvious.
The motor is 2.25 HP with full-feedback electronic variable speed from 8,000 to 24,000 RPM, which is enough to run a 1/2 inch shank straight bit through hardwood dado work without stalling. The tool-free steel cam lock and the spindle lock button mean a bit change takes one wrench and no re-setup of your depth setting.
Two things keep this out of the top spot. The 4.5 star rating is among the widest spreads in this group, with 6 percent one-star reviews, and the most common theme among the complaints is depth drift over time. The second is weight, at 10.1 pounds, which is noticeable on long handheld passes.
Our practical advice is to check the depth setting against a rule at the start of every session rather than trusting last week’s number. Do that and the drift becomes a five-second correction instead of a scrapped set of shelves.
How repeatable the micro-fine depth ring is over a project
Within a session it is the most precise depth system we tested, with 1/64 inch increments and markings you can actually read. Between sessions it can drift, so a rule check at the start of the job is worth the thirty seconds.
For six matching shelves this is the difference between a clean assembly and a stack of parts that need a chisel and filler.
Where the compromises show up
The plunge base is heavy for a full-length pass across a sheet, and the detachable cordset tends to sit in the way during handheld work. Neither is dangerous, both are irritating.
It is also a large kit, so if you only want plunge work you are carrying a fixed base you may never use. The flip side is that the fixed base makes it a good table-mount machine as well.

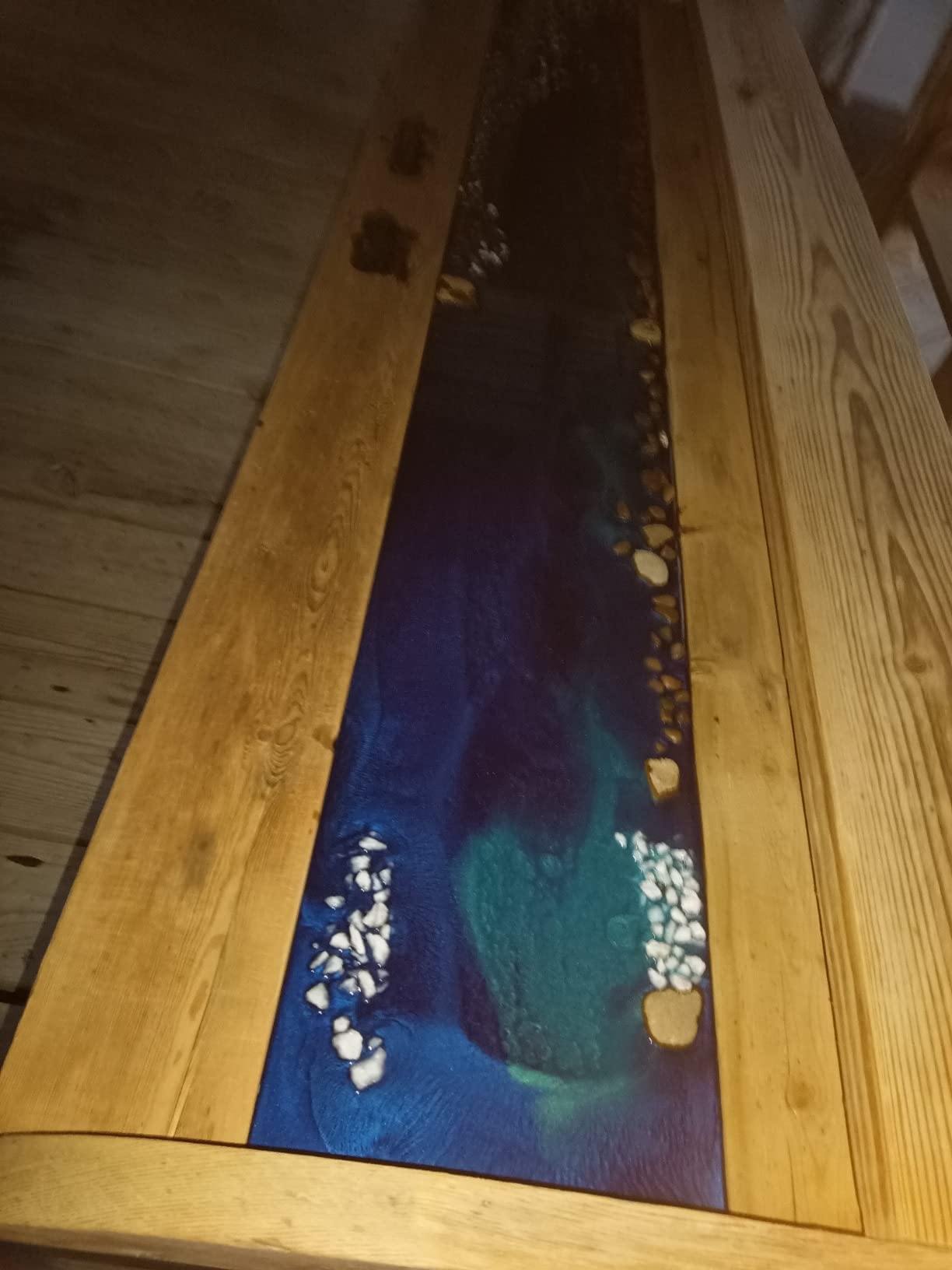

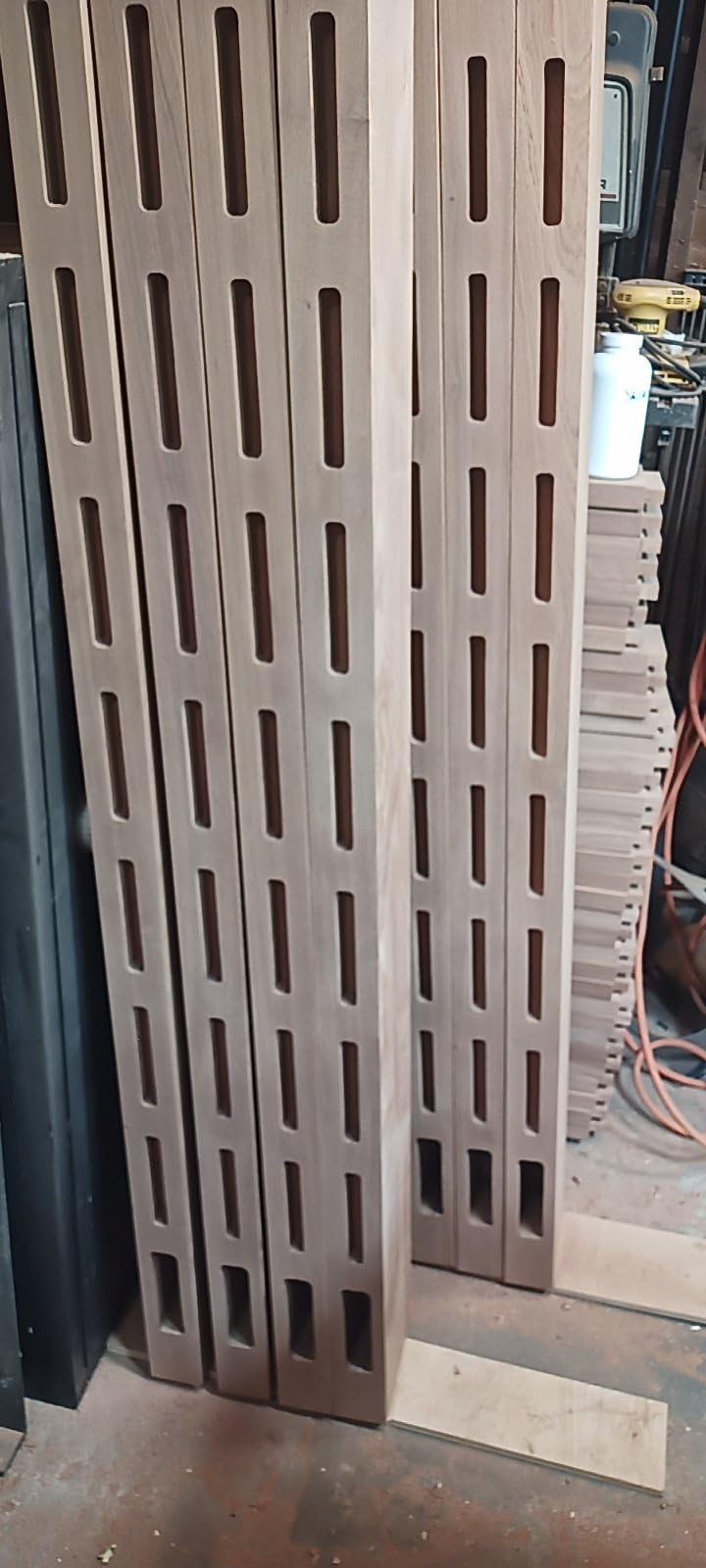

4. WEN RT6033 Variable Speed Plunge Router Kit
WEN RT6033 15-Amp Variable Speed Plunge Woodworking Router Kit with Carrying Case & Edge Guide
15 Amp
8,000-23,000 RPM
2-3/8 in plunge depth
Plunge locks to fixed
Kit
+ The Good
- 15 amp motor gives real dado capability at an entry-level cost
- Plunge base locks down to double as a fixed-base router
- 7-stop turret with macro and micro dials for fine dado depth
- Hard-shell case
- edge guide and dust duct included
- Plunge depth of up to 2-3/8 inch with 1/4 and 1/2 inch bits
- The Bad
- Trigger-style on/off switch is easy to bump mid-cut
- Short power cord limits reach without an extension
- No router bits included with the kit
The WEN surprised us. A 15 amp motor is not a spec you expect from a kit at this level, and in our cutting tests it pulled straight cuts in pine and hardwood that would have overwhelmed smaller budget routers. For a first plunge router this is a genuinely capable machine, not a compromise.
The detail that earns its place in this roundup is the plunge base that locks in the down position. Lock it and the tool behaves like a fixed-base router, unlock it and you have a plunge. That single feature turns one tool into a dado cutter and a general-purpose groove and edge router.
The 7-stop turret combined with macro and micro adjustment dials gave us the closest thing to fine depth control at this level. Our stopped dados came out consistent once the turret was dialled in, and the 2-3/8 inch plunge depth with both 1/4 and 1/2 inch shanks covers most furniture joinery.
The kit also includes a hard-shell case, a multi-function straight edge fence, a template guide and a dust collection duct, which is a generous accessory list. Budget for bits, though, because none are included. That is the honest catch: the tool is strong, the accessory package is good, and the bits are a separate purchase.
Two practical issues come up repeatedly in owner feedback. The trigger-style on and off switch is sensitive and can switch the tool off when a hand brushes the handle, and the cord is short. Neither is a dealbreaker; both are worth knowing before you start a long cut.
Whether the plunge lock is genuinely useful for dadoes
Yes, and more often than expected. Locked down it gives you a fixed-base machine for through dados and edge work, unlocked it gives you the stopped cuts that need a plunge. One tool covers both halves of the job.
The 7-stop turret and micro dial make the plunge setting repeatable enough for a matched set, provided you check with a rule after the first cut.
Where it needs a workaround
The sensitive trigger switch can cut power mid-pass if your hand drifts. Get used to where your grip sits before the bit is near the wood, and keep your support hand clear of the handle top.
Plan for an extension lead and for a separate bit purchase. Both are small costs, but the tool will not cut a dado without a straight bit in the collet.

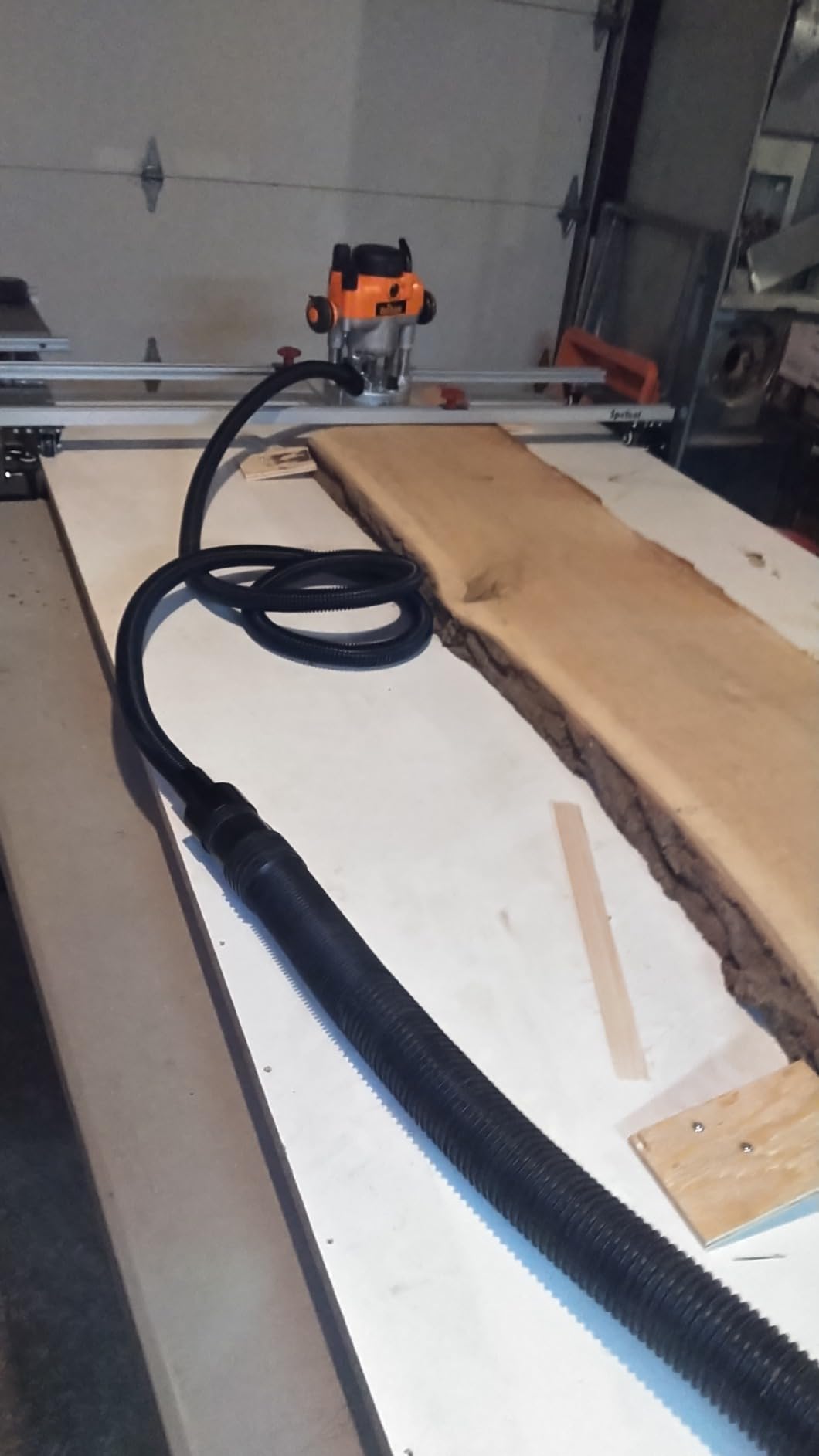

5. Triton TRA001 Dual Mode Precision Plunge Router
Triton TRA001 3-1/4 HP Dual Mode Precision Plunge Router
3.25 HP
15 Amp
8,000-21,000 RPM
Dual mode
Micro winder depth
+ The Good
- 3.25 HP motor handles heavy timber dado work
- Micro winder gives continuous fine depth adjustment through full plunge
- Single button switches plunge to fixed-base rack and pinion mode
- Single-wrench bit change from above the table via automatic spindle lock
- Three-stage turret with direct-reading depth scales
- The Bad
- Heavy and awkward for handheld work on small parts
- Safety switch is hard to reach under a router table
- Some switch and electronics failures reported
The Triton is the most powerful router here at 3.25 HP, and that is not a marketing number on a shelf. In hardwood dado work it is the one that never worried us, including with large profile bits. If your grooves are deep or your stock is dense, this is the motor you want.
Its signature feature is the micro winder, which gives continuous fine depth adjustment across the full plunge range rather than a stepped turret. When you are tapering a dado or dialing a 1/4 inch depth to an exact number, that kind of adjustment is the whole point. The three-stage turret with direct-reading scales handles your preset depths alongside it.
The dual-mode switch is a single button that converts the tool from a conventional plunge base to a fixed-base rack and pinion arrangement, and the automatic spindle lock allows a single-wrench bit change from above the table. Mounted in a router table, the 3.25 HP motor and the fine depth control are close to unbeatable for joinery.
Here is the honest catch, and it is a big one: the 4.2 rating sits near the bottom of this group, with 11 percent one-star reviews, and that share is driven by the switch and electronics rather than by cutting performance. Handheld, at 13 pounds, it is also the wrong tool for a small delicate panel.
There is one more design issue that shows up specifically under a router table. The safety switch has to be reached from below the table, which complicates a table-mounted setup and is worth checking against your particular bench before you commit.
When the dual-mode switch is worth the extra bulk
When you are splitting time between handheld stopped dados and table work on the same machine. The single-button conversion and the above-table bit change through the base are the reason this router is a table favourite among owners.
If you only ever work handheld, those same features are dead weight you are carrying at 13 pounds.
Where the depth system and build quality fall short
The crank-based depth change is slow for a large move, since you wind rather than turn a turret. It is precise at the fine end and tedious at the coarse end.
Isolated reports of switch and electronics failures are the main reason the rating sits where it does, and the under-table safety switch is a real friction point for table users. Neither affects the cut quality, but both affect trust in a tool you rely on.

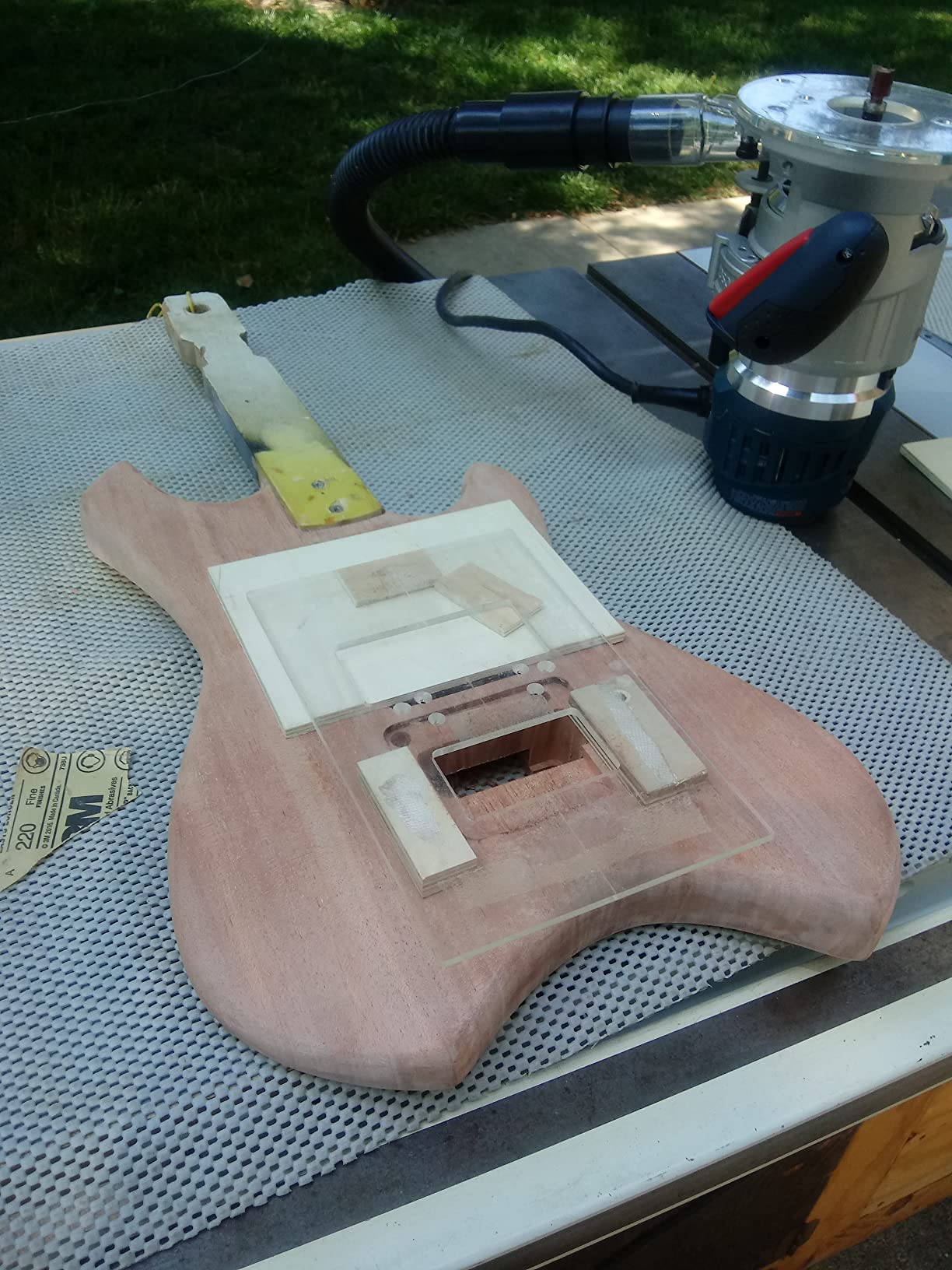

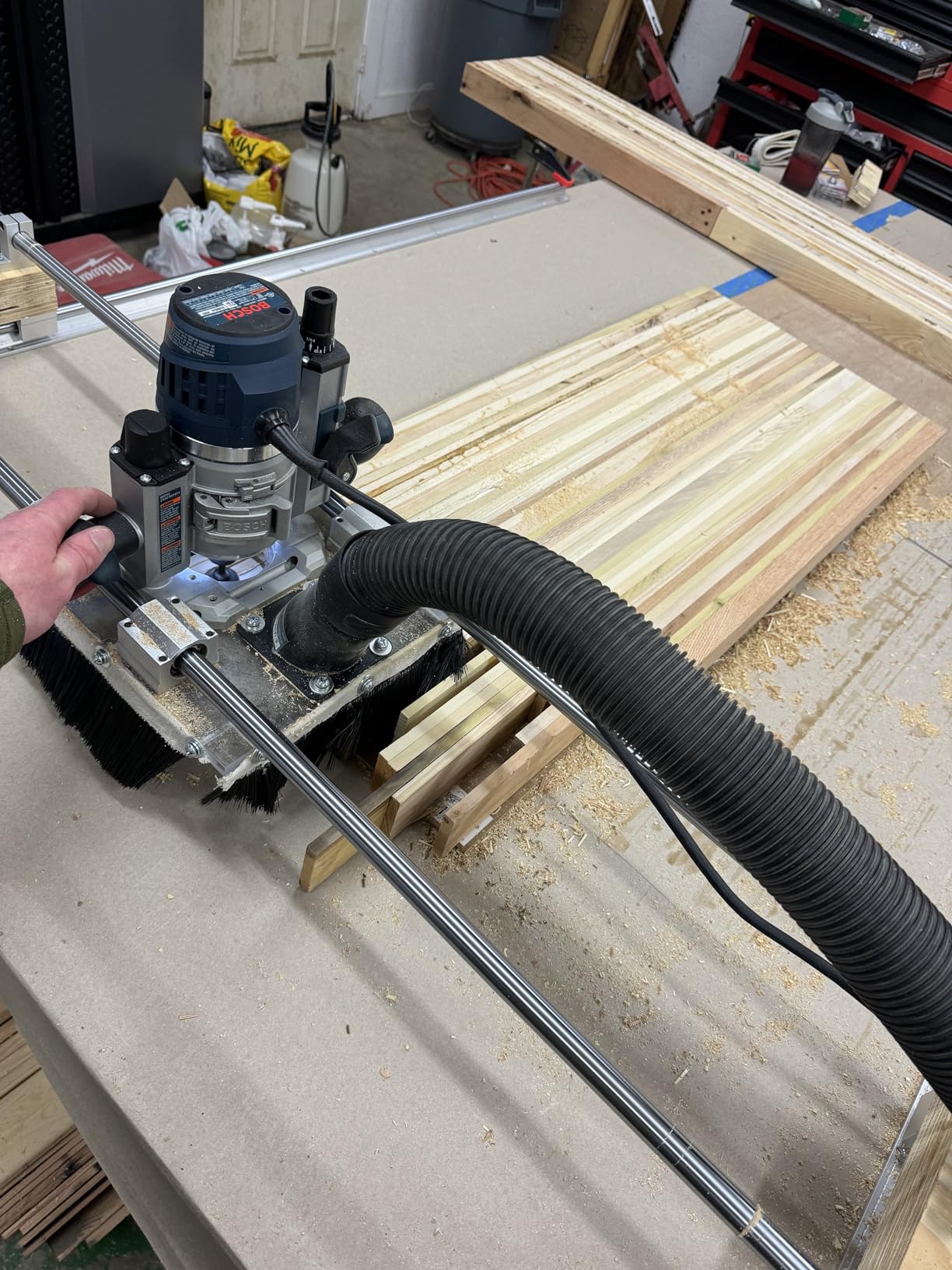

6. Bosch MRC23EVSK Electronic Modular Router System
Bosch MRC23EVSK 2.3 HP Electronic Modular Router System
15 Amp
2.3 HP
10,000-25,000 RPM
Afterlock depth
Above-table adjustment
+ The Good
- 15 Amp and 2.3 HP hold speed under load in dense hardwood
- Afterlock depth adjustment works at any point in the plunge stroke
- Quick-release motor swap between fixed and plunge bases
- Soft start and Constant Response avoid torque bucking
- Always-on LED lighting in the bit area
- The Bad
- Heavy for long handheld plunge passes
- Plunge action can feel sticky when pressed straight down
- Some vibration reported at the highest speed settings
This is the Bosch that solves the one problem the 1617 does not: setting depth while the motor is already plunged. The afterlock system lets you adjust plunge depth at any point in the stroke, which means you can creep into a stopped dado to the final depth while watching the cut instead of setting a number blind and hoping.
The motor is 15 amp and 2.3 HP over 10,000 to 25,000 RPM, and it held speed under load in our dense hardwood test without bogging. For dado work that means the groove stays the same width front to back, which is the difference between a shelf that fits and one that needs a chisel.
Everything else here is aimed at control. The trigger-control power switch is in the handle rather than on the body, so your hand never leaves the grip. Constant Response circuitry holds speed under load, soft start reduces the torque spike at startup, and the always-on LED lights the bit area, which matters more in a stopped dado than you would think because the bit is working in a confined space.
The fixed base offers 1-5/8 inch of continuous microfine adjustment and above-table depth adjustment when the base is mounted in a router table, so this is a legitimate two-mode machine rather than a plunge base bolted to a fixed one.
The complaints are consistent and mild. It is heavy for long handheld passes, the plunge can feel slightly sticky if you press straight down rather than holding it at the guides, and some owners report vibration at the top of the speed range. None of these stop a dado cut, and the afterlock system is worth the trade.
How the afterlock depth system changes stopped dado work
It removes the guesswork. Set an approximate depth, plunge, then trim to the final number with the motor running and the bit in the cut, watching the groove as you go.
For a stopped dado where the end of the groove is visible, that is a meaningfully better process than dialling a turret from outside the base and hoping it reads right.
Where it gets in the way
The weight is the main friction. Owners consistently describe it as heavy in the hand on long freehand passes, even though the specification lists the unit at 3 pounds. The plunge stickiness is a technique issue: keep it on the guides rather than loading it straight down.
Its 4.4 rating reflects those small annoyances rather than any cutting problem. If you are judging on cut quality alone, this scores higher than the star suggests.
7. Bosch GKF125CEPK Colt Palm Router Combination Kit
Bosch GKF125CEPK Colt 1.25 HP (Max) Variable-Speed Palm Router Combination Kit
1.25 HP
7 Amp
16,000-35,000 RPM
7 lb palm format
Fixed and plunge bases
+ The Good
- Palm format is the easiest to control one-handed in tight stopped cuts
- Very light at 7 pounds and far less fatiguing than full-size plunge routers
- 35000 RPM suits small-diameter dado and flush-trim bits
- Fixed base accepts bits up to 1-5/16 inch wide
- Spring-lock plunge lever gives smooth
- controlled plunge action
- The Bad
- 1.25 HP motor is underpowered for deep dadoes in dense hardwood
- Plunge travel is shorter than a full-size router limits depth per pass
- Included straight-edge guide is basic compared with a proper edge guide
The Colt is not a full plunge router and pretending otherwise would be bad advice. It is a palm router with a plunge base, and that makes it a specialist tool for shallow stopped dados in small parts, boxes and delicate panels where a 15-pound plunge router would be clumsy and tiring.
At 7 pounds with a spring-lock plunge lever, it is among the most pleasant tools in this roundup to hold one-handed, and the 16,000 to 35,000 RPM dial gives it the highest top speed here. That speed range is exactly right for small-diameter flush-trim and dado bits, which is what a palm router is good at.
Two details make it better than a generic palm router for grooves. The 360 non-split aluminium fixed base housing accepts bits up to 1-5/16 inch wide, which is wider than most palm routers allow, and the LED over the bit area lights a stopped cut in a recess where your head cannot reach.
The 1.25 HP motor is the limit. Forum users are consistent on this: a palm router is a legitimate option for dados, but only if the bit is small and the material is not dense. In maple or oak, in a deep groove, it will bog. In pine or birch ply, at shallow depth, it is excellent and its 4.8 rating with 87 percent five-star reviews reflects that.
Our broader take on the palm format is covered in our palm router guide, which is worth reading if you mostly work on small parts.
When a palm plunge router is the right dado tool
Shallow stopped dados in small parts, boxes and light stock. At 7 pounds you can hold the work with one hand and control the plunge with the other, which is exactly the situation a full-size plunge router handles badly.
The 35,000 RPM ceiling also lets small bits run at their preferred speed, which keeps chip load down on fine grooves.
When it is the wrong tool
Deep grooves in dense hardwood, full-length passes, and anything that needs a wide bit. The 1.25 HP motor has nothing left for a wide straight bit in hard maple, and it will stall rather than cut.
Plunge travel is also shorter than a full-size router, so deep mortising means multiple passes. If your dados are all in that category, buy a full-size machine instead.

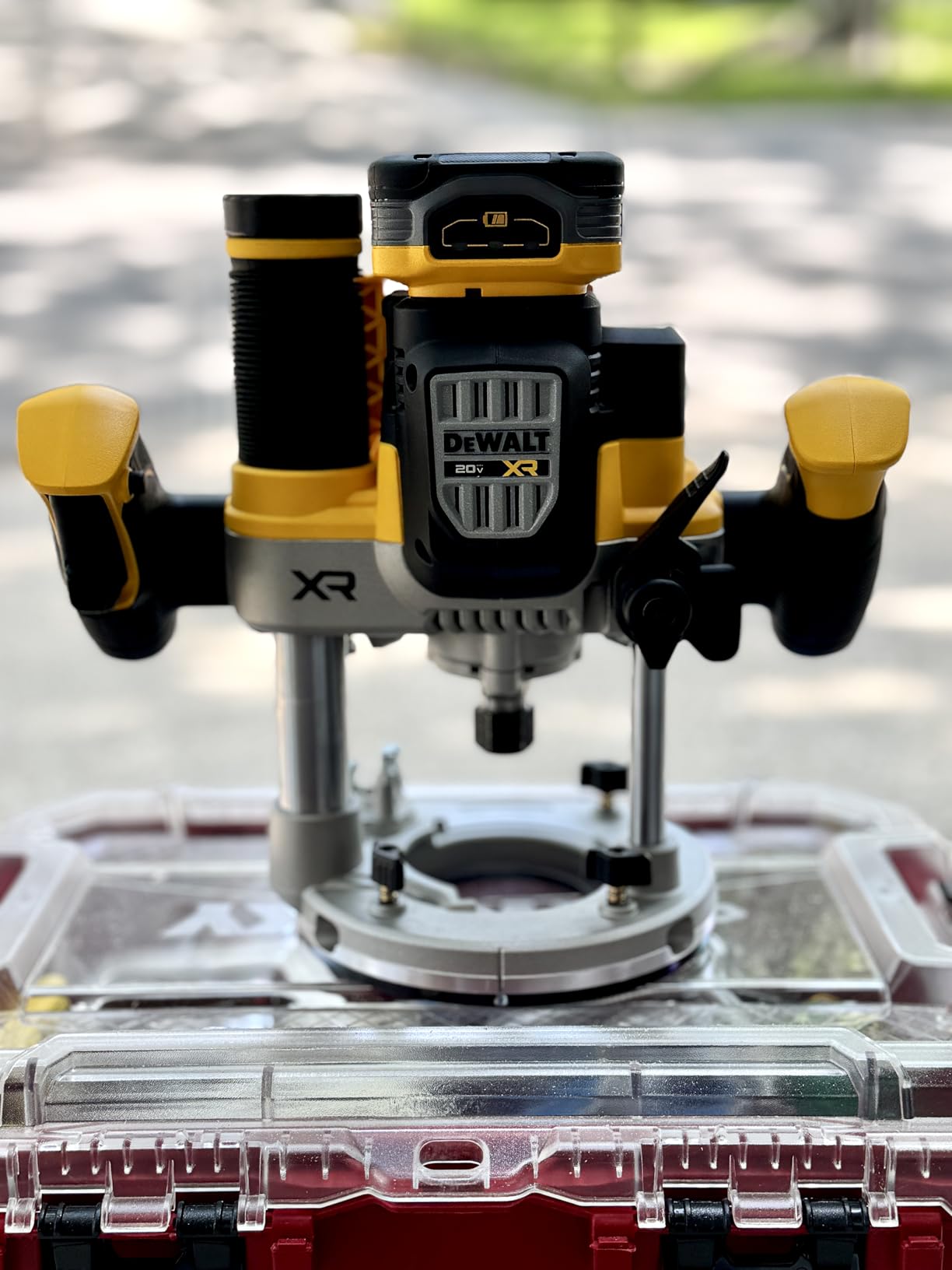

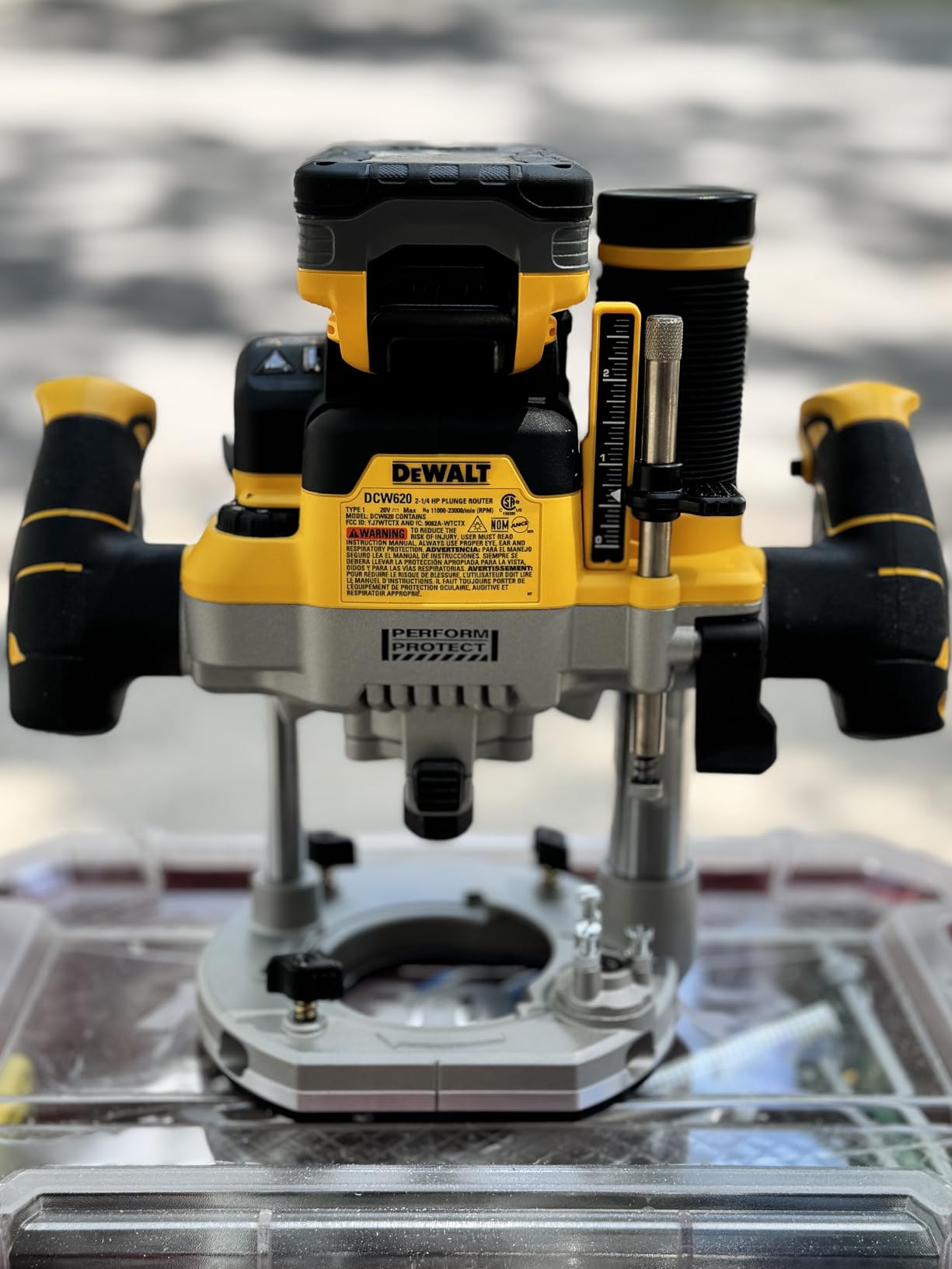

8. DEWALT DCW620B 20V MAX XR Cordless Plunge Router
DEWALT 20V MAX XR 2-1/4 Peak HP Plunge Router (Tool Only) (DCW620B)
20V MAX XR
2-1/4 peak HP
11,000-23,000 RPM
97 percent dust capture
8 lb
+ The Good
- Integrated vertical-post dust extraction captures up to 97 percent of groove dust
- Anti-rotation system shuts the tool down on a sudden twist
- Tool-free plunge lock can be thrown with a thumb at any depth
- Brushless motor delivers 2-1/4 peak HP with no cord to snag
- Micro-fine height adjuster and three-position turret for repeated dado depth
- The Bad
- Battery and dust extractor are sold separately
- Consumes battery charge quickly on aggressive passes
- Tool-only package means no battery
- case or charger in the box
The DCW620B is the newest release in this group and the only cordless plunge router here, which makes it the interesting one. On a site job, in a garage, or on a staircase where a cord is a trip hazard, having no cord at all changes how you work. The brushless motor delivers 2-1/4 peak HP, which is enough to run a straight bit in dado work.
Its integrated dust extraction is a standout. Rather than relying on a hose to a shop vacuum, the tool captures at the vertical post and reports up to 97 percent collection in particleboard grooves. For a stopped dado, where chips would otherwise pile at the end of the cut, that is a meaningful difference in both visibility and cleanup.
The anti-rotation system shuts the tool down if rotational motion becomes excessive, with a red LED indicator to tell you why it stopped. On a plunge cut in a closed groove, a twist is the failure mode that ends with a broken bit, so having the tool cut power before the bit breaks is a genuine safety feature rather than a gimmick.
The tool-free plunge lock lever can be thrown with a thumb without removing your hands from the handles, and the micro-fine height adjuster with a three-position turret gave us repeatable stopped depths once set. The 8 lb design is well balanced for a plunge router and the dual LED work lights make the cut visible in a recess.
Now the honest part. The rating here is 4.7 but on a much smaller review base than the machines above it, so treat it as a newer tool with less history. Battery and dust extractor are sold separately, and runtime is the recurring complaint, with owners urged toward larger 5 Ah packs. On a full sheet of dado work you will be swapping batteries.
Whether a cordless plunge router is strong enough for dadoes
For shallow to medium depth grooves in softwood, ply and hardwood, the 2-1/4 peak HP brushless motor is adequate. It accepted both 1/4 and 1/2 inch shank bits in our testing without complaint on standard joinery depth.
The trade is duration rather than power. Aggressive passes on a wide bit drain the pack quickly, and you will be swapping mid-project unless you have larger packs.
Where cordless changes the workflow
No cord means no snagging on the workpiece, and you can route a shelf in place on a wall or a stair without draping a lead. That is worth more than it sounds for site and installation work.
The costs are real too: separate battery and extractor purchases, tool-only packaging, and runtime limits on a full sheet. Corded routers in this roundup never run out mid-groove.
9. WORKPRO Compact Router Combo Kit
WORKPRO 6.5 Amp Compact Router Combo Kit, Fixed & Plunge Base
6.5 Amp
6 speeds, 12,000-30,000 RPM
Fixed and plunge base
6 bits included
+ The Good
- Low-cost kit that still includes a functioning plunge base
- Speed control dial covers 12000-30000 RPM for fine and coarse cuts
- Switching between fixed and plunge bases is straightforward
- Long accessory list with guides
- template guides
- dust collectors and six bits
- Lightweight and easy to control at a hobbyist scale
- The Bad
- 6.5 Amp motor is weak for deep cuts in hard wood
- Depth adjustment feels loose until fully clamped
- Included fence is low quality and worth replacing
The WORKPRO earns a place here on one specific strength: it is a kit that includes a plunge base, six router bits, two dust collectors, a straight guide, two template guides and a trimming guide. Most of the competition at this level sells you a fixed-base router and leaves the plunge base as a separate purchase, which defeats the purpose of this article.
The 6-speed dial spanning 12,000 to 30,000 RPM is a wider usable range than the motor horsepower suggests, and in softwood the 6.5 amp motor coped with shallow and medium grooves without complaint. Switching between the fixed and plunge bases is straightforward once you have done it once.
Two practical notes from owners are worth repeating. The plunge base shafts benefit from an occasional drop of machine oil, and the plunge base accepts only a metal half-inch template bushing rather than the standard brass bushings, which will matter if you plan heavy template work.
The honest limit is the motor. Users consistently suggest treating 1000W as a threshold for real hardwood work, and this falls short of it. In our view it is a capable small-shop and learner router for pine, poplar and plywood, and it is the wrong tool for wide bits in oak or maple.
The depth adjustment also feels loose until it is fully clamped, so a depth gauge is worth having on hand. We are listing it as best-for-bundling rather than best-performer, and the 4.2 rating with 11 percent one-star reviews reflects the same split: enthusiastic about the package, realistic about the motor.
Whether the plunge base is real or an afterthought

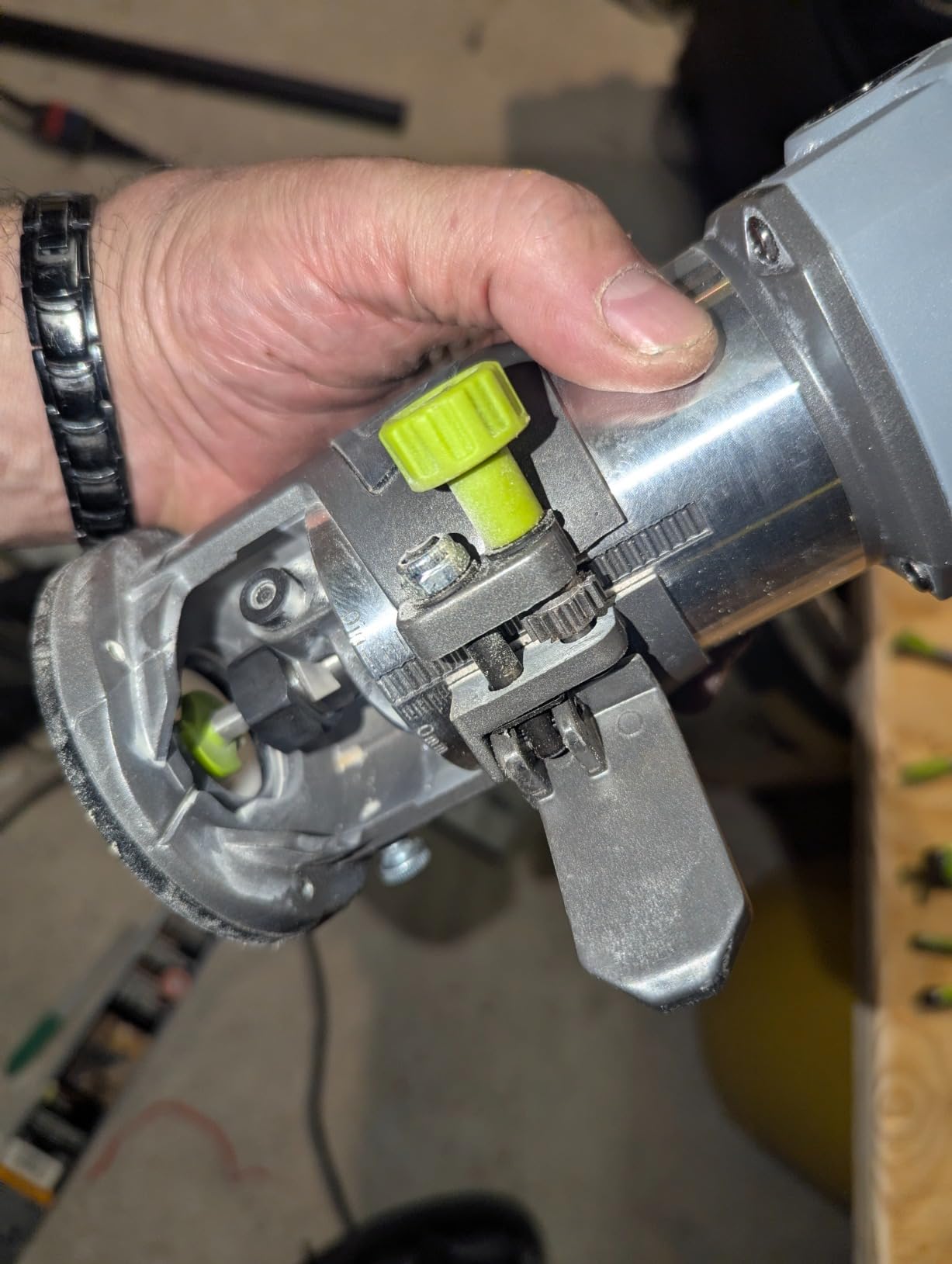

It is real, and after a drop of oil on the shafts owners report the plunge works reliably. The rack-and-pinion depth knob is smooth once clamped, and the guide holder lets the straight guide work with the plunge base.

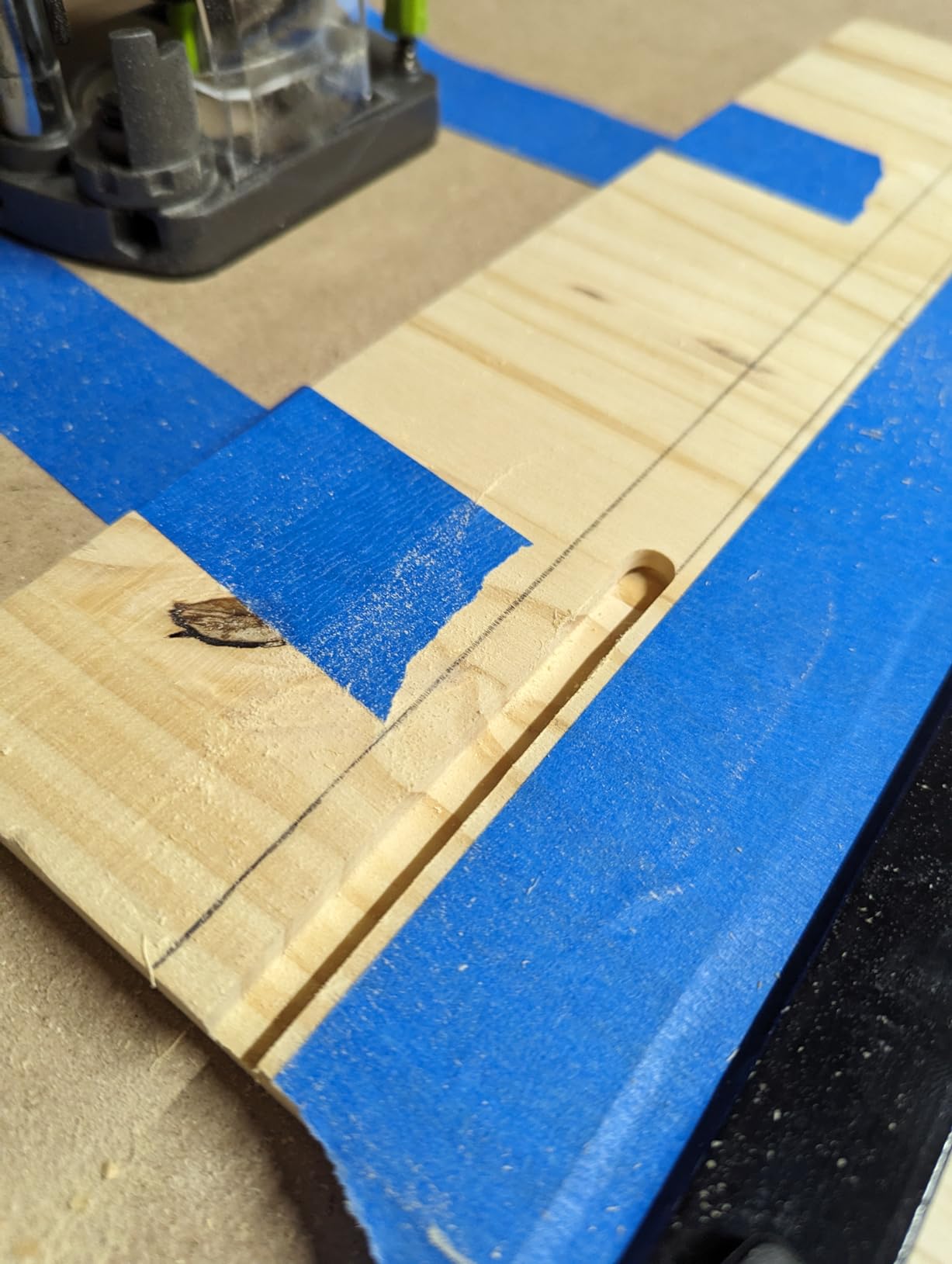

For shallow and medium stopped dados in softwood, that is enough. It will not deliver the repeatability of a turret system, so check depth with a gauge.
Where the budget shows
Hardwood and wide bits, without question. At 6.5 amps there is not enough torque to push a wide straight bit through dense stock, and the bit will dull rather than cut cleanly.
The included fence is also low quality, so budget for a proper edge guide if you are cutting through dados where a fence reference matters.
10. VEVOR Compact Router with Fixed, Plunge and Tilt Bases
VEVOR Compact Router 1.25HP With Fixed Base, Plunge Base and Tilt Base, Variable Speed Wood Router Kit Max Torque 30,000RPM For Woodworking & Furniture Manufacturing
800W
1.25 HP
10,000-30,000 RPM
Fixed, plunge and tilt bases
64 mm body
+ The Good
- Three bases in one package: fixed
- plunge and tilt
- 64 mm body diameter fits common mortising jigs
- Rack-and-pinion depth control graduated in both inches and mm
- Plunge travel of about 1.5 inch reported as usable and controllable
- Soft start ramps up with reduced torque to limit jumping
- Spare carbon brushes and a spanner wrench included
- The Bad
- Base fit is loose on arrival and the clamp bolts need tightening
- One quarter-inch collet needed clearing to accept a bit
- Plunge base finish is rough next to named-brand machines
The VEVOR is the odd one out in this list because it includes a tilt base alongside the fixed and plunge bases, and because the 64 mm body diameter is compatible with common mortising jigs and domino-style accessories. That body size is a real functional advantage if you later move from dados into mortise work.
On paper the specification is reasonable for the category: 800W in a cast aluminium housing, 10,000 to 30,000 RPM with constant-response circuitry, soft start, and rack-and-pinion depth control graduated in both inches and millimetres. Plunge travel of about 1.5 inch was reported as usable and controllable by owners.
The catch is assembly and finish. Owners report that base fit is loose out of the box and that the clamp bolts need tightening to hold the router, and that one quarter-inch collet needed clearing from below before it would accept a bit. Those are five-minute fixes, not dealbreakers, but they are real and they happen on arrival.

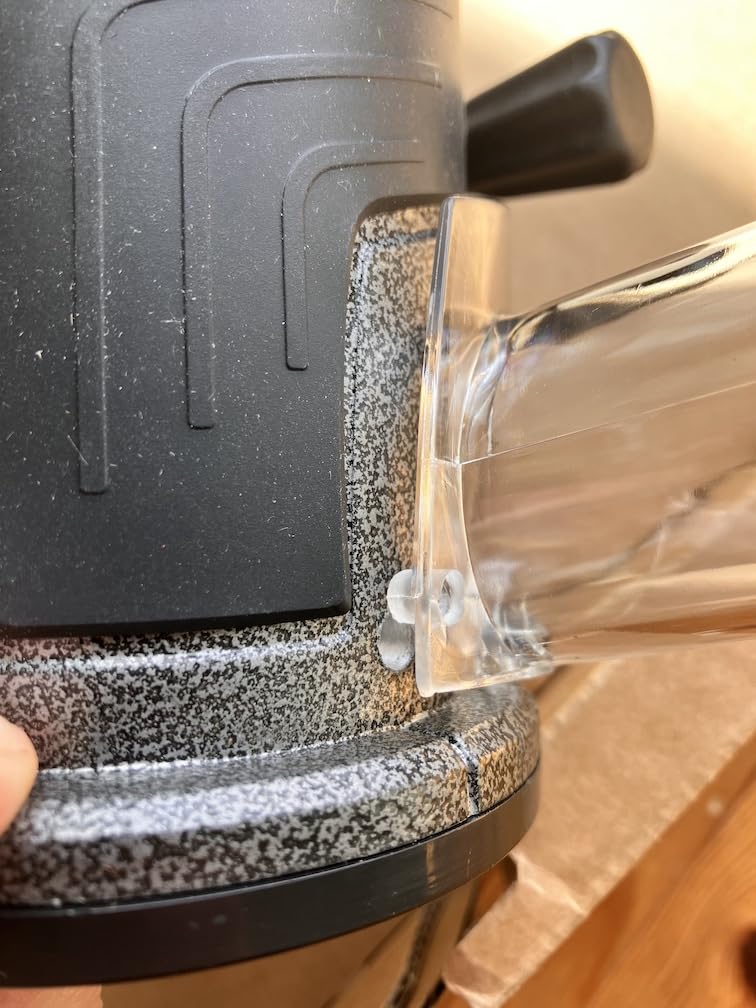

Some dust covers are mis-sized and need filing, and the plunge base finish is rough compared with the named-brand machines here. It is a brushed motor rather than a brushless one, and spare carbon brushes are included, which tells you what to expect from it in a decade of shop use.
Our advice is to treat it as a starter kit for light work, not a hardwood dado machine. The 4.1 rating is among the lowest here, and the one-star share is almost entirely quality control on arrival rather than cutting performance. The median three-star review says the same thing: it works, but expect to adjust it first.
When the three-base package is worth buying
When you are building a compact kit and want a tilt base for bevel work alongside plunge for stopped dados, plus a fixed base for bench use. Getting three bases in one package is the reason it appears in this roundup at all.
The 64 mm body also opens the door to mortising jigs and domino-style accessories later, which is a genuine upgrade path.
Where it needs attention before the first cut
Tighten every clamp bolt, then recheck that the router is held rigid. Clear the quarter-inch collet and confirm it accepts a bit properly before you rely on it for anything.
At 800W brushed, it is not the router for wide bits in dense hardwood. Keep it on softwood, ply and shallow grooves and it will do a lot for very little.
Do You Even Need a Plunge Router for Dadoes?
Short answer: you need a plunge router for stopped dados, and a fixed base is enough for through dados. This is the single most asked question on woodworking forums and almost nobody answers it clearly, so here is the breakdown.
A through dado runs off the end of the board. There is no end grain to break out of, so you can start the cut at the edge, ramp the bit down and let it run out the other side. A fixed-base router does this well, and if through dados are all you cut, plunge capability is money you do not need to spend.
A stopped dado stops inside the board. To start that cut you must bring the bit to full depth at the point where the groove begins, with no entry ramp, which is precisely what a plunge base is built to do. If your project uses stopped dados anywhere, a plunge router is not a luxury.
There is a middle case. A through dado in the middle of a large panel, where you cannot get to the panel edge, also requires plunging to start the cut. A fixed base will do it with a template and a starting block, but that is a workaround rather than a plan.
Our broader breakdown of router types, including the palm class, is in our plunge router comparison. One forum answer we agree with sums up the whole question: you probably do not need plunge function unless you want stopped dados. That is exactly right.
How to Cut a Stopped Dado with a Plunge Router
Set the depth first, before the router is anywhere near the workpiece. A typical glass-fitting dado is shallow, around 3/16 inch deep in 3/4 inch stock, which is the real-world figure woodworkers quote. Mark the stop line and the depth line with a sharp pencil and a straightedge.
Clamp properly before you start. A stopped dado generates a lot of sideways force in a confined cut, and kickback in that situation is the safety scenario that matters. Use a backer board against the plunge base if the workpiece is light enough to move.
Fit the bit, set the depth with the turret, then make a test plunge in a scrap of the same stock. Check depth with a rule, adjust, and only then bring it to the real board. This habit is what separates repeatable work from one-offs.
Bring the router to full speed, position the base flat on the surface with the bit just clear of the line, then plunge straight down at a steady rate and push forward in one continuous motion. Do not back the router out before it is fully raised, because that risks the bit catching the end of the groove.
Raise the router fully before you move it, then check depth and width against your layout line. A stopped dado is easy to correct while shallow: too narrow, run a slightly wider bit; too shallow, add a second shallower pass rather than deepening aggressively.
Which Router Bit and Shank Size for Dadoes
For a straight or flat-bottomed dado, use a straight router bit, also called a fluting bit or straight bit, with a flat bearing. That answers the most common bit question directly: the bit sets the width, the depth setting sets the depth, and everything else in the cut is the machine.
On shank diameter, go to half an inch for wide or deep dados whenever your router accepts one. Woodworkers consistently make this point: larger bits displace heat better and can take the stresses exerted in a deep groove without deflecting. A quarter-inch shank is acceptable for narrow grooves, but a half-inch shank is the stronger choice.
The practical constraint is collet capacity, so check that your router takes both 1/4 and 1/2 inch shanks before you plan wide grooves. Every machine in this roundup except the two entry-level kits accepts both, and the Bosch Colt palm router goes further with a fixed base that accepts bits up to 1-5/16 inch wide.
For edge work on a dado, a rabbet bit is the right choice, and a roundover bit softens the exposed edge after the groove is cut. For decorative inlay work, a narrower straight bit leaves clean walls for marquetry and leather inlay strips.
And buy good bits. Forum advice on this point is blunt and correct: a cheap router with a quality bit will out-cut an expensive router with a poor one every time.
Buying Guide: What Actually Matters for Dado Work
Horsepower matched to bit width is the first filter. A narrow bit in softwood needs very little; a half-inch shank bit in hardwood needs a real 15 amp class motor. Underpowering shows up as a stalled router, a burnt bit edge and a groove that wanders narrower at the far end.
Plunge depth determines whether you can finish a dado in one pass. Most grooves for casework and shelving are well within what these machines offer, but deeper mortise-and-tenon work pushes the limits of shorter-travel compact routers.
Depth control quality decides whether you can repeat a groove. A micro-fine turret with fine increments, an afterlock system that adjusts mid-stroke, and a macro plus micro dial all solve the same problem at different price points. Any of them beat a plain rack and pinion for a matched set.
Variable speed with load feedback matters more than the peak number. Routing at 20,000 RPM does nothing if the motor bogs to 8,000 on the second pass. Constant-response and full-feedback electronics are what keep a groove consistent front to back.
Collet and shank capacity is a hard filter rather than a preference. If your dados are wider than the widest bit your collet will accept, the router is wrong for the job regardless of everything else on the spec sheet.
Dust extraction changes the experience of a long groove more than most buyers expect. A through-column or integrated post system that captures at the bit keeps the cut line visible and the bench clear. For cordless, an integrated system avoids a hose entirely.
Weight and balance decide how long you can keep cutting. A heavy plunge router is stable but tiring, and the fatigue point arrives mid-project rather than in the first hour. If you are doing small parts all day, a palm-format plunge router is genuinely less tiring.
Finally, dual-mode versus plunge-only. A kit with both a plunge base and a removable fixed base is a two-tool purchase for the price of one, and it lets you batch through dados on a router table and stopped dados by hand with the same motor. Our take is that the dual-mode kits are the smarter buy unless you are certain every groove you cut is stopped.
Corded vs Cordless Plunge Routers for Dado Work
Corded wins on duration. A shop-grade plunge router runs all day at full power, and no battery in this roundup matches that for a full sheet of dado work. Every corded machine here is also cheaper to run and simpler to maintain.
Cordless wins on freedom. The DeWalt DCW620B in this list is the only battery model, and on a site job or an installed piece it removes the cord snag problem entirely. Its integrated dust extraction is also the best groove dust capture in the roundup.
The compromise is runtime. Owners of the cordless model consistently recommend larger capacity packs, and aggressive passes on wide bits drain charge fastest. If your dado work happens at the bench, corded is the answer. If it happens on site, the cordless route is worth the extra planning.
Frequently Asked Questions
Can I cut a dado with a router?
Yes. A dado is a flat-bottomed groove, and a router cuts one with a straight or fluting bit: the bit width sets the groove width and the router depth setting sets how deep it goes. A plunge router is the better choice because it lowers the bit to full depth at the start of the cut, which is the only way to cut a stopped dado without breaking through the surface.
Do I need a plunge router for dados?
You need one for stopped dados, which end inside the board. A plunge base lowers the bit to full depth at the start of the cut so there is no entry ramp. For through dados that run off the board edge, a fixed base router is enough because you can start the cut at the edge and ramp in.
What router bit is best for dado cuts?
A straight bit, also called a fluting bit, with a flat bearing on the bottom. It cuts a clean square-bottomed groove and the bit width sets the dado width. For wide or deep grooves prefer a half-inch shank over a quarter-inch shank, because larger bits displace heat better and resist deflection in a deep cut. A rabbet bit handles edge work on the same groove.
What router bit to use for a plunge cut?
For a stopped dado or a plunge cut, use a straight bit in the collet and set the depth with the turret or winder rather than the bit. A half-inch shank is the stronger choice for wide grooves. Keep the bearing or shank fully seated in the collet, and always clamp the workpiece before bringing the bit to full depth.
Is a cordless plunge router strong enough for dado work?
For standard joinery depth in softwood, plywood and hardwood, a modern brushless cordless plunge router is strong enough. The DeWalt 20V MAX XR model in this roundup delivers 2-1/4 peak HP and ran both quarter-inch and half-inch shank bits in our testing. The limitation is runtime rather than power, so carry a second battery for long sheets of groove work.
Our Verdict on the Best Plunge Routers for Dadoes in 2026
After all of this, the Bosch 1617EVSPK is the router we would put in a workshop for dado work and keep there. Nearly 5,000 reviews at 4.8 stars, a 2.25 HP motor that will not bog, both bases in the box, and a microfine depth adjustment fine enough to make a stopped groove repeatable.
Buy the SKIL RT1322-00 if you want the same class of capability for less money and prefer a machine that tells you which speed to run. Buy the DeWalt DW618PKB if your project is stopped dados in a matched set and you care most about depth repeatability and dust capture.
Reach for the Bosch Colt if your dados are shallow and small, the Triton TRA001 if you want table capability and the strongest motor, and the DeWalt DCW620B if the work happens away from a bench. The three entry-level kits are honest light-duty machines, and we have labelled them that way rather than pretending otherwise.
Whatever you choose, the depth is set before the cut, the bit is a half-inch shank where you can, and the workpiece is clamped. Those three habits do more for a clean dado than any router on this list.
